4. Press the “Force” button to force a trigger signal, which is mainly applied to the “Normal” and “Single”
trigger modes.
11. How to Set the Vertical System
The VERTICAL CONTROLS includes three menu buttons such as CH1 MENU, CH2 MENU and Math, and
four knobs such as VERTICAL POSITION, VOLTS/DIV (one group for each of the two channels).
Setting of CH1 and CH2
Every channel has an independent vertical menu and each item is set respectively based on the channel.
11.1. To turn waveforms on or off (channel, math)
Pressing the CH1 MENU, CH2 MENU, and Math buttons have the following effect:
* If the waveform is off, the waveform is turned on and its menu is displayed.
* If the waveform is on and its menu is not displayed, its menu will be displayed.
* If the waveform is on and its menu is displayed, the waveform is turned off and its menu goes away.

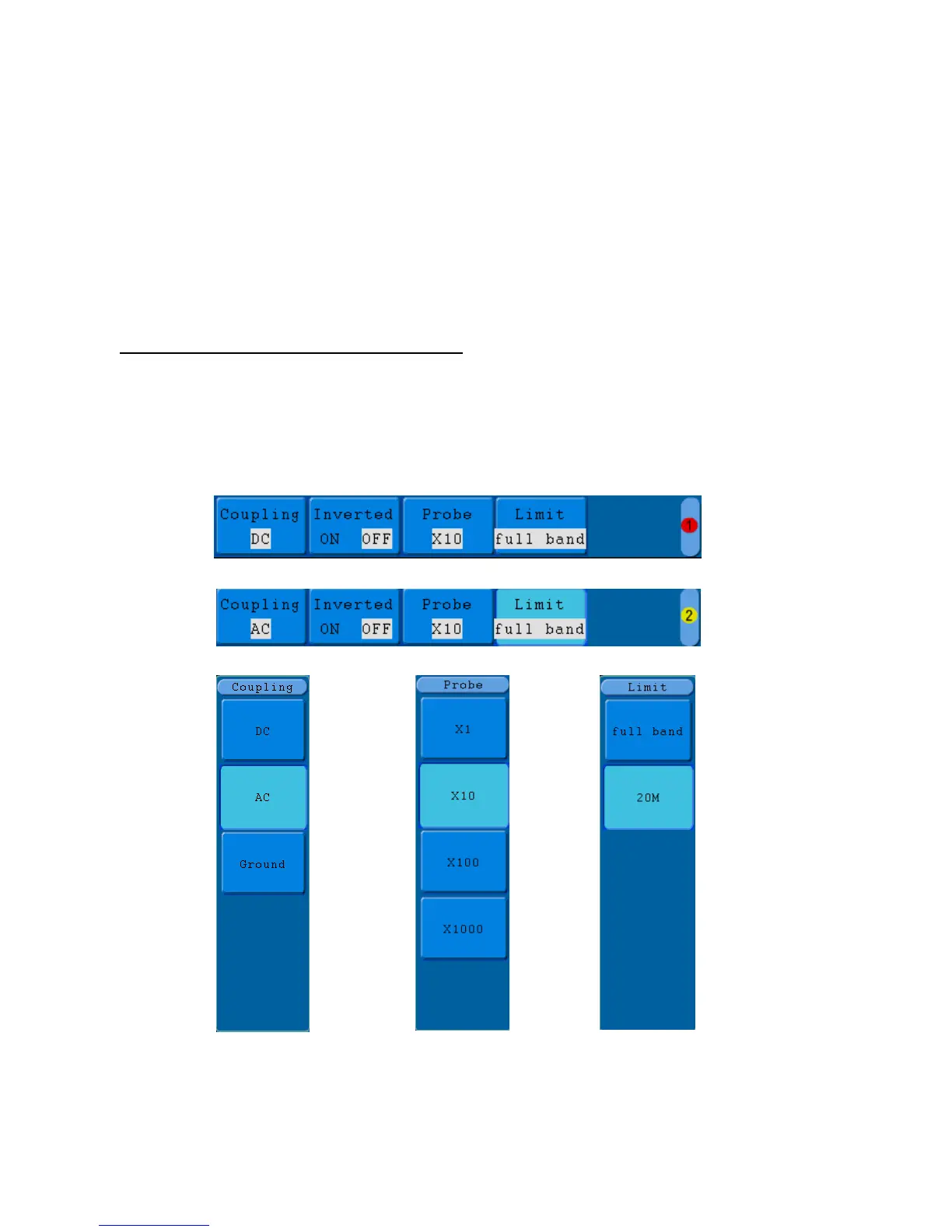

CH1 menu
CH2 menu
Couple setting Probe setting Limit setting
Fig. 14 Channel Setting Menu
-106-
