PeakTech 1245 User Manual

23. XY Format
This format is only applicable to Channel 1 and Channel 2. After the XY display format is selected, Channel 1
is displayed in the horizontal axis and Channel 2 in the vertical axis; the oscilloscope is set in the un-triggered
sample mode: the data are displayed as bright spots.
The operations of all control knobs are as follows:
* The Vertical VOLTS/DIV and the VERTICAL POSITION knobs of Channel 1 are used to set the horizontal
scale and position.
* The Vertical VOLTS/DIV and the VERTICAL POSITION knobs of Channel 2 are used to set the vertical
scale and position continuously.
The following functions can not work in the XY Format:
* Reference or digital wave form
* Cursor
* Time base control
* Trigger control
* FFT
Operation steps:
1. Press the Display button and call out the Display Set Menu.
2. Press the H3 menu selection button to set XY Mode ON. The display format is changed to be XY mode
(see Fig. 46).

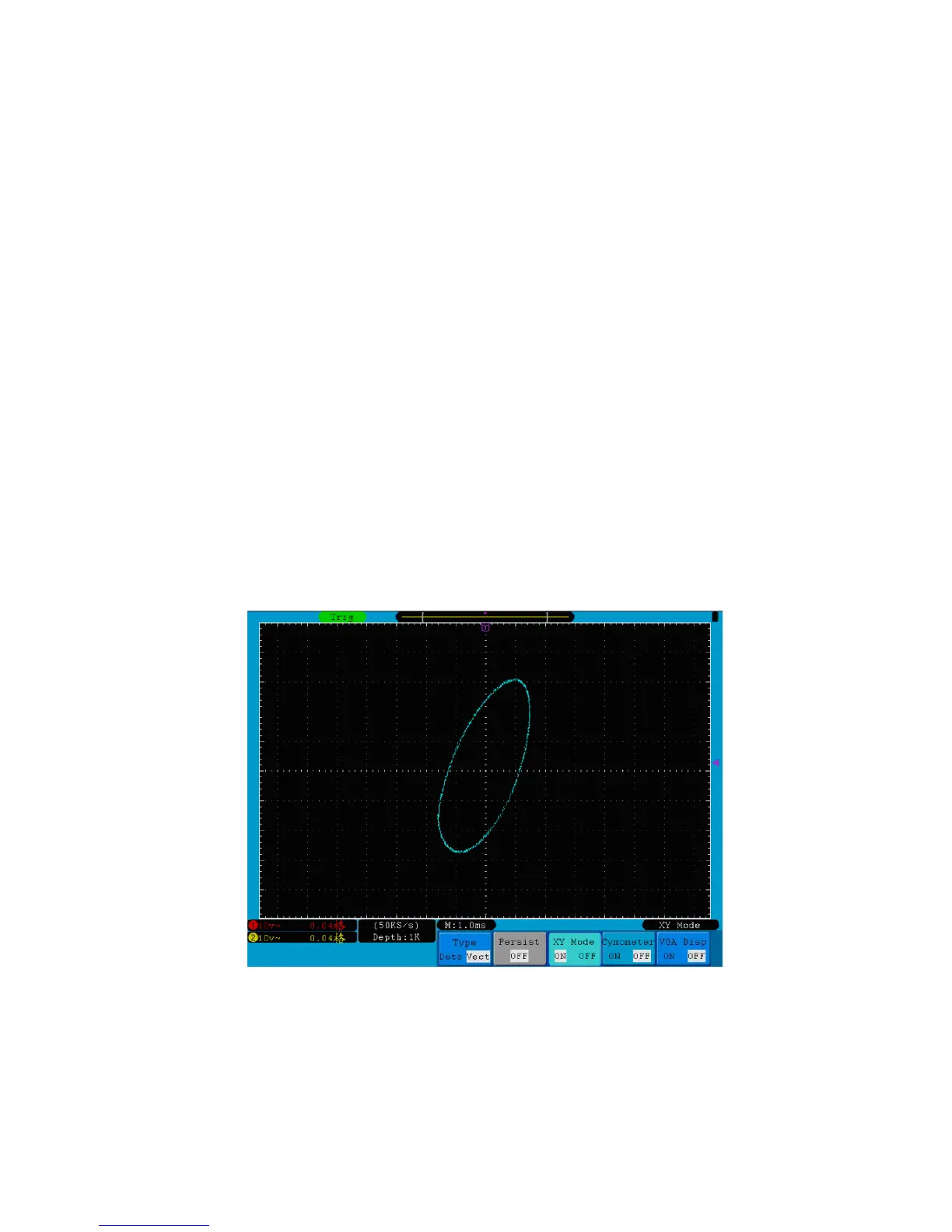

Fig. 46 XY Display Mode
-131-
