The description of the cursor measurement menu is shown as the following table:
Function Menu Setting Description
Type
OFF
Voltage
Time
Switch off the cursor measurement.
Display the voltage measurement cursor and menu.
Display the time measurement cursor and menu.
Source
CH1
CH2
Display the channel generating the waveform to which the cursor
measurement will be applied.
When carrying out the cursor measurement, the position of Cursor 1 can be adjusted with the VERTICAL
POSITION knob of Channel 1, and that of Cursor 2 can be adjusted with the VERTICAL POSITION knob of
Channel 2.
Perform the following operation steps for the voltage cursor measurement of the channel CH1:
1. Press Cursor and recall the Cursor Measure menu.
2. Press the H2 button and choose CH1 for Source.
3. Press the H1 button, the Type menu will display at the right of the screen. Then press the F2 button to
choose Voltage for Type, with two purple dotted lines displayed along the horizontal direction of the
screen, which indicating Cursor1 and Cursor2.
4. According to the measured waveform, adjust the positions of Cursor1 and Cursor2 by turning the
VERTICAL POSITION knob of CH1 and CH2. Cursor increment window at the left bottom of waveform
shows absolute value of D-value of cursor 1 and cursor 2 and the present position of the two cursors. (see
Fig. 72).

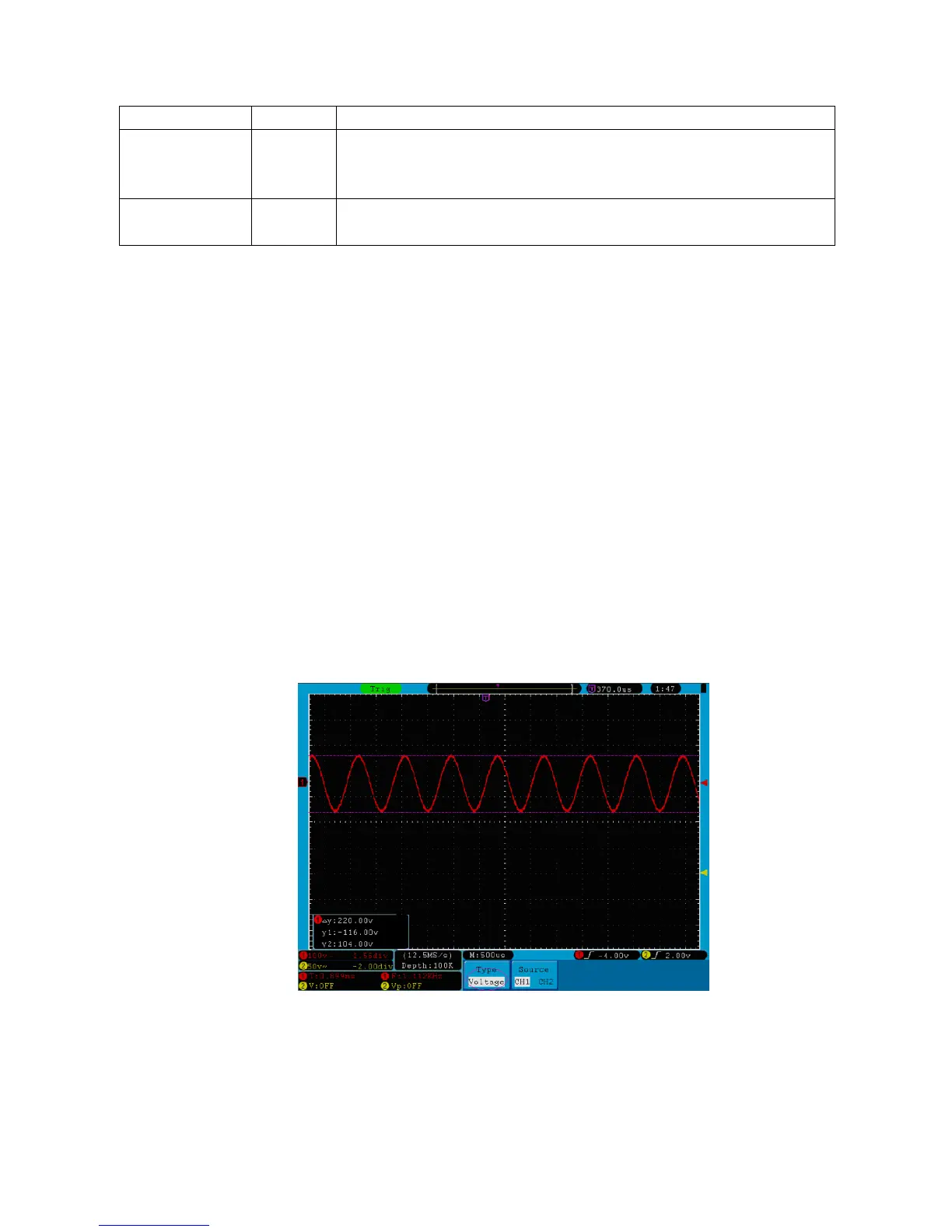

Fig. 72 Waveform of Voltage Cursor Measurement
-152-
