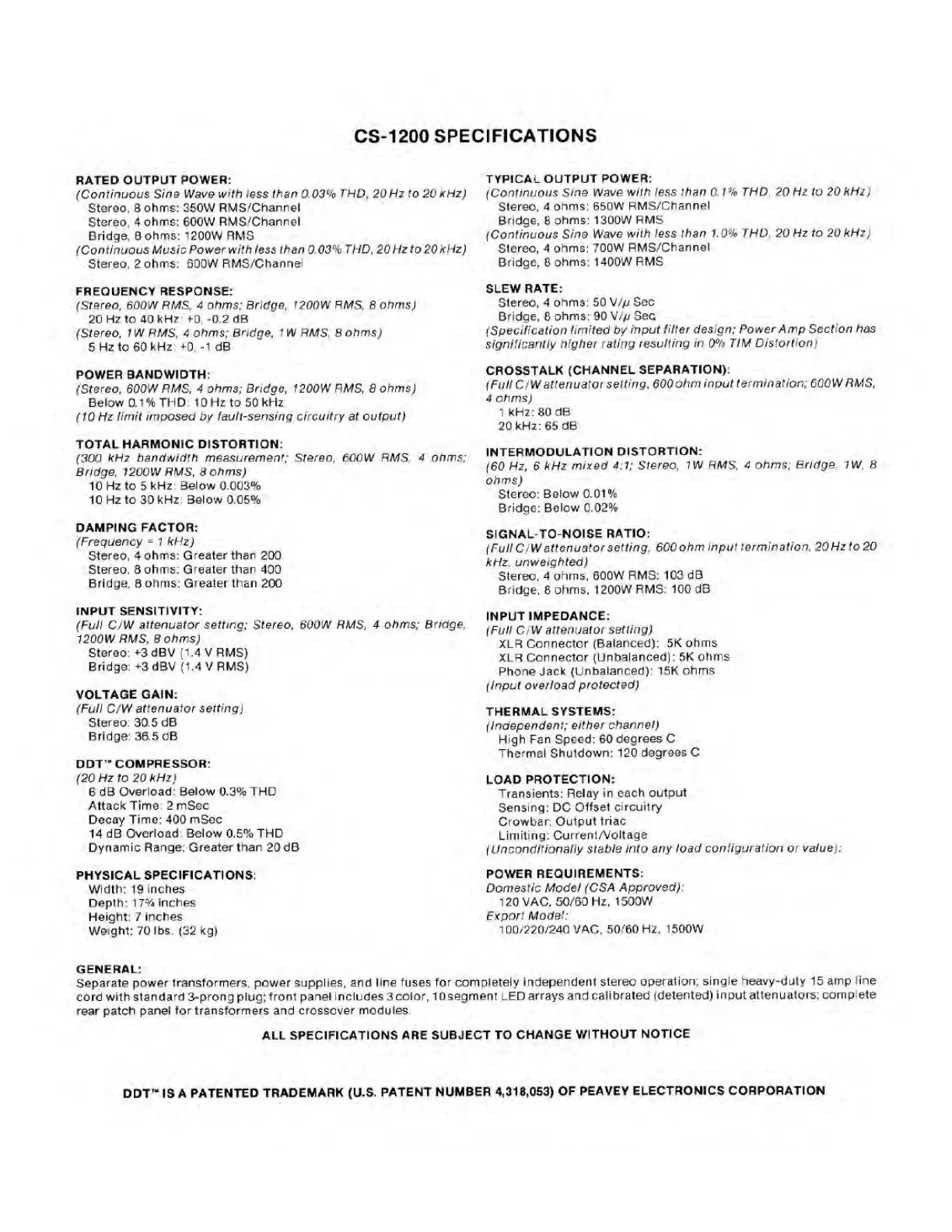

CS-1200 SPECIFICATIONS
RATED OUTPUT POWER:
(Continuous Sine Wave with less than 0.03% THD, 20Hz to 20 kHz)
Stereo, 8 ohms: 350W RMS/Channel
Stereo, 4 ohms: 600W RMS/Channel
Bridge, 8 ohms: 1200W RMS
(Continuous Music Power with less than 0.03% THD, 20 Hz to 20 kHz)
Stereo, 2 ohms: 600W RMS/Channel
FREQUENCY RESPONSE:
(Stereo, 600W RMS, 4 ohms; Bridge, 1200W RMS, 8 ohms)
20 Hz to 40 kHz +0, -0.2 dB
(Stereo, 1W RMS, 4 ohms; Bridge, T W RMS. 8 ohms)
5 Hz to 60 kHz: +0, -1 dB
POWER BANDWIDTH:
(Stereo, 600W RMS, 4 ohms; Bridge, 1200W RMS, 8 ohms)
Below 0.1% THD 10 Hz to 50 kHz
(10 Hz limit imposed by fault-sensing circuitry at output)
TOTAL HARMONIC DISTORTION:
(300 kHz bandwidth measurement; Stereo, 6001V RMS. 4 ohms;
Bridge, 1200W RMS. 8 ohms)
10 Hz to 5 kHz: Below 0.003%
10 Hz to 30 kHz: Below 0.05%
DAMPING FACTOR:
(Frequency = 7 kHz)
Stereo, 4 ohms: Greater than 200
Stereo. 8 ohms: Greater than 400
Bridge. 8 ohms: Greater than 200
INPUT SENSITIVITY:
(Full C/W attenuator setting; Stereo, 600W RMS, 4 ohms; Bridge,
1200W RMS, 8 ohms)
Stereo: -*-3dBV (1.4 V RMS)
Bridge: +3dBV (1.4 V RMS)
VOLTAGE GAIN:
(Full C/W attenuator setting)
Stereo: 30.5 dB
Bridge: 36.5 dB
DDT' - COMPRESSOR:
(20 Hz to 20 kHz)
6 dB Overload: Below 0.3% THD
Attack Time: 2 mSec
Decay Time: 400 mSec
14 dB Overload: Below 0.5% THD
Dynamic Range: Greater than 20 dB
PHYSICAL SPECIFICATIONS:
Width: 19 inches
Depth: 17% inches
Height: 7 inches
Weight: 70 lbs. (32 kg)
TYPICAL OUTPUT POWER:
(Continuous Sine Wave with less than 0.1% THD. 20 Hz to 20 kHz)
Stereo, 4 ohms: 650W RMS/Channel
Bridge, 8 ohms: 1300W RMS
(Continuous Sino Wave with less than 1.0% THD , 20 Hz to 20 kHz)
Stereo, 4 ohms: 700W RMS/Channel
Bridge, 8 ohms: 1400W RMS
SLEW RATE:
Stereo, 4 ohms: 50 M/p Sec
Bridge, 8 ohms: 90 V/// Sec
(Specification limited by input filter design; Power Amp Section has
significantly higher rating resulting in 0% TIM Distortion)
CROSSTALK (CHANNEL SEPARATION):
(Full C/W attenuator setting, 600 ohm input termination; 600W RMS,
4 ohms)
1 kH2: 80 dB
20 kHz: 65 dB
INTERMODULATION DISTORTION:
(60 Hz, 6 kHz mixed 4:1; Stereo, 7 W RMS, 4 ohms; Bridge 7 W, 8
ohms)
Stereo: Below 0.01%
Bridge: Below 0.02%
SIGNAL-TO-NOISE RATIO:
(Full C/W attenuator setting, 600 ohm input termination, 20 Hz to 20
kHz. unweighted)
Stereo. 4 ohms. 600W RMS: 103 dB
Bridge. 8 ohms. 1200W RMS: 100 dB
INPUT IMPEDANCE:
(Full C/W attenuator setting)
XLR Connector (Balanced): 5K ohms
XLR Connector (Unbalanced): 5K ohms
Phone Jack (Unbalanced): 15K ohms
(Input overload protected)
THERMAL SYSTEMS:
(Independent; either channel)
High Fan Speed: 60 degrees C
Thermal Shutdown: 120 degrees C
LOAD PROTECTION:
Transients: Relay in each output
Sensing: DC Offset circuitry
Crowbar: Output triac
Limiting: Current/Voltage
(Unconditionally stable into any load configuration or value j:
POWER REQUIREMENTS:
Domestic Model (CSA Approved):
120 VAC. 50/60 Hz. 1500W
Export Model:
100/220/240 VAC. 50/60 Hz. 1500W
GENERAL:
Separate power transformers, power supplies, and line fuses for completely independent stereo operation; single heavy-duty 15 amp line
cord with standard 3-prong plug; front panel includes 3color, 1 osegment LED arrays and calibrated (detected) input attenuators; complete
rear patch panel for transformers and crossover modules.
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
DDT'“ IS A PATENTED TRADEMARK (U.S. PATENT NUMBER 4,318,053) OF PEAVEY ELECTRONICS CORPORATION
