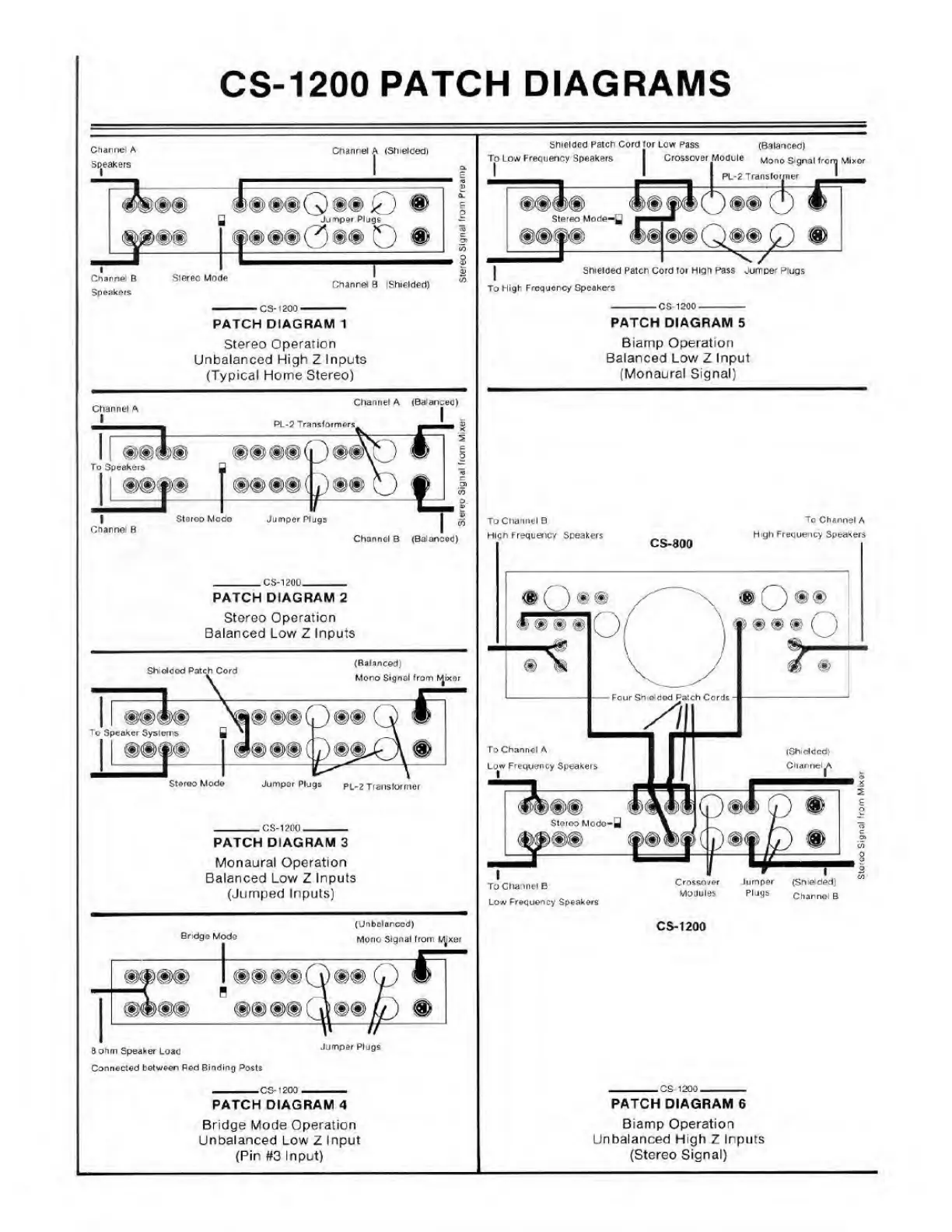

CS-1200 PATCH DIAGRAMS
Channel B
Speakers
Channel 8 iShielded)
-CS-1200-
PATCH DIAGRAM 1
Stereo Operation
Unbalanced High Z Inputs
(Typical Home Stereo)
Shielded Patch Cord for High Pass Jumper Plugs
To High Frequency Speakers
-CS-1200-
PATCH DIAGRAM 5
Biamp Operation
Balanced Low Z Input
(Monaural Signal)
Charnel B
StorooMode Jumper Plugs
Channel B
1 -
(Balanced)
PATCH DIAGRAM 2
Stereo Operation
Balanced Low Z Inputs
To Channel B
High f requency Speakers
CS-800
To Channel A
High Frequency Speakers
Shielded Patch Cord
(Balanced)
T-. \
Mono Signal from k^ixor
Stereo Mode Jumper Plugs PL-2 Transforr
-CS-1200-
PATCH DIAGRAM 3
Monaural Operation
Balanced Low Z Inputs
(Jumped Inputs)
To Channel A
Low Frequency Speakers
(Shielded)
Channel^
To Channel B
Low Frequency Speakers
Crossover Jumper (Shielded)
Modules Plugs Channel B
Bridge Mode
(Unbalanced)
Mono Signal from l^ixer
CS-1200
_CS-1200-
PATCH DIAGRAM 6
Biamp Operation
Unbalanced High Z Inputs
(Stereo Signal)
Stereo
Signal
from
Mixer

Peavey CS 1200 Specifications

General

Channels	2
Signal to Noise Ratio	> 100 dB
Input Impedance	20k ohms balanced, 10k ohms unbalanced
Weight	35 lbs
Dimensions	3.5" H x 19" W x 15.25" D
