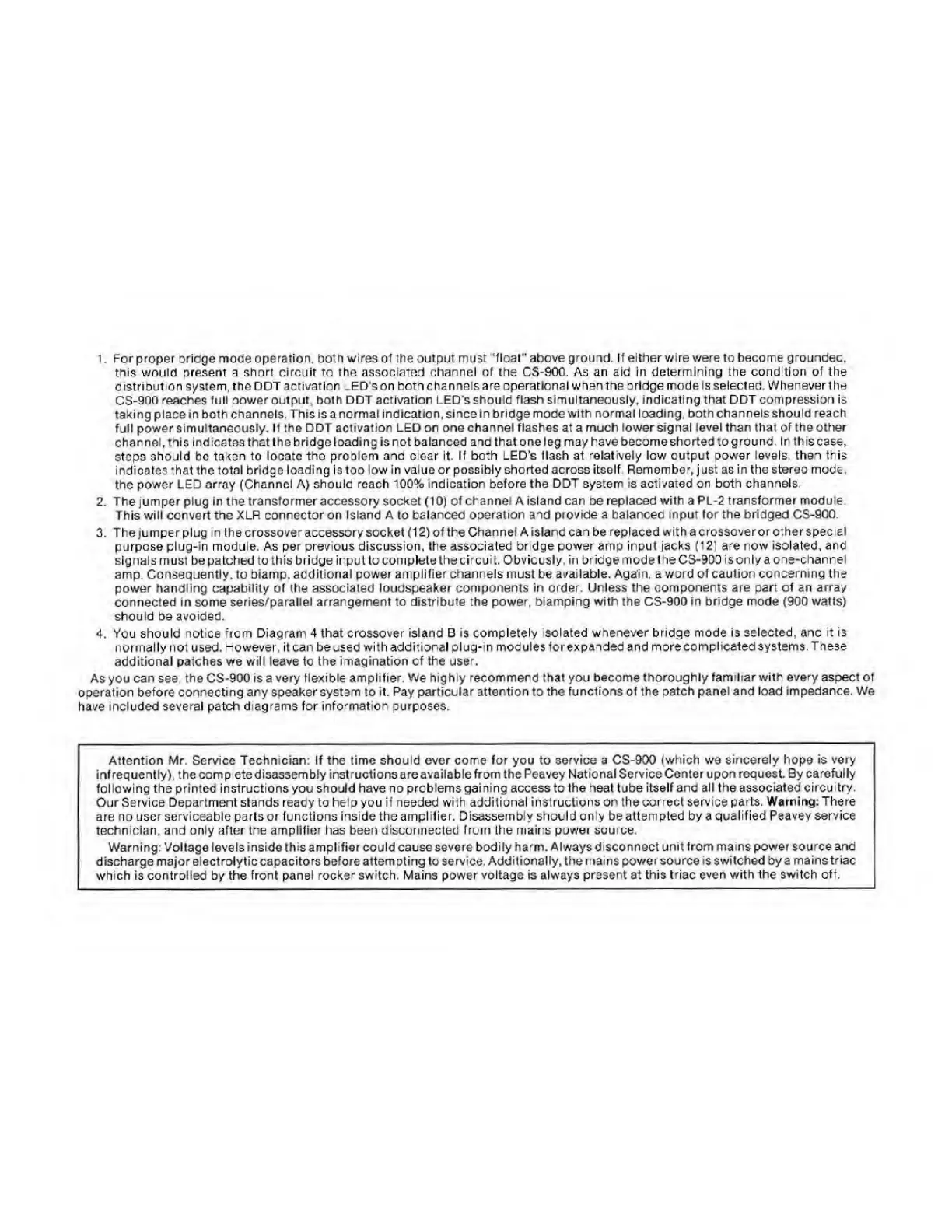

Page #10 background imageLoading...
Page #10 background image
1.
For
proper
bridge
mode
operation,
Doth
wires
of
the
output
must
"float”
above
ground.
If
either
wire
were
to
become
grounded,
this
would
present
a
short
circuit
to
the
associated
channel
of
the
CS-900.
As
an
aid
In
determining
the
condition
of
the
oistrlDution
system,
the
DDT
activation
LED's
on
botn
channels
are
operational
when
the
bridge
mode
is
selected,
Wheneverthe
CS-900
reaches
full
power
output,
both
DOT
activation
LED's
should
flash
simultaneously,
Indicating
that
DDT
compression
Is
taking
placein
both
channels.
This
1$
a
normal
indication,
since
in
bridge
mode
with
normal
loading,
both
channels
should
reach
ful
I
power
simultaneously.
If
the
DDT
activation
LED
or
orte
channel
flashes
at
a
much
lower
signal
level
lhan
that
of
the
other
channel,
this
indicates
that
Ihe
bridge
loading
is
not
balanced
and
that
one
leg
may
have
become
shorted
to
ground.
In
this
case,
steps
should
be
taken
to
locate
the
problem
and
clear
it.
If
both
LED’s
Hash
at
relatively
low
output
power
levels,
then
this
indicates
that
the
total
bridge
loading
is
too
low
in
value
or
possibly
shorted
across
Itself
Remember,
just
as
in
the
stereo
mode,
the
power
LED
array
(Channel
A)
should
reach
100%
indication
before
the
DDT
system
is
activated
on
both
channels,
2.
The
jumper
plug
In
the
transformer
accessory
socket
(10)
of
channel
A
island
car
be
replaced
with
a
PL-2
transformer
module.
This
will
convert
the
XLR
connector
on
Island
A
to
balanced
operation
and
provide
a
balanced
input
for
the
bridged
CS-9CX}.
3.
The
jumper
plug
in
the
crossover
accessory
socket
(12)
of
the
Channel
A
Island
can
be
replaced
withacrossoverorotherspecial
purpose
plug-ln
module.
As
per
previous
discussion,
the
associated
bridge
power
amp
input
jacks
(12)
are
now
isolated,
and
signals
must
be
patched
to
this
bridge
input
to
completelheclrcuit.
Obviously,
in
bridge
modelhe
CS-900
isonly
a
one-channel
amp
Consepuently.
to
biamp,
additional
power
amplifier
channels
must
be
available.
Again,
a
word
of
caution
concerning
the
power
handling
capability
of
the
associated
loudspeaker
components
In
order.
Unless
the
oomponents
are
part
of
an
array
connected
In
some
serles/parallei
arrangement
to
distribute
The
power,
blamping
with
the
CS-900
In
bridge
mode
(900
watts)
should
beavoKSed,
4.
You
should
notice
from
Diagram
4
that
crossover
island
B
is
completely
isolated
whenever
bridge
mode
is
selected,
and
it
is
normally
not
used,
However,
it
can
be
used
with
additional
plug-in
modules
forexpanded
and
more
complicated
systems.
These
additional
patches
we
will
leave
lo
the
imagination
of
the
user.
As
you
can
see,
the
CS-900
is
a
very
flexible
amplifier.
We
highly
recommend
that
you
become
thoroughly
famiiiar
with
every
aspect
of
operation
before
connecting
any
speaker
syatam
to
it.
Pay
particular
attention
to
the
functions
ot
the
patch
panel
and
load
Imp^ance.
We
have
included
several
patch
diagrams
for
information
purposes.
Attention
Mr,
Service
Technician:
If
the
time
should
ever
come
for
you
to
service
a
CS-900
(which
we
sincerely
hope
Is
very
Infrequently),
the
complete
disassembly
instruct
ions
a
re
a
vail
able
from
thePeavey
National
ServiceCenter
upon
request.
By
carefully
following
the
printed
irrstruclions
you
should
have
no
problems
gaining
access
to
the
heat
tube
itself
and
all
fhe
associated
circuitry.
Our
Service
Department
stands
ready
to
help
you
If
needed
with
additional
Instructions
on
the
correct
service
parts.
Warning:
There
are
no
user
serviceable
parts
or
functions
Inside
the
amplifier.
Disassembly
should
only
be
attempted
by
a
qualified
Peavey
service
technician,
and
only
after
the
ampllllef
has
been
disconnected
from
the
mains
power
source.
Warning:
Voltage
levels
inside
thisamptifier
could
cause
severe
bodily
harm.Alwaysdisconnect
unit
from
mams
power
source
and
discharge
major
electrolytic
capacitors
before
attempting
to
service.
Add
it
Iona
I
ly,
the
mains
power
sou
reels
switched
by
a
mains
Iriac
which
is
controlled
by
the
front
panel
rocker
switch.
Mains
power
voltage
Is
always
present
at
this
trlac
even
with
the
switch
off.
