SIAM
PING
The
Peav
0
y
CS-900
pafoh
panel
can
also
be
used
to
biamp
and/or
provide
special
equalization
capabilities
for
loudspeaker
systems.
Various
electronic
crossovers
and
special
purpose
modules
are
available
in
a
broad
range
of
frequencies
for
both
Peaveyand
non-Peavey
loudspeaker
systems.
More
complicated
systems,
such
as
stereo
biemped,
triamped,
or
even
4-way
crossover
systems
are
possible.
We
suggest
you
contact
your
Authorized
Peavey
Dealer
for
details.
A
typical
slereo
biamp
system
will
be
discussed
in
this
manual.

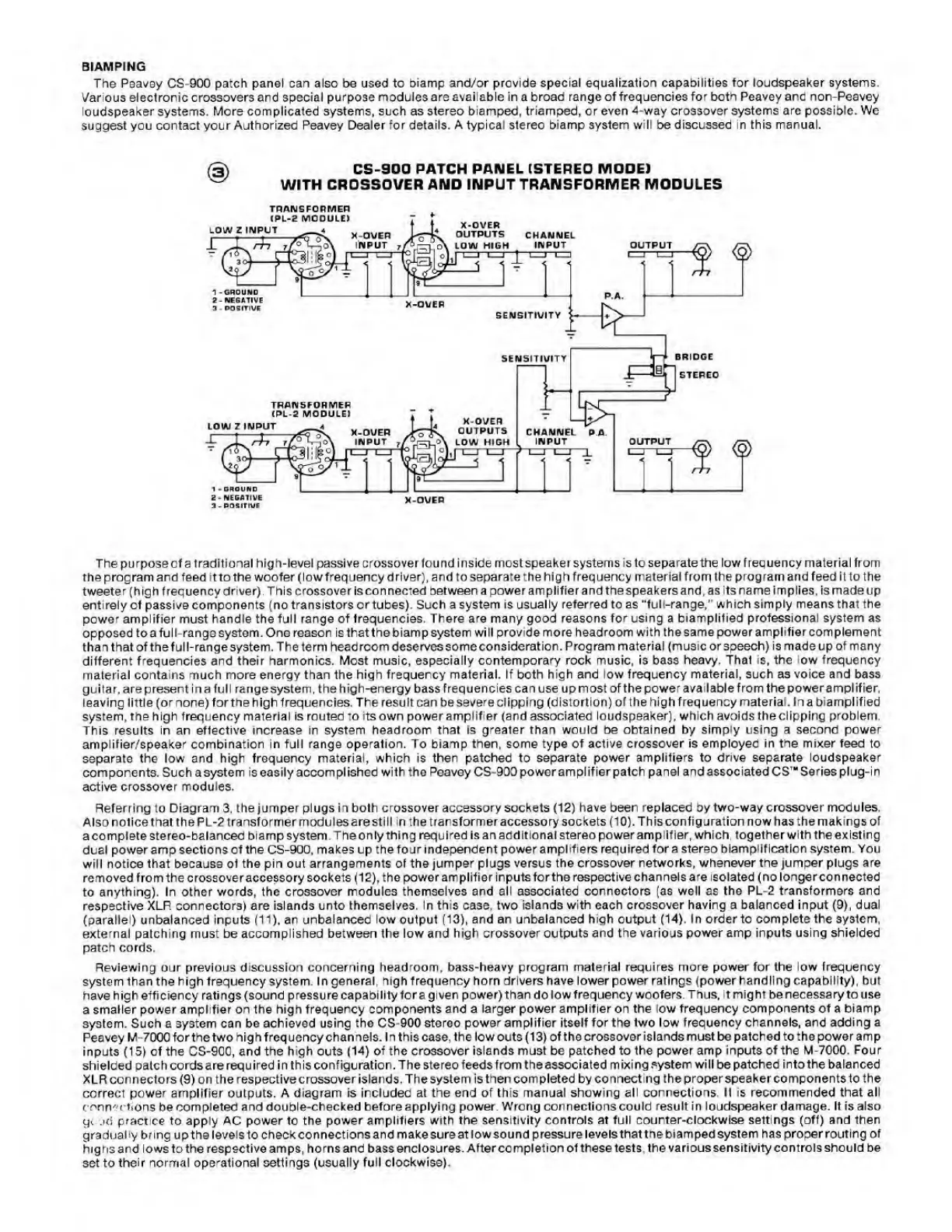

CS-900
PATCH
PANEL
(STEREO
MODE)
WITH
CROSSOVER
AMD
INPUT
TRANSFORMER
MODULES
rnANSPOCMEn
The
purposeof
a
traditional
hlgh-levelpasslvecrossoverfoundinside
most
speaker
systems
is
to
separalethe
low
frequency
material
from
the
program
and
feed
ittothe
woofer
(lowfrequency
driver),
and
to
separate
the
high
frequency
material
from
the
program
and
feed
It
to
the
tweeter
(high
frequency
driver)
This
crossover
Isconnected
between
a
powerampllfter
and
thespeakersand,
as
Itsnameimplles,
ismadeup
entirely
of
passive
components
(no
transistors
ortubes).
Such
a
system
is
usually
referred
to
as
"full-range,”
which
simply
means
that
the
power
amplifier
must
handle
the
full
range
of
frequencies.
There
are
many
good
reasons
for
using
a
biamplilied
prof^sionai
system
as
opposed
toafuH-range
system.
One
reason
Is
that
the
biamp
system
will
provide
more
headroom
with
the
same
power
amplifier
complement
than
that
ofthefull-rangesystem.
The
term
head
room
deserves
so
me
consideration.
Prog
ram
mate
rial
(music
orspeech)ismadeupof
many
different
frequencies
end
their
harmonics.
Most
music,
especially
contemporary
rock
music,
is
bass
heavy,
Thai
is,
tfie
low
frequency
material
contains
much
more
energy
than
the
high
frequency
material.
If
t«th
high
and
low
frequency
material,
such
as
voice
and
bass
guitar,
are
present
ina
full
rangesystem,
the
high-energy
bass
frequencies
can
use
upmosloflhe
power
available
from
thepowerampMfier,
leaving
little
(or
none)
forthe
high
frequencies.
The
result
can
be
severe
clipping
(dlsloriion)
of
the
high
frequency
material.
Inabiamplified
system,
The
high
frequency
material
Is
routed
to
Its
own
power
amplifier
(and
associated
loudspeaker),
which
avoids
theclipping
problem.
This
results
in
an
effective
increase
In
system
headroom
tnat
is
greater
than
would
be
obtained
by
simply
using
a
second
power
amplifier/speaker
combination
in
full
range
operation.
To
biamp
then,
some
type
of
active
crossover
Is
employed
In
the
mixer
teed
to
separate
the
low
and
high
frequency
material,
which
is
then
patched
to
separate
power
amplifiers
to
drive
separate
loudspeaker
components.
Such
a
system
ie
easily
accom
pi
iehed
with
the
Peavey
CS-900
power
amplifier
patch
panel
and
associated
OS'”
Series
plug-m
active
crossover
modules.
Referring
to
Diagram
3.
the
jumper
plugs
In
both
crossover
accessory
sockets
(12)
have
been
replaced
by
two-way
crossover
modules.
Also
notice
that
the
PL-2
transformer
modules
are
still
in
the
iransformeraccessory
sockets
(10).
Thisconfiguratlonnowhas
the
makings
of
acompfetestereo-balanceo
blamp
system.
Theonly
Thing
required
Isanadditionatstereo
power
amplifier,
which,
togetherwlththe
existing
dual
power
amp
sections
of
the
CS-900,
makes
up
the
four
Independent
power
amptifrers
requiredforasTereobiampllficatlon
system.
You
will
notice
that
because
of
the
pin
out
arrangements
of
the
jumper
plugs
versus
the
crossover
networks,
whenever
the
jumper
plugs
are
removed
fromthecrossoveraccessory
sockets
(12),
the
power
amplifier
Inputs
forthe
respective
channels
are
isolated
(nolongerconnected
to
anything).
In
other
words,
the
crossover
modules
themselves
end
ell
aseociated
connectors
(a$
well
as
the
PL-2
transformers
and
respective
XLR
connectors)
are
islands
unto
themselves.
In
this
case,
two
islands
with
each
crossover
having
a
balanced
Input
(9),
dual
(parallel)
unbalanced
inputs
(11),
an
unbalanced
low
output
(13),
and
an
unbalanced
high
output
(14).
In
order
to
complete
the
system,
external
patching
must
be
accomplished
between
the
low
and
high
crossover
outputs
and
the
various
power
amp
inputs
using
shielded
patch
cords.
Reviewing
our
previous
discussion
concerning
headroom,
bass-heavy
program
material
requires
more
power
for
the
low
Irequency
system
than
the
high
frequency
system.
In
general,
high
frequency
horn
drivers
have
lower
power
ratings
(power
handling
capability),
but
have
high
ettic
ion
cy
ratings
(sound
pressure
capability
for
a
given
power)than
do
tow
frequency
woofers.
Thus,
itnighi
be
necessary
to
use
a
smaller
power
amplifier
on
the
high
frequency
components
and
a
larger
power
amplifier
on
the
low
frequency
components
of
a
blamp
system.
Such
a
system
can
be
achieved
using
the
CS*900
stereo
power
amplifier
itself
forthe
two
low
frequency
channels,
and
adding
a
Peevey
M-7000
forthe
two
high
frequency
channels.
In
this
case,
the
low
outs
(13)
of
the
crossover
islands
must
be
patched
to
the
power
amp
inputs
(15)
of
the
CS-900,
and
the
high
outs
(14)
of
the
crossover
Islands
must
be
patched
to
the
power
amp
inputs
of
the
M-7000,
Four
shielded
patch
cords
a
re
required
I
nth
is
configuration.
The
stereo
feeds
from
the
associated
mixing
system
will
be
patched
Into
the
balanced
XLRconneclors
(9)
on
the
respecllvecrossoverislands.
The
system
is
then
completed
by
connecting
theproperspeakercomponents
lothe
correct
power
amplifier
outputs.
A
diagram
is
included
at
the
end
of
this
manual
showing
all
connections.
II
is
recommended
that
all
cnnn^n
tkons
be
completed
and
double-checked
before
applying
power.
Wrong
connectlor>8
could
result
in
loudspeaker
damage.
It
Is
also
qc
.)fi
practice
To
apply
AC
power
to
the
power
amplifiers
with
me
sensitivity
controls
at
full
counter-clcxikwlse
settings
(off)
and
then
graduahy
bring
upthelevelstc
check
connectionsand
make
sureat
low
sound
pressure
levels
that
the
biamped
system
has
properrouting
of
highs
and
lows
to
the
respective
amps,
hornsand
bass
enclosures.
Aftercompletion
ofthese
tests,
the
various
sensitivity
controls
should
be
set
to
their
normal
operational
settings
(usually
full
clockwise).
