GPS 900/1500
150V
AC Units Only
(-)
T
o negative input
terminal of speaker
(+)
T
o positive input
terminal of speaker
Switch “in” for
Bridge Mode
Input Source
All other GPS Models
(-)
T
o negative input
terminal of speaker
(+)
T
o positive input
terminal of speaker
NOTE:
Always use a balanced input source if available.
NOTE: Minimum Load
Impedance is 4 Ohms.
NOTE: Minimum Load
Impedance is 4 Ohms.
GPS
™
Series
Amplifiers

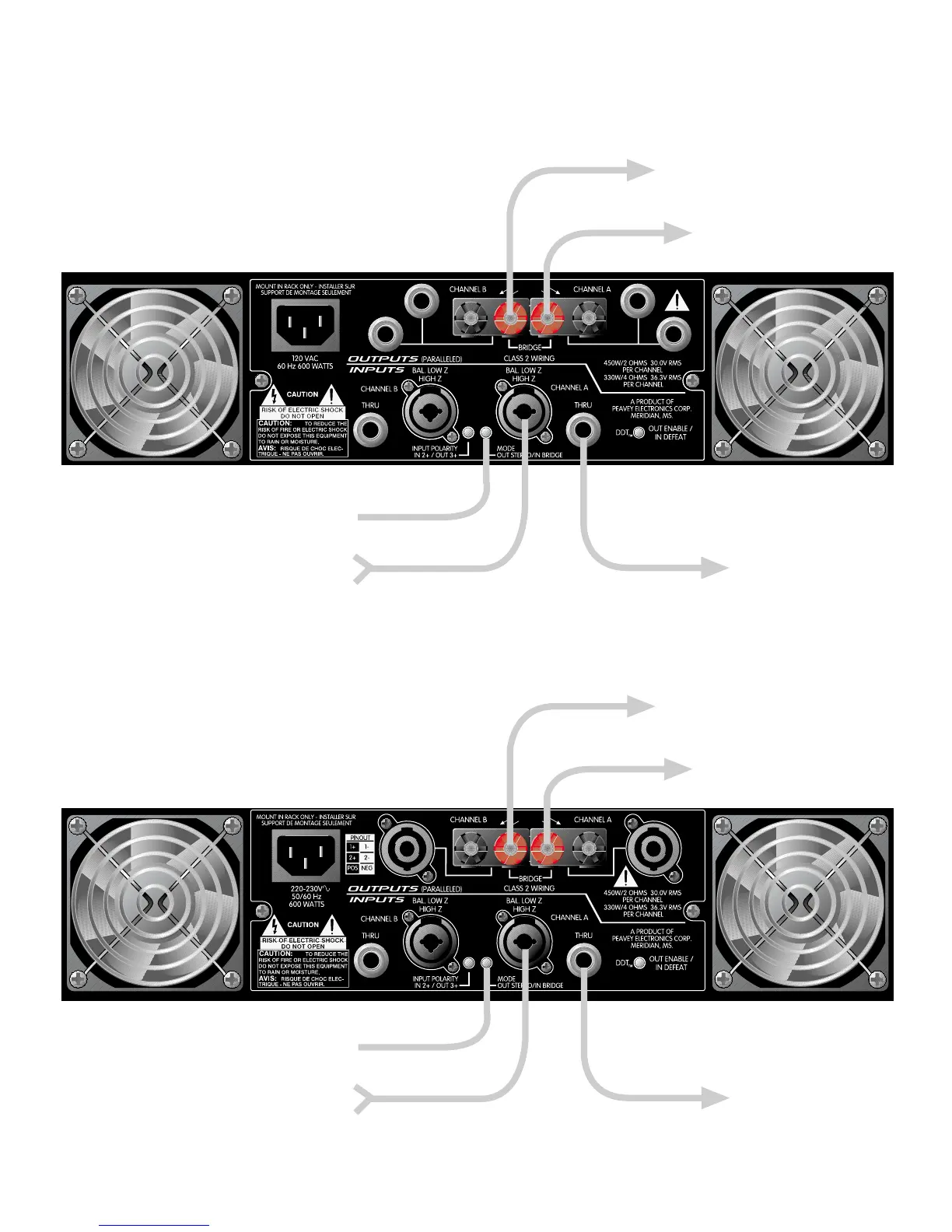

Recommended Connection for Bridged Mode
T
o Additional
Amplifier Input
Switch “in” for
Bridge Mode
Input Source
T
o Additional
Amplifier Input
12
14
Table of Contents
Power Amplifiers
3
Installation and Mounting
4
Quick Start
4
Rear Panel
5
Mode Selection
5
Input Polarity
6
Speaker Output Connectors
7
Front Panel Controls/Indicators
8
SIGNAL Leds
9
Input Gain
9
Operation Notes
9
Input Connections
10
Specifications
15
Comienzo Rápido
21
Panel Trasero
22
Selección de Modo
22
Conexiones de Entrada
27
Installation Et Montage
38
Panneau Arrière
39
Sélection de Mode
39
Connexions D'entrée
45
Fonctions de Protection
45
Protection Thermique
46
