3 of 26
ISSUED: 04-01-11 SHEET #: 203-9028-5 11-20-14
A

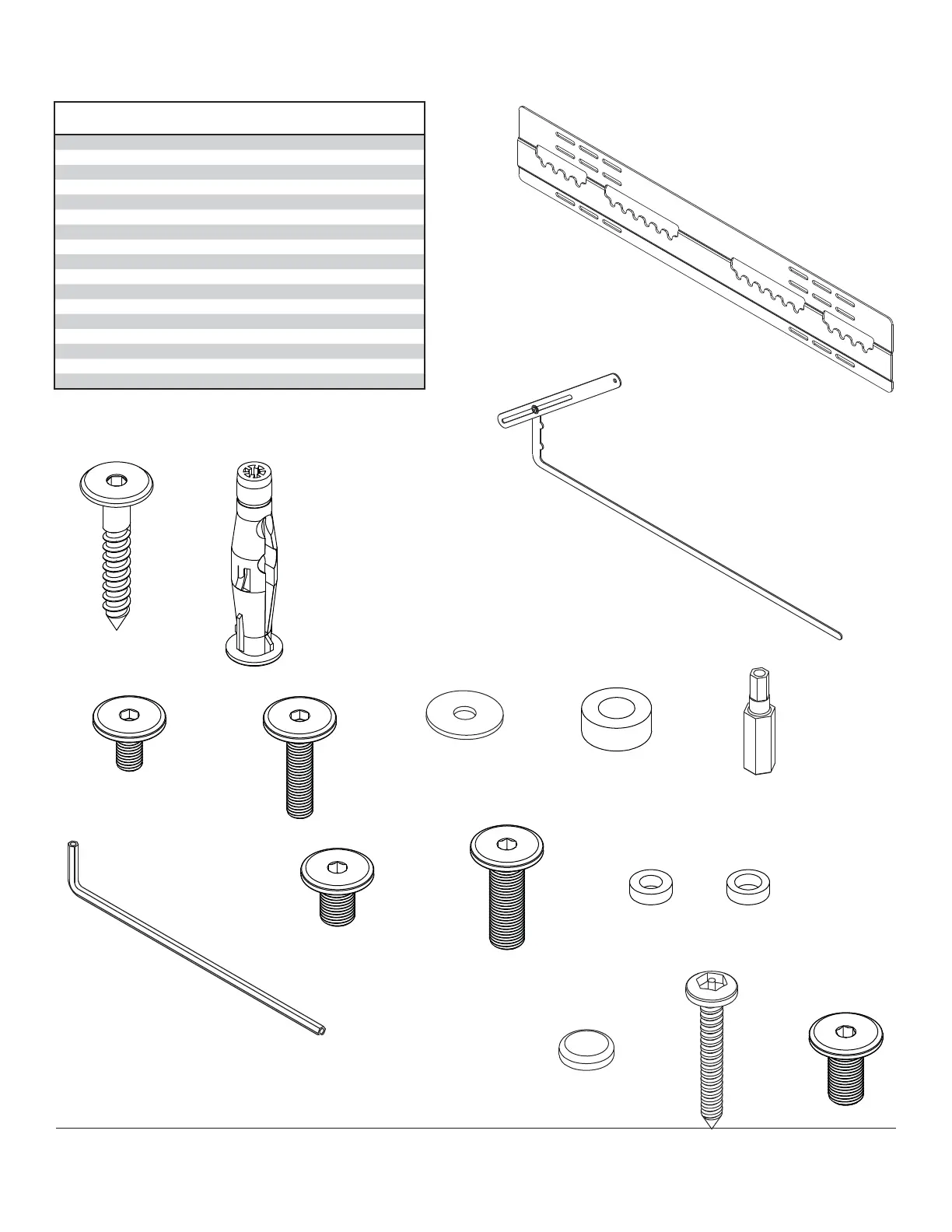

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
B
CD
G
H
I
J
K
M
N
OP
QRS
L
Parts List
Part #Description Qty
A wall plate 1 046-P1201
B locking arm 1 046-P1211
C wood screws 4 500-1090
D concrete anchors 4 590-0320
G M6 x 12mm hex screw 4 560-1734
H M6 x 25mm hex screw 4 560-1735
I .725" washer 4 540-9478
J 3/4" spacer 8 600-1215
K 4mm security driver 1 560-1133
L 4mm security allen wrench 1 560-9646
M M8 x 12mm hex screw 4 560-1736
N M8 x 25mm hex screw 4 560-1737
O M5 x 1/8" spacer 4 046-0223
P M6 x 1/8" spacer 4 046-0224
Q cloth bumper 2 570-0051
R security wood screw 1 520-1092
S M8 x 16mm hex screw 4 560-1264
