PEERLESS MI-e Series - Vent Damper

40











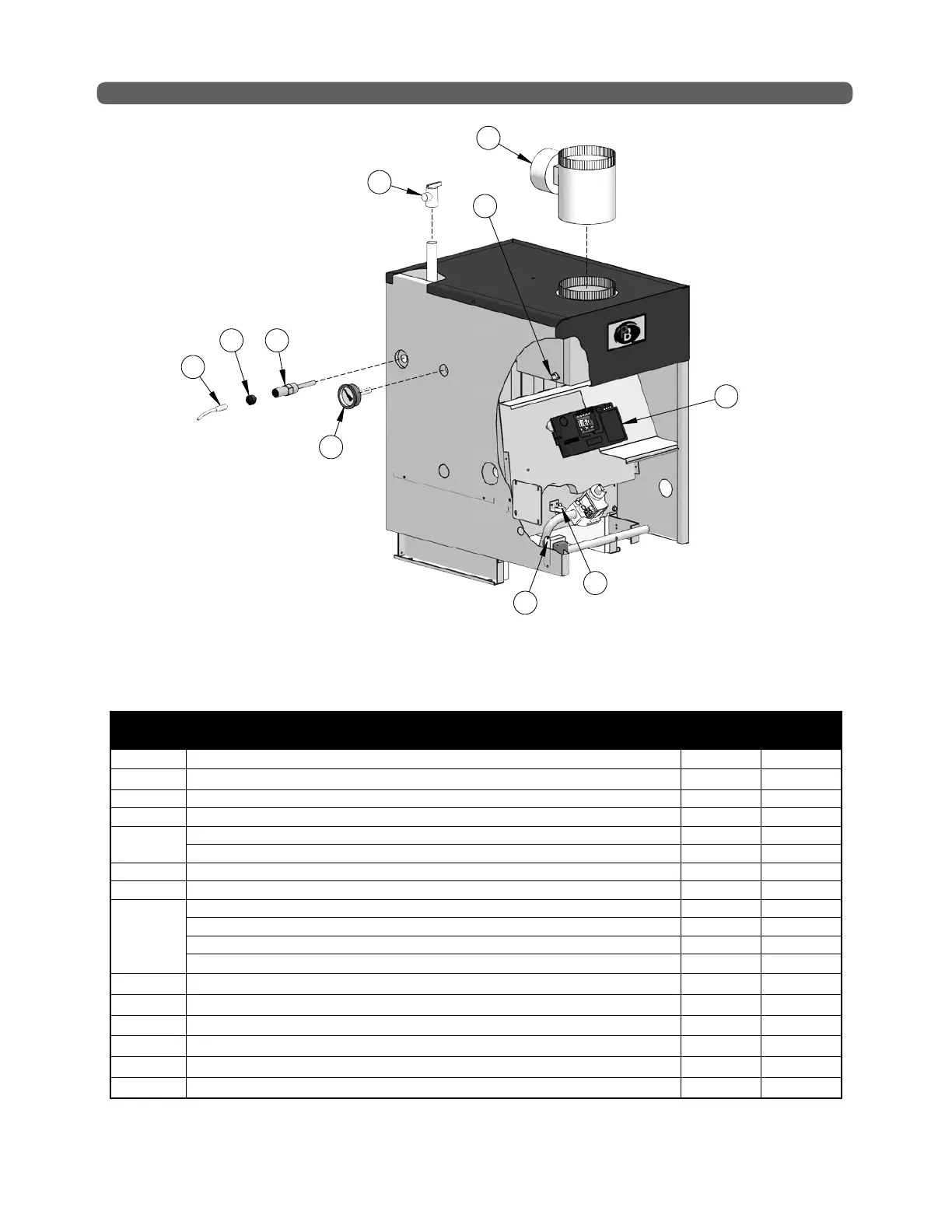

Figure 11.4: Controls/Circulator/Vent Damper
REPAIR PARTS
Table 11.3: Controls/Circulator/Vent Damper
Description
Quantity
Required
Stock
Code
15 Well Hydrolevel HydroStat 48-201 1 50723
16
Sensor for Hydrolevel HydroStat 4200 1 50361
17 Grommet Hydrolevel HydroStat 4200 (at Well) All Sizes 1 50362
18 Temperature-Pressure Gauge 1 51324
19
Safety Relief Valve, 30 PSI, Conbraco 10-408-05 1 50501
Safety Relief Valve, 50 PSI, Conbraco 10-418-10 1 51028
20 Flame Roll-Out Safety Shut-Off Switch 1 51587
21 Blocked Vent Shut-Off (Spill) Switch (230
o
F) 1 50041
22
Vent Damper – MI-e-03, MI-e-04 1 90612
Vent Damper – MI-e-05, MI-e-06 1 90613
Vent Damper – MI-e-07 1 90614
Vent Damper – MI-e-08, MI-e-09 1 90615
23
Transformer, 40VA 1 50359
24
Limit Control - Hydrolevel HydroStat 4200 1 50360
O
Wire Harness, Vent Damper, 4 pin to 6 pin 1 X7132
O
Wire Harness, Low Voltage, 9 pin 1 X7137
O
Wire Harness, Line Voltage, 5 pin 1 X7138
O
Wiring Harness Jumper (TR to D-) Robertshaw Gas Valve 1 X7141
