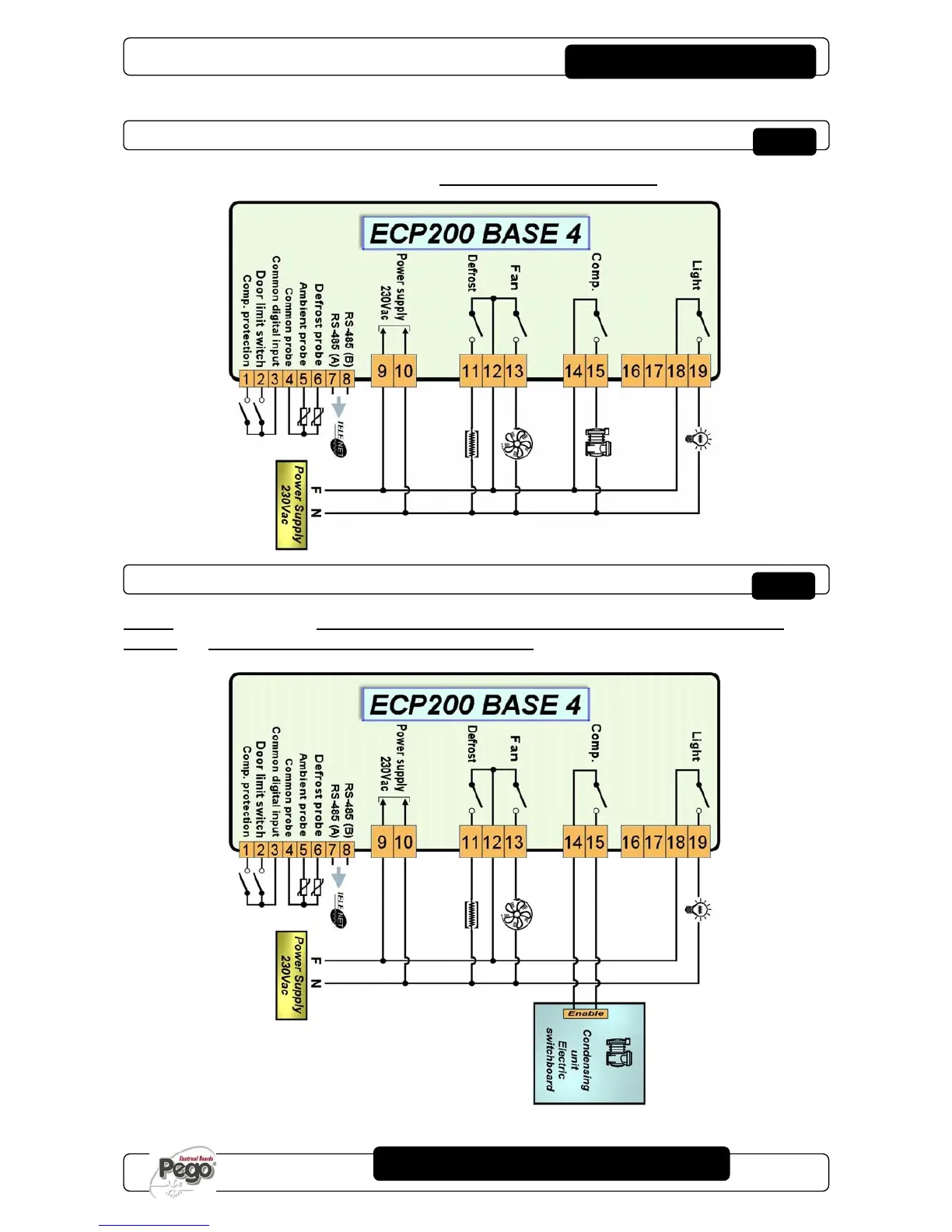

CONNECTION EXAMPLE (1) - ECP200 BASE4 /BASE4A
Connection with outputs powered for direct control of functions.
CONNECTION EXAMPLE (2) - ECP200 BASE4 /BASE4A
Mixed connection with on/off contact to enable towards condensing unit power
board and fan, light and defrost outputs powered for direct control.
