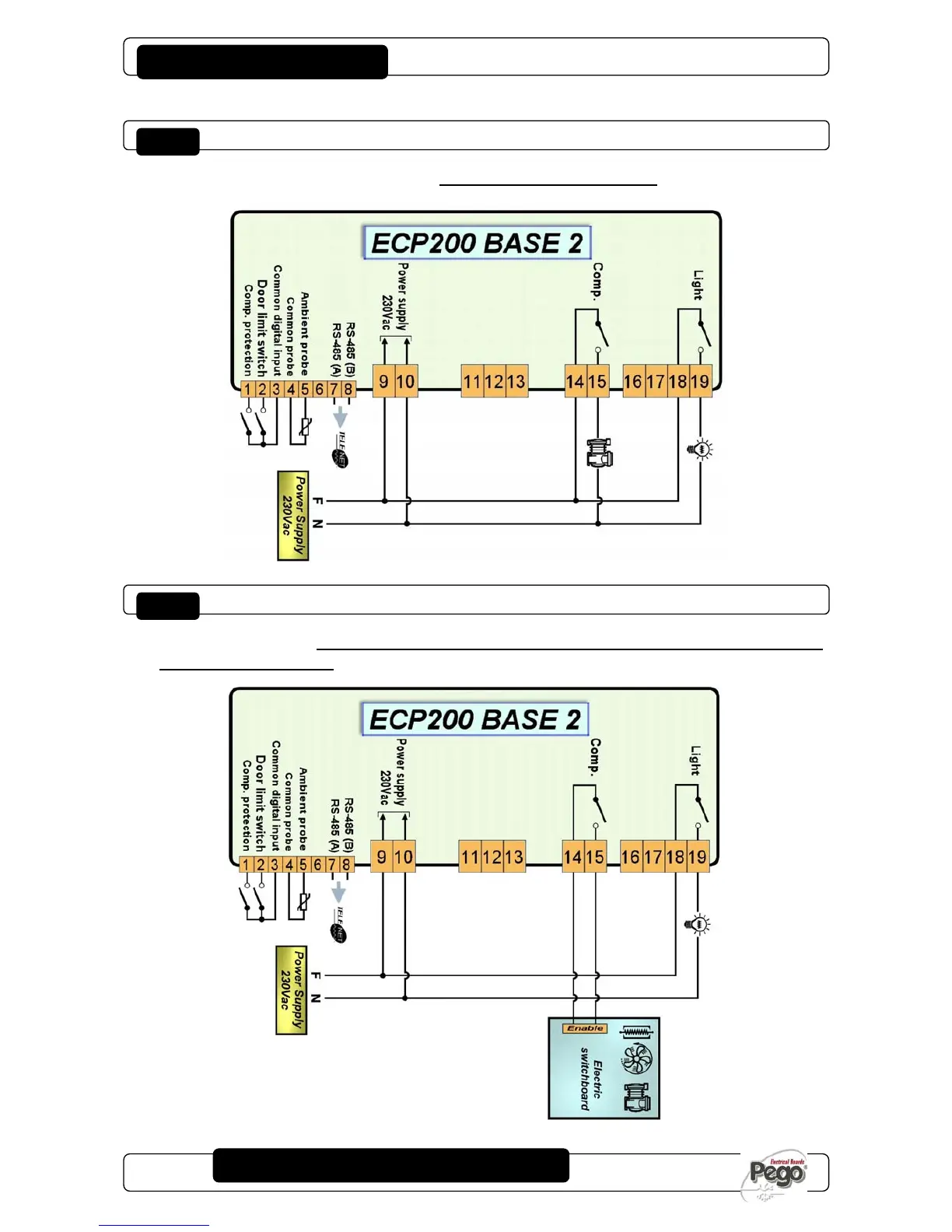

CONNECTION EXAMPLE (3) - ECP200 BASE2 /BASE2A
Connection with outputs powered for direct control of functions.
CONNECTION EXAMPLE (4) - ECP200 BASE2 /BASE2A
Mixed connection with on/off contact powered to enable towards room power board
and light output powered for direct control.
