PELLENC BATTERY 250
56_158890-D

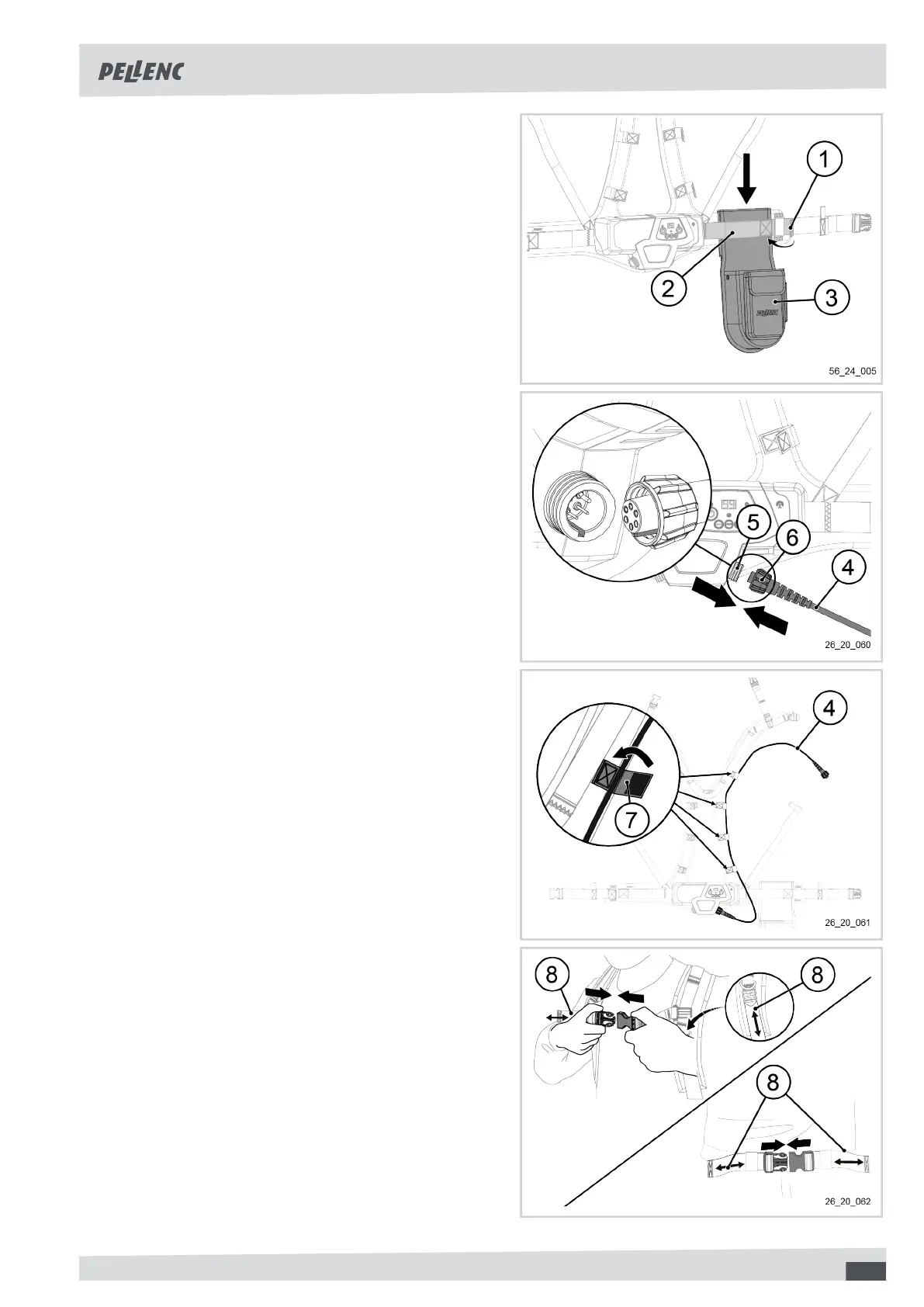

3. Install the holster (3) on the harness.
4. Position the hook-and-loop strap (1) on the holster
(3).
5. Slide the end of the hook-and-loop strap (1) into the
belt loop (2).
6. Pull and attach the hook-and-loop strap (1).
7. Align the tool power cord marker (4) with the slot in
the right-hand connector (5) of the battery.
8. Connect the tool power cord (4) to the battery on the
right connector (5) of the battery.
9. Tighten the tightening ring (6) of the tool power cord.
10. Fit the tool power cord (4) in the slots (7) of the
harness.
11. Put on the harness and adjust with the straps (8).
12. Attach the power cord to your arm using the
armband provided, see 4.7. Putting the lead and
armband in place, page 16.
