44 45|
ASSEMBLY
ASSEMBLY CONTINUED
5 Add handrail screws. Torque screws to
35 lb-ft/47 N•m.
6 Torque upright screws to
35 lb-ft/47 N•m.
7 Attach upright bolt covers.
8 Snap on upright caps.
9 Add handrail bolt covers.

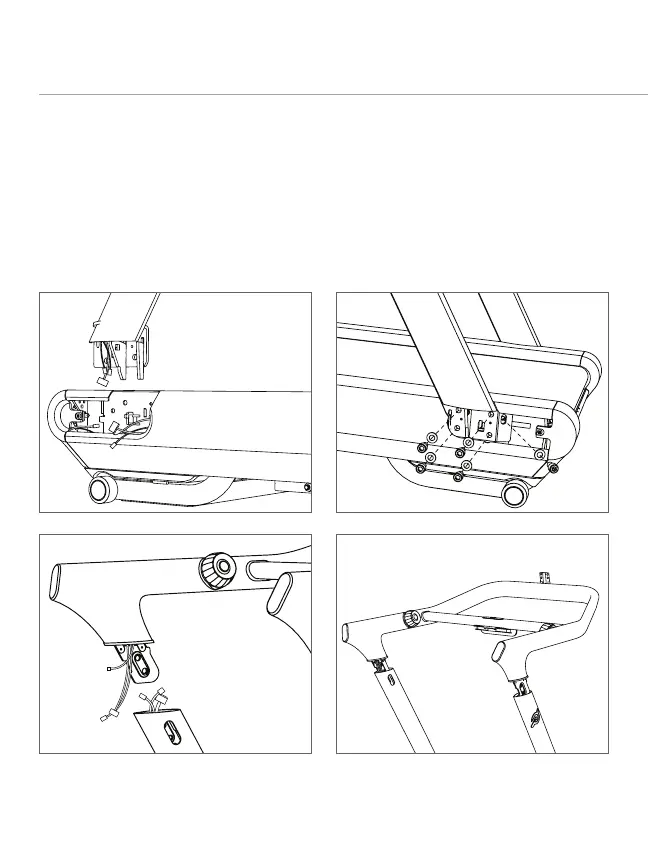

1 Connect left upright cable.
2 Add right and left uprights.
3 Connect three handrail cables.
4 Push the handrail all the way into
the uprights.
5
8 9
6-71
3
4
2
