PT395 Series Detector
Installation

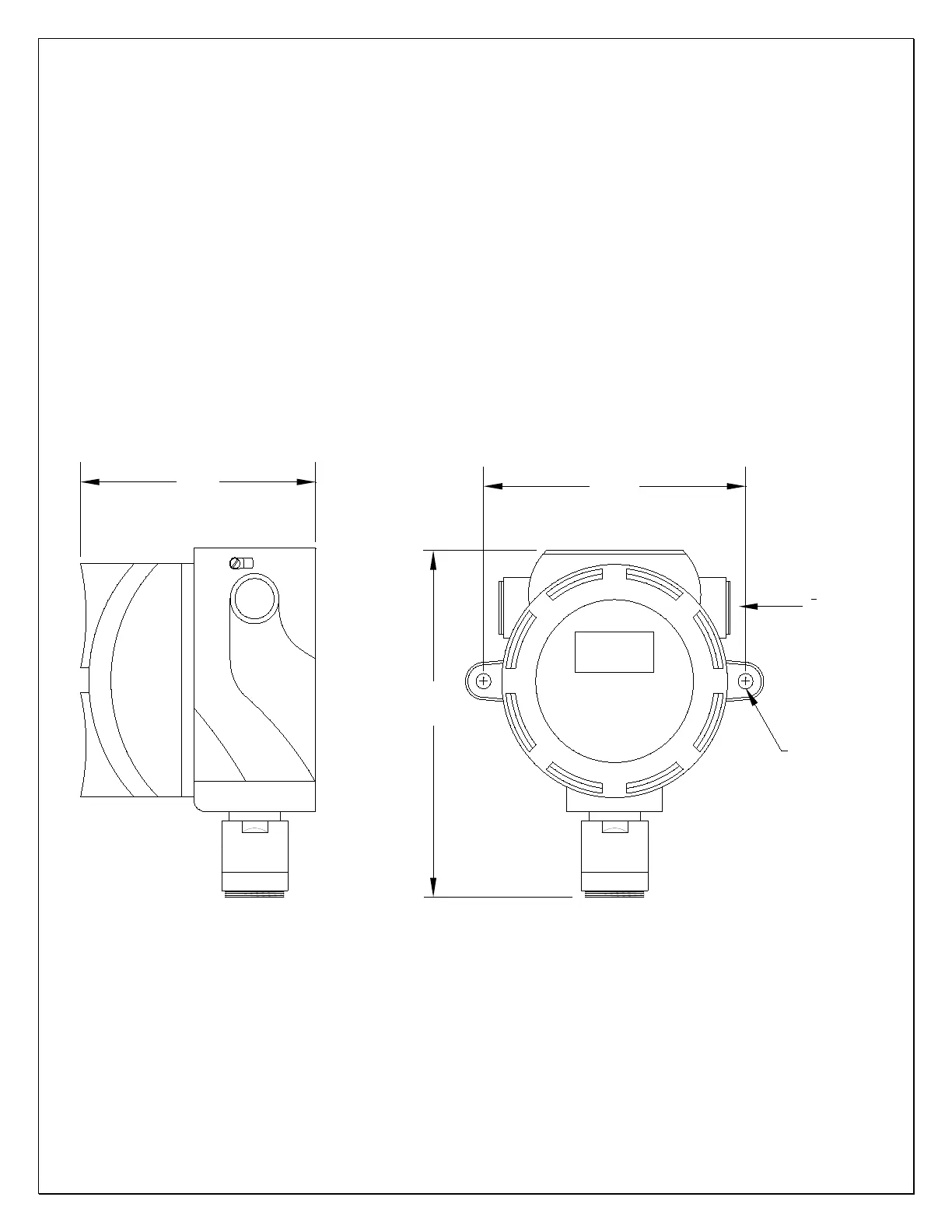

Refer to figure 3 for Detector explosion proof enclosure for mounting and conduit
connection.
The unit has 2 integral mounting holes. The unit can be mountd directly to a surfce
or to a horizontal or vertical pipe structure. An optional pipe mount bracket can be
used to mount the unit to a pipe up to 2” in diameter or cross section. Two (2)
Cable entries are provided on each side of the enclosure. Either side can be used for
the cable entry. The other side must be plugged with the one supplied with the
unit. An approved plug for hazardous location must always be used.
5.50"
7.4"
4.9"
(125mm)
(139.7mm)
(188mm)
Ø 0.3" (7.6 mm)
2 Places
3
4
" NPT Female
Both Sides
Cable Entry
3. Overall Dimensions
