Penn P266 Series User Manual

P266 Series Single-Phase Condenser Fan Speed Controls Installation Instructions 5
Low-Voltage Wiring
Figure 2 shows the P266 Series Control features under
the housing cover and the low voltage wiring diagrams
for the P266A, P266B, P266C, and P266E Type
Control models.
High-Voltage Wiring
Figure 3 shows the high voltage wiring diagrams for the
P266A, P266B, and P266C Type Control models.
Figure 4 show the high voltage wiring diagrams for the
P266E Type Control models.
Use Table 1 to determine the high voltage wiring
options available for P266A, P266B, P266C, and
P266E Type Control models.
IMPORTANT: The L2/N terminal must be
connected to line voltage in order for a P266 Series
Control to comply with the FCC and IEC Class B
radio frequency interference emissions limit.

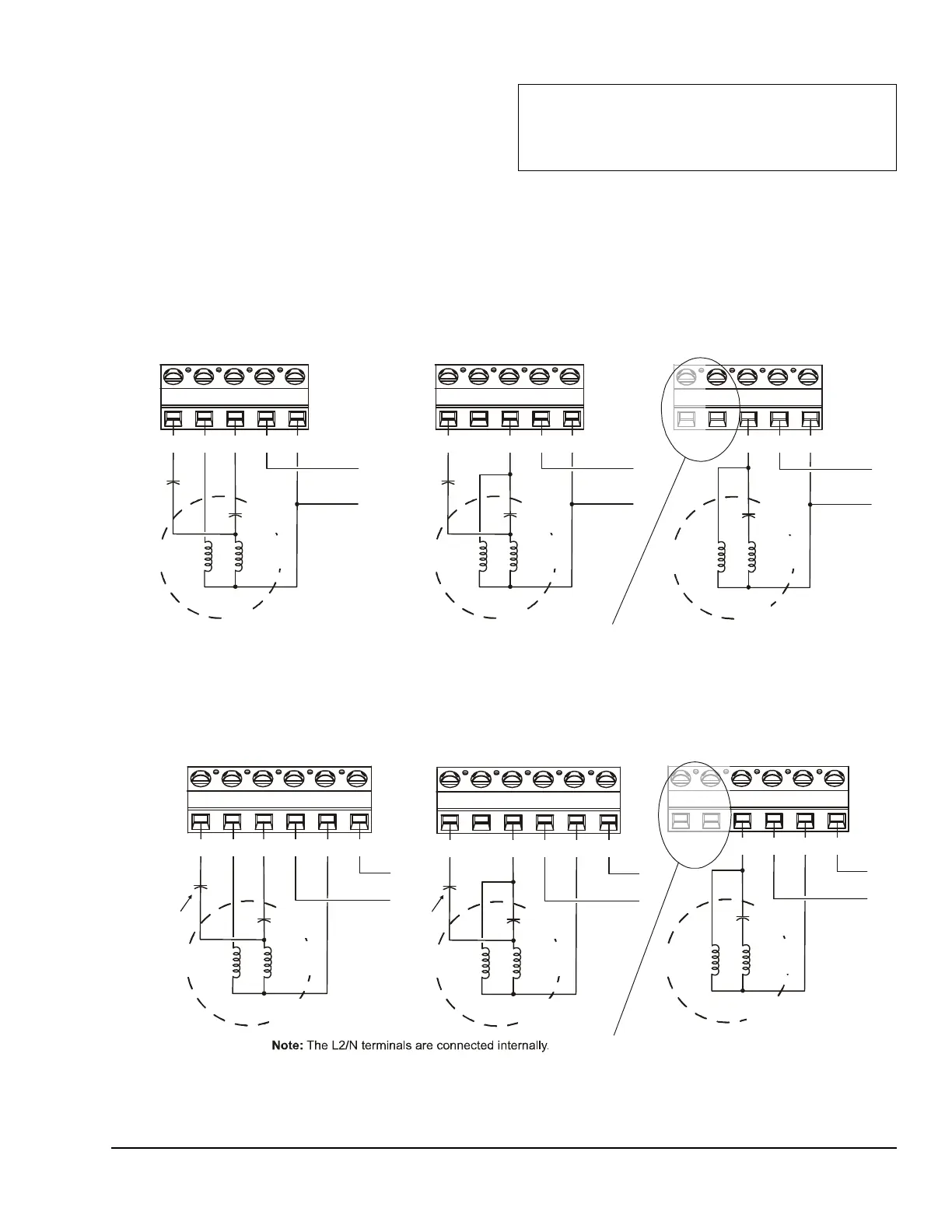

Figure 3: High Voltage Wiring Options for P266A, P266B, and P266C Type Controls
M3
M2 M1
L1
L2/N
M3 M2 M1 L1 L2/N
Optional
Low-Speed
Capacitor
(LSC)
Auxilary
Capacitor
Auxiliary
Windings
Main
Windings
PSC
Motor
Line VAC
M3 M2 M1 L1 L2/N
Optional
Low-Speed
Capacitor
(LSC)
Auxilary
Capacitor
Auxiliary
Windings
Main
Windings
PSC
Motor
208/240 VAC
Main
Windings
PSC
Motor
Auxilary
Capacitor
Auxiliary
Windings
Line VAC
Note:
Some P266A, P266B
and P266C models do not
have M2 or M3 Triacs.
Split Winding/Three Triac with LSC Wiring
for P266A Type Controls
(208/240 VAC Only)
Two Triac with LSC Wiring for
P266A, P266B and P266C Type Controls
(208/240 VAC, 460/575 VAC)380/460 VAC, and
One Triac Wiring for
P266A, P266B, and P266C Type Controls
()
208/240 VAC, 380/460 VAC, and 460/575 VAC
A B
C
FIG:p266_NA_HiV_wirng
Figure 4: High Voltage Wiring Options for P266E Type Controls
Note: Some P266E models do not have
M2 or M3 Triacs.
M3
M2 M1
L1 L2/N
L2/N
208/240 VAC
Auxilary
Capacitor
Auxiliary
Windings
PSC
Motor
Main
Windings
Single Triac Wiring
for P266E Type Controls
(208/240 VAC Only)
M3
M2 M1
L1 L2/N
L2/N
PSC
Motor
Main
Windings
Auxiliary
Windings
Auxilary
Capacitor
208/240 VAC
Split-Winding/Three Triac with LSC Wiring
for P266E Type Controls
(208/240 VAC Only)
M3
M2 M1
L1 L2/N
L2/N
PSC
Motor
Main
Windings
Auxiliary
Windings
Auxilary
Capacitor
208/240 VAC
Two Triac with LSC Wiring
for P266E Type Controls
(208/240 VAC Only)
Optional
Low-Speed
Capacitor
(LSC)
Optional
Low-Speed
Capacitor
(LSC)
A
B
C
FIG:p266_E_HiV_wirng
