Pentair 5600SXT - Bypass Valve Assembly (Metal)

Page 30

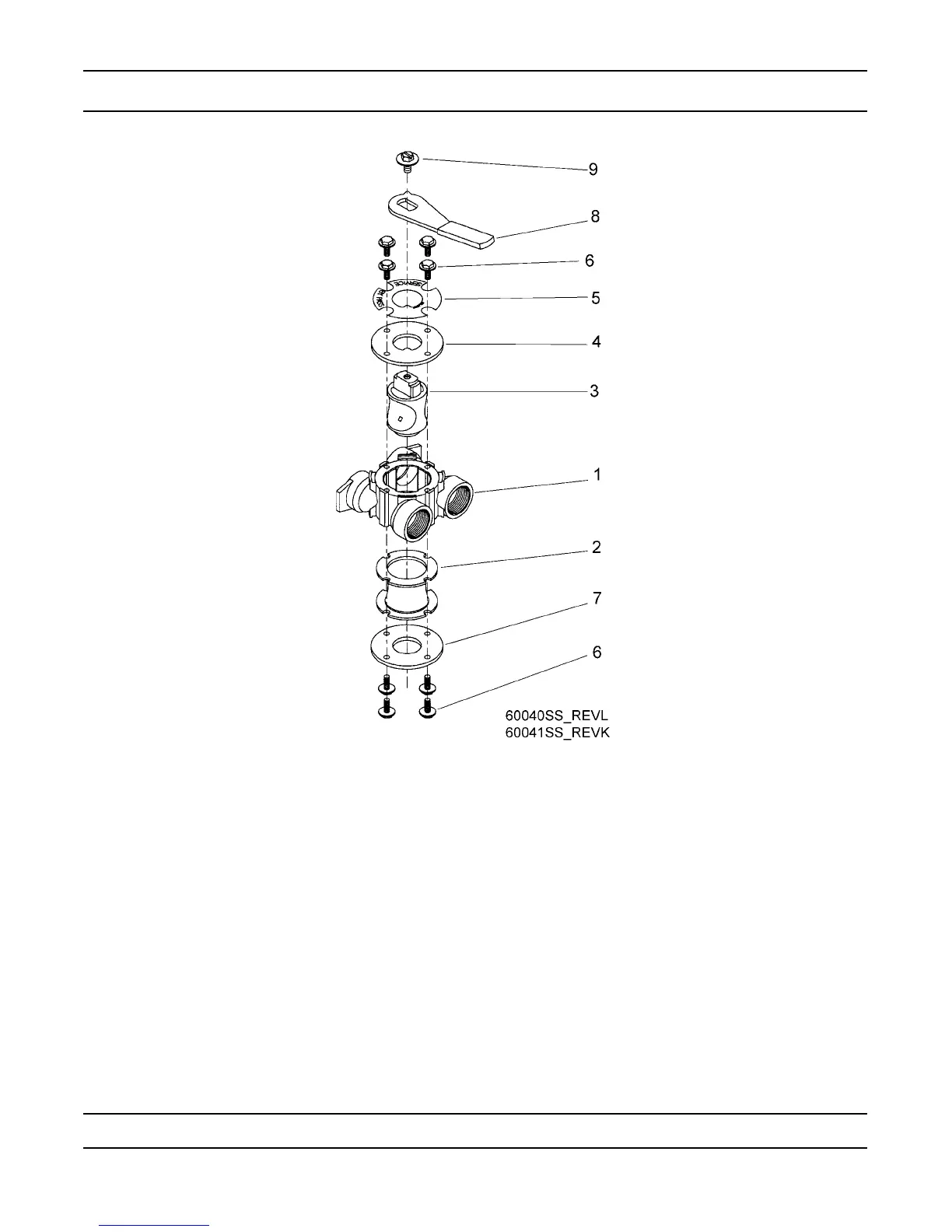

Bypass Valve Assembly (Metal)
For Service Assembly Numbers, See the Back of this Manual
Item No. Quantity Part No. Description
1 ...................1 .................... 17290 ......................bypass valve body, 3/4”
.....................1 .................... 17290NP .................bypass valve body, 3/4” nickel plated
.....................1 .................... 13399 ......................bypass valve body, 1”
.....................1 .................... 13399NP .................bypass valve body, 1”, nickel plated
2 ...................1 .................... 11726 ......................seal, bypass
3 ...................1 .................... 11972 ......................plug, bypass
4 ...................1 .................... 11978 ......................side cover
5 ...................1 .................... 13604-01 .................label
6 ...................8 .................... 15727 ......................screw
7 ...................1 .................... 11986 ......................side cover
8 ...................1 .................... 11979 ......................lever, bypass
9 ...................1 .................... 11989 ......................screw, hex head, 1/4-14
