VERTICAL MULTISTAGE PUMPS
3
3"
9-7/8"
3-15/16"
7-1/16"
8-1/4"
3-15/16"
8-1/4"
10"
1-1/4"
NPT
ANSI 250 lb
1-1/4" Flange
1/2" Dia. – 4 Places
E
A
B
C
D
E
A
B
C
D
F F
1/4" NPT
Gauge Tap
3/4" NPT
Vent Plug
Allow Space
to Remove
Motor
1/4" NPT
Gauge Tap
11-13/16"
5-1/8"5-1/8"
8-1/2"
9-3/4"
3-1/2"
12-5/64"
2" NPT
ANSI 250 lb
2" Flange
17/32" Dia. – 4 Places
E
B
D
A
C
E
B
D
A
C
F F
9-3/4"
Allow Space
to Remove
Motor
1/4" NPT
Gauge Tap
1/4" NPT
Gauge Tap
3/4" NPT
Vent Plug

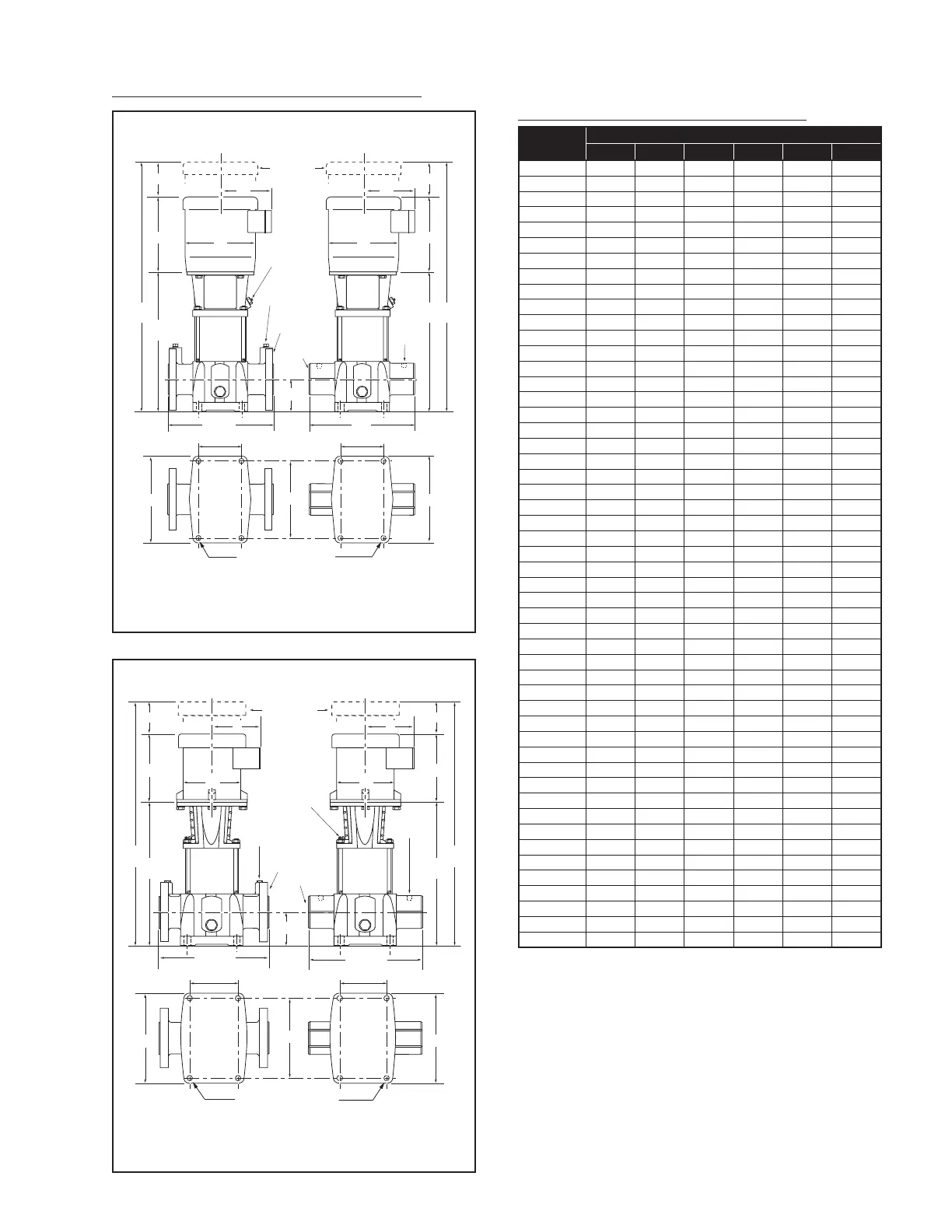

Figure 2B. Height, width, and baseplate dimensions for PVM8 and
PVM16 Series pumps.
TABLE I – Maximum Height and Width Dimensions*
Model
Number
Dimension in Inches
A B C D E F
PVM2-30/2D 11.3 9.3 4.5 2.0 22.6 6.0
PVM2-30D 11.3 9.3 4.5 2.0 22.6 6.0
PVM2-40D 12.1 10.1 5.3 2.0 24.2 7.2
PVM2-50D 12.8 10.1 5.7 2.0 24.9 7.2
PVM2-60D 13.5 10.1 5.7 2.0 25.6 7.2
PVM2-70D 14.2 10.1 5.7 2.0 26.3 7.2
PVM2-80D 14.9 10.1 5.7 2.0 27.0 7.2
PVM2-90D 15.8 12.6 6.8 2.6 31.0 8.9
PVM2-100D 16.5 12.6 6.8 2.6 31.7 8.9
PVM2-110D 17.2 12.6 6.8 2.6 32.4 8.9
PVM2-120D 17.9 12.6 6.8 2.6 33.1 8.9
PVM2-130D 18.6 13.9 7.9 2.6 35.1 10.0
PVM2-140D 19.3 13.9 7.9 2.6 35.8 10.0
PVM2-150D 20.0 13.9 7.9 2.6 36.5 10.0
PVM2-160D 20.8 13.9 7.9 2.6 37.3 10.0
PVM2-170D 21.5 13.9 7.9 2.6 38.0 10.0
PVM2-180D 22.2 13.9 7.9 2.6 38.7 10.0
PVM4-20/1D 11.3 9.3 4.5 2.0 22.6 6.0
PVM4-20D 11.3 9.3 4.5 2.0 22.6 6.0
PVM4-30D 12.4 10.1 5.3 2.0 24.5 7.2
PVM4-40D 13.5 10.1 5.7 2.0 25.6 7.2
PVM4-50D 14.5 10.1 5.7 2.0 26.6 7.2
PVM4-60D 15.8 13.9 7.9 2.6 32.3 10.0
PVM4-80/7D 17.9 13.9 7.9 2.6 34.4 10.0
PVM4-80D 17.9 13.9 7.9 2.6 34.4 10.0
PVM4-90D 19.0 13.9 7.9 2.6 35.5 10.0
PVM4-100D 20.0 13.9 7.9 2.6 36.5 10.0
PVM4-110D 21.1 13.9 7.9 2.6 37.6 10.0
PVM4-120D 22.2 13.9 7.9 2.6 38.7 10.0
PVM4-130D 23.2 13.9 7.9 2.6 39.7 10.0
PVM4-140D 24.3 13.9 7.9 2.6 40.8 10.0
PVM4-150D 25.4 13.9 7.9 2.6 41.9 10.0
PVM4-160D 26.4 13.9 7.9 2.6 42.9 10.0
PVM8-20/1D 14.1 9.3 4.5 2.0 25.4 6.0
PVM8-20D 15.2 10.1 5.7 2.0 27.3 7.2
PVM8-30D 16.4 13.9 7.9 2.6 32.9 10.0
PVM8-40D 17.6 13.9 7.9 2.6 34.1 10.0
PVM8-50D 18.8 13.9 7.9 2.6 35.3 10.0
PVM8-60D 20.0 13.9 7.9 2.6 36.5 10.0
PVM8-70D 21.1 13.9 7.9 2.6 37.6 10.0
PVM8-80D 22.3 13.9 7.9 2.6 38.8 10.0
PVM8-90D 23.5 13.9 7.9 2.6 40.0 10.0
PVM8-100D 24.7 13.9 7.9 2.6 41.2 10.0
PVM8-110D 25.9 13.9 7.9 3.1 42.9 10.0
PVM8-120D 27.0 13.9 7.9 3.1 44.0 10.0
PVM8-130D 28.2 13.9 7.9 3.1 45.2 10.0
PVM8-140D 29.4 13.9 7.9 3.1 46.4 10.0
PVM16-30/2D 15.8 13.9 7.9 2.6 32.3 10.0
PVM16-30D 17.6 13.9 7.9 2.6 34.1 10.0
PVM16-40D 19.4 13.9 7.9 2.6 35.9 10.0
PVM16-50D 21.1 13.9 7.9 3.1 38.1 10.0
* Measurements represent the largest number possible for each model.
Figure 2A. Height, width and baseplate dimensions for PVM2 and
PVM4 Series pumps.
SIZING CHART – PVM SINGLE PHASE PUMPS
