Pentair Aurora PVM Series User Manual

VERTICAL MULTISTAGE PUMPS
4
3"
9-7/8"
3-15/16"
7-3/32"
8-3/16"
3-15/16"
8-3/16"
8-1/4"
ANSI 250 lb
1-1/4" Flange
17/32" Dia. – 4 Places
E
A
B
C
D
E
A
B
D
F
C
F
Allow Space
to Remove
Motor
1-1/4"
Victaulic
Vent Plug
behind
Coupling Guard
11-13/16"
5-1/8"5-1/8"
8-1/2"
9-5/8"
3-1/2"
2" Victaulic
ANSI 250 lb
2" Flange
17/32" Dia. – 4 Places
E
B
D
A
C
E
B
D
A
C
F F
9-5/8"
Allow Space
to Remove
Motor
3/4" NPT
Vent Plug
10-1/4"

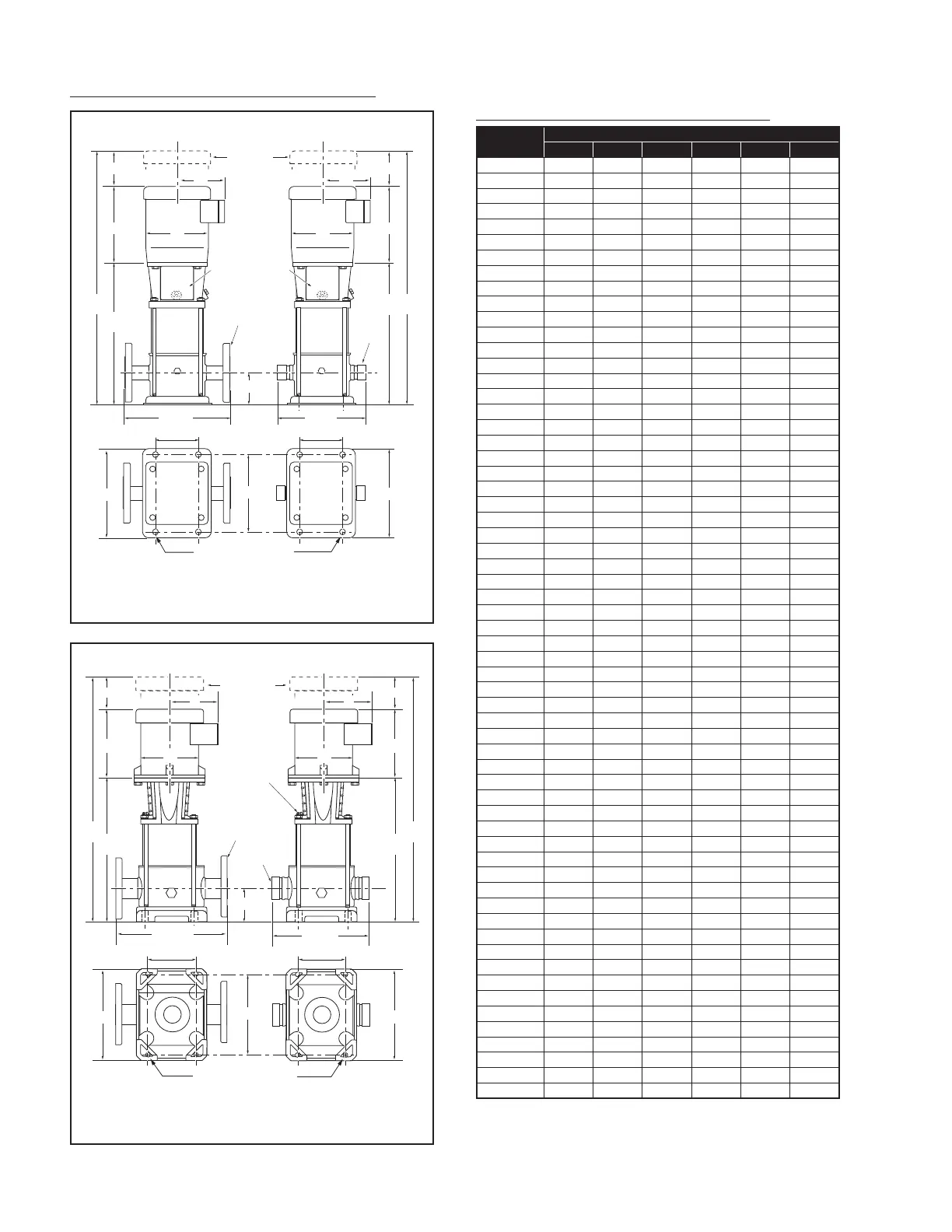

Figure 3B. Height, width, and baseplate dimensions for PVMX8 and
PVMX16 Series pumps.
TABLE II – Maximum Height and Width Dimensions*
Model
Number
Dimension in Inches
A B C D E F
PVM2-30/2D 11.3 9.3 5.2 2.0 22.6 6.2
PVM2-30D 11.3 9.3 5.2 2.0 22.6 6.2
PVM2-40D 12.1 9.3 5.2 2.0 23.4 6.2
PVM2-50D 12.8 10.1 5.7 2.0 24.9 7.2
PVM2-60D 13.5 10.1 5.7 2.0 25.6 7.2
PVM2-70D 14.2 10.1 5.7 2.0 26.3 7.2
PVM2-80D 14.9 10.1 5.7 2.0 27.0 7.2
PVM2-90D 15.8 12.6 6.9 2.6 31.0 8.6
PVM2-100D 16.5 12.6 6.9 2.6 31.7 8.6
PVM2-110D 17.2 12.6 6.9 2.6 32.4 8.6
PVM2-120D 17.9 12.6 6.9 2.6 33.1 8.6
PVM2-130D 18.6 12.6 6.9 2.6 33.8 8.6
PVM2-140D 19.3 12.6 6.9 2.6 34.5 8.6
PVM2-150D 20.0 12.6 6.9 2.6 35.2 8.6
PVM2-160D 20.8 12.6 6.9 2.6 36.0 8.6
PVM2-170D 21.5 12.6 6.9 2.6 36.7 8.6
PVM2-180D 22.2 12.6 6.9 2.6 37.4 8.6
PVM4-20/1D 11.3 9.3 5.2 2.0 22.6 6.2
PVM4-20D 11.3 9.3 5.2 2.0 22.6 6.2
PVM4-30D 12.4 9.3 5.2 2.0 23.7 6.2
PVM4-40D 13.5 10.1 5.7 2.0 25.6 7.2
PVM4-50D 14.5 10.1 5.7 2.0 26.6 7.2
PVM4-60D 15.8 12.6 6.9 2.6 31.0 8.6
PVM4-80/7D 17.9 12.6 6.9 2.6 33.1 8.6
PVM4-80D 17.9 12.6 6.9 2.6 33.1 8.6
PVM4-90D 19.0 12.6 6.9 2.6 34.2 8.6
PVM4-100D 20.0 12.6 6.9 2.6 35.2 8.6
PVM4-110D 21.1 12.6 6.9 2.6 36.3 8.6
PVM4-120D 22.2 12.6 6.9 2.6 37.4 8.6
PVM4-130D 23.2 12.6 6.9 2.6 38.4 8.6
PVM4-140D 24.3 12.6 6.9 2.6 39.5 8.6
PVM4-150D 25.4 13.9 8.1 2.6 41.9 10.3
PVM4-160D 26.4 13.9 8.1 2.6 42.9 10.3
PVM8-20/1D 14.1 9.3 4.5 2.0 25.4 6.0
PVM8-20D 15.2 10.1 5.7 2.0 27.3 7.2
PVM8-30D 16.4 12.6 6.9 2.6 31.6 8.6
PVM8-40D 17.6 12.6 6.9 2.6 32.8 8.6
PVM8-50D 18.8 12.6 6.9 2.6 34.0 8.6
PVM8-60D 20.0 12.6 6.9 2.6 35.2 8.6
PVM8-70D 21.1 13.9 8.1 2.6 37.6 10.3
PVM8-80D 22.3 13.9 8.1 2.6 38.8 10.3
PVM8-90D 23.5 13.9 8.1 2.6 40.0 10.3
PVM8-100D 24.7 13.9 8.1 2.6 41.2 10.3
PVM8-110D 25.9 14.2 8.1 3.1 43.2 10.3
PVM8-120D 27.0 14.2 8.1 3.1 44.3 10.3
PVM8-130D 28.2 14.2 8.1 3.1 45.5 10.3
PVM8-140D 29.4 14.2 8.1 3.1 46.7 10.3
PVM8-160D 32.3 20.0 9.5 4.0 56.3 12.9
PVM8-160D 32.3 20.0 9.5 4.0 56.3 12.9
PVM16-30/2D 15.8 12.6 6.9 2.6 31.0 8.6
PVM16-30D 17.6 13.9 8.1 2.6 34.1 10.3
PVM16-40D 19.4 13.9 8.1 2.6 35.9 10.3
PVM16-50D 21.1 14.2 8.1 3.1 38.4 10.3
PVM16-60D 23.4 20.0 9.5 4.0 47.4 12.9
PVM16-70D 25.2 20.0 9.5 4.0 49.2 12.9
PVM16-80D 27.0 20.0 9.5 4.0 51.0
12.9
PVM16-90D 28.7 16.9 9.2 3.8 49.4 11.5
PVM16-100D 30.5 16.9 9.2 3.8 51.2 11.5
PVM16-110D 31.6 20.0 9.5 3.0 54.6 13.3
PVM16-120D 33.4 20.0 9.5 3.0 56.4 13.3
PVM16-130D 35.2 20.0 9.5 3.0 58.2 13.3
* Measurements represent the lar
gest number possible for each model.
NOTICE: PVMX models are 316 stainless steel.
Figure 3A. Height, width and baseplate dimensions for PVMX2 and
PVMX4 Series pumps.
SIZING CHART – PVM THREE PHASE PUMPS
