Pentair Aurora PVM Series User Manual

VERTICAL MULTISTAGE PUMPS
6
3"
9-7/8"
3-15/16"
7-3/32"
8-3/16"
3-15/16"
8-3/16"
8-1/4"
ANSI 250 lb
1-1/4" Flange
17/32" Dia. – 4 Places
E
A
B
C
D
E
A
B
D
F
C
F
Allow Space
to Remove
Motor
1-1/4"
Victaulic
Vent Plug
behind
Coupling Guard
11-13/16"
5-1/8"5-1/8"
8-1/2"
9-5/8"
3-1/2"
2" Victaulic
ANSI 250 lb
2" Flange
17/32" Dia. – 4 Places
E
B
D
A
C
E
B
D
A
C
F F
9-5/8"
Allow Space
to Remove
Motor
3/4" NPT
Vent Plug
10-1/4"

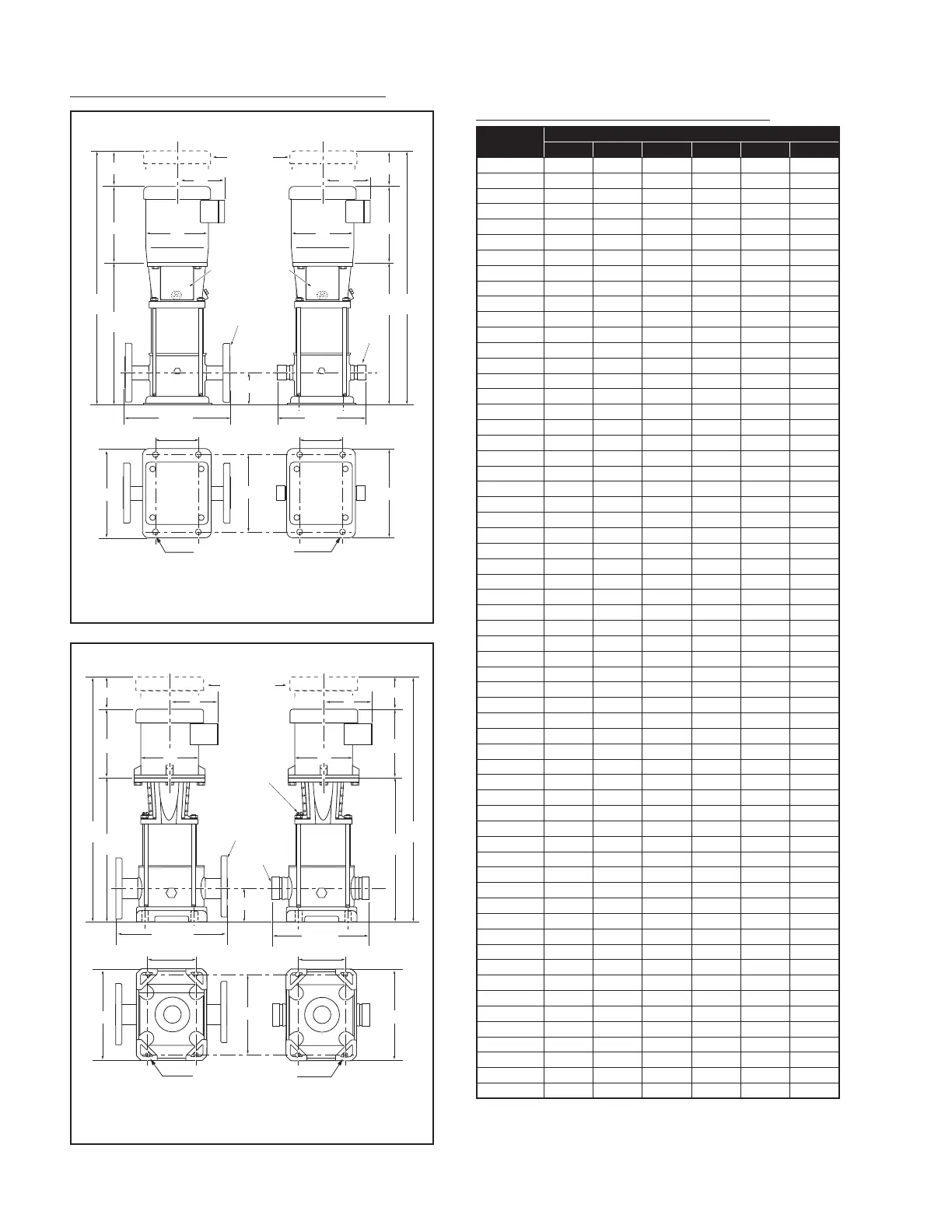

Figure 3B. Height, width, and baseplate dimensions for PVMX8 and
PVMX16 Series pumps.
TABLE II – Maximum Height and Width Dimensions*
Model
Number
Dimension in Inches
A B C D E F
PVMX2-30/2D 11.9 9.3 5.2 2.0 23.2 6.2
PVMX2-30D 11.9 9.3 5.2 2.0 23.2 6.2
PVMX2-40D 12.6 9.3 5.2 2.0 23.9 6.2
PVMX2-50D 13.3 10.1 5.7 2.0 25.4 7.2
PVMX2-60D 14.1 10.1 5.7 2.0 26.2 7.2
PVMX2-70D 14.8 10.1 5.7 2.0 26.9 7.2
PVMX2-80D 15.5 10.1 5.7 2.0 27.6 7.2
PVMX2-90D 16.2 12.6 6.9 2.6 31.4 8.6
PVMX2-100D 16.9 12.6 6.9 2.6 32.1 8.6
PVMX2-110D 17.6 12.6 6.9 2.6 32.8 8.6
PVMX2-120D 18.3 12.6 6.9 2.6 33.5 8.6
PVMX2-130D 19.0 12.6 6.9 2.6 34.2 8.6
PVMX2-140D 19.7 12.6 6.9 2.6 34.9 8.6
PVMX2-150D 20.4 12.6 6.9 2.6 35.6 8.6
PVMX2-160D 21.1 12.6 6.9 2.6 36.3 8.6
PVMX2-170D 21.8 12.6 6.9 2.6 37.0 8.6
PVMX2-180D 22.6 12.6 6.9 2.6 37.8 8.6
PVMX4-20/1D 11.7 9.3 5.2 2.0 23.0 6.2
PVMX4-20D 11.7 9.3 5.2 2.0 23.0 6.2
PVMX4-30D 12.8 9.3 5.2 2.0 24.1 6.2
PVMX4-40D 13.9 10.1 5.7 2.0 26.0 7.2
PVMX4-50D 14.9 10.1 5.7 2.0 27.0 7.2
PVMX4-60D 16.0 12.6 6.9 2.6 31.2 8.6
PVMX4-80/7D 18.1 12.6 6.9 2.6 33.3 8.6
PVMX4-80D 18.1 12.6 6.9 2.6 33.3 8.6
PVMX4-90D 19.2 12.6 6.9 2.6 34.4 8.6
PVMX4-100D 20.2 12.6 6.9 2.6 35.4 8.6
PVMX4-110D 21.3 12.6 6.9 2.6 36.5 8.6
PVMX4-120D 22.4 12.6 6.9 2.6 37.6 8.6
PVMX4-130D 23.4 12.6 6.9 2.6 38.6 8.6
PVMX4-140D 24.5 12.6 6.9 2.6 39.7 8.6
PVMX4-150D 25.5 13.9 8.1 2.6 42.0 10.3
PVMX4-160D 26.6 13.9 8.1 2.6 43.1 10.3
PVMX8-20/1D 14.1 9.3 4.5 2.0 25.4 6.0
PVMX8-20D 15.2 10.1 5.7 2.0 27.3 7.2
PVMX8-30D 16.4 12.6 6.9 2.6 31.6 8.6
PVMX8-40D 17.6 12.6 6.9 2.6 32.8 8.6
PVMX8-50D 18.8 12.6 6.9 2.6 34.0 8.6
PVMX8-60D 20.0 12.6 6.9 2.6 35.2 8.6
PVMX8-70D 21.1 13.9 8.1 2.6 37.6 10.3
PVMX8-80D 22.3 13.9 8.1 2.6 38.8 10.3
PVMX8-90D 23.5 13.9 8.1 2.6 40.0 10.3
PVMX8-100D 24.7 13.9 8.1 2.6 41.2 10.3
PVMX8-110D 25.9 14.2 8.1 3.1 43.2 10.3
PVMX8-120D 27.0 14.2 8.1 3.1 44.3 10.3
PVMX8-130D 28.2 14.2 8.1 3.1 45.5 10.3
PVMX8-140D 29.4 14.2 8.1 3.1 46.7 10.3
PVMX8-150D 31.1 20.0 9.5 4.0 55.1 12.9
PVMX8-160D 32.3 20.0 9.5 4.0 56.3 12.9
PVMX16-30/2D 15.8 12.6 6.9 2.6 31.0 8.6
PVMX16-30D 17.6 13.9 8.1 2.6 34.1 10.3
PVMX16-40D 19.4 13.9 8.1 2.6 35.9 10.3
PVMX16-50D 21.1 14.2 8.1 3.1 38.4 10.3
PVMX16-60D 23.4 20.0 9.5 4.0 47.4 12.9
PVMX16-70D 25.2 20.0 9.5 4.0 49.2 12.9
PVMX16-80D 27.0 20.0 9.5 4.0 51.0
12.9
PVMX16-90D 28.7 16.9 9.2 3.8 49.4 11.5
PVMX16-100D 30.5 16.9 9.2 3.8 51.2 11.5
PVMX16-110D 31.6 20.0 9.5 3.0 54.6 13.3
PVMX16-120D 33.4 20.0 9.5 3.0 56.4 13.3
PVMX16-130D 35.2 20.0 9.5 3.0 58.2 13.3
* Measurements represent the lar
gest number possible for each model.
NOTICE: PVMX models are 316 stainless steel.
Figure 3A. Height, width and baseplate dimensions for PVMX2 and
PVMX4 Series pumps.
SIZING CHART – PVMX THREE PHASE PUMPS
