Motor Shaft Key comes w/Motor (Item #1.)
Section 8
Replacement Parts

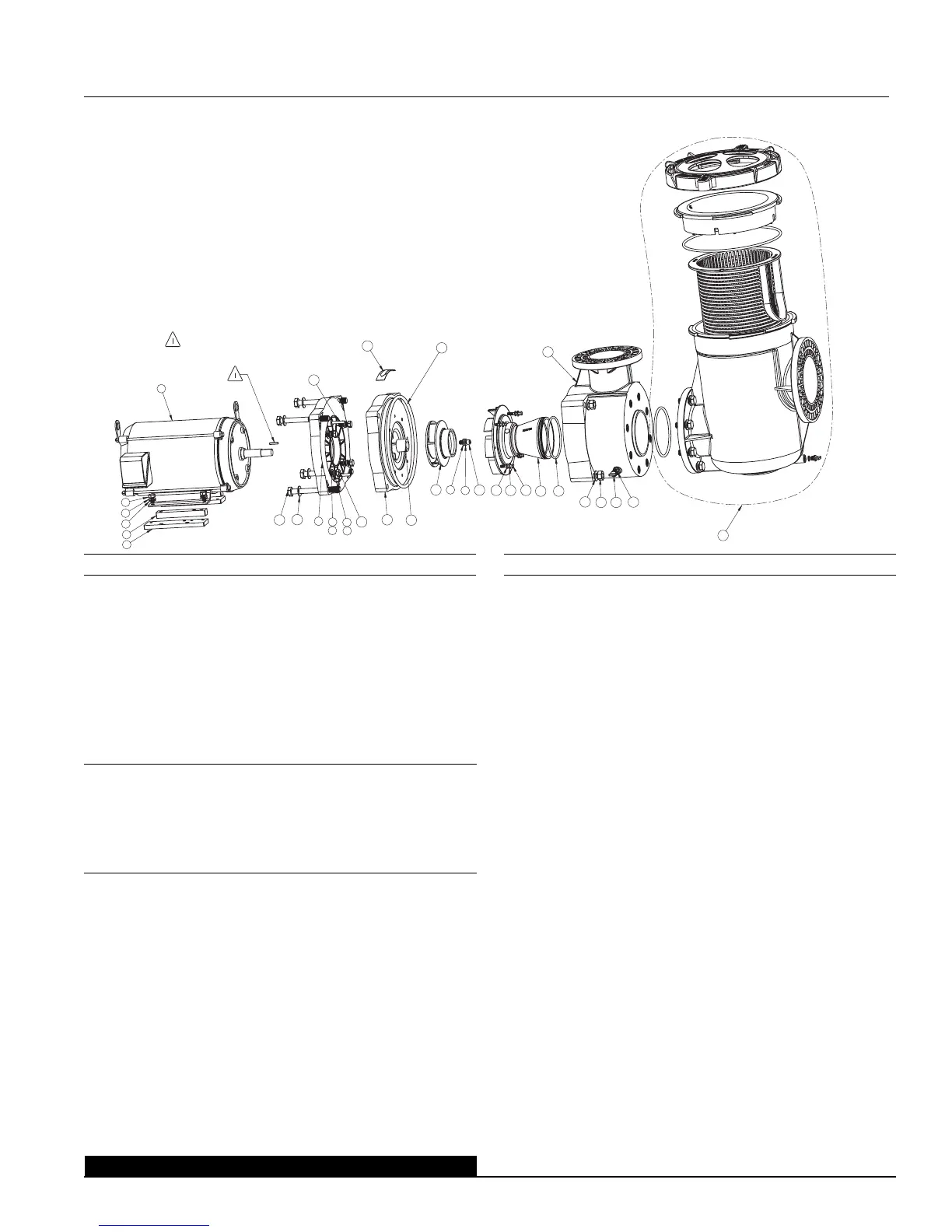

Illustrated Parts
Item # Part # Description
1 357071 Motor 15 HP 3 Phase - EQ1500 - 60 Hz
1 357070 Motor 10 HP 3 Phase - EQ1000 - 60 Hz
1 357069 Motor 7½ HP 3 Phase - EQ750 - 60 Hz
1 357066 Motor 7½ HP 1 Phase - EQ750 - 60 Hz
1 357068 Motor 5 HP 3 Phase - EQ500 - 60 Hz
1 357065 Motor 5 HP 1 Phase - EQ500 - 60 Hz
1 357067 Motor 3 HP 3 Phase - EQW300 - 60 Hz
1 357064 Motor 3 HP 1 Phase - EQW300 - 60 Hz
1 350158 Motor 5 HP 3 Phase - EQW500 - 60 Hz
1 350159 Motor 5 HP 1 Phase - EQW500 - 60 Hz
1 350112 Motor Expln PF 10 HP 3 Phase - EQK1000 - 50 Hz
1 350113 Motor Expln PF 7½ HP 3 Phase - EQK1000 - 50 Hz
1 350153 Motor 10 HP 3 Phase - EQK1000 - 50 Hz
1 350154 Motor 7½ HP 3 Phase - EQK750 - 50 Hz
1 350155 Motor 5 HP 3 Phase - EQK500 - 50 Hz
1 350156 Motor 3 HP 3 Phase - EQK300 - 50 Hz
2 356713 Support - Motor - {qty. 2}
3 356712 Support Adapter - Motor - EQW300, EQ500,
EQ750–3PH - {qty. 2}
4 072184 Washer, Flat 3/8" ID x 7/8" OD .05 Thk 18-8 s/s -
{qty. 5 v& qty. 9}
5 98220600 Washer Split Lock 3/8" 18-8 s/s - {qty. 5 v& qty. 9}
6 A135 Screw 3/8"-16 x ¾" Hx Hd Cap 18-8 s/s
(EQ750–1PH, EQ1000, EQ1500) - {qty. 4}
6 350073 Screw 3/8"-16 x 1½" Hx Hd Cap 18-8 s/s
(EQ300, EQ500, EQ750–3PH) - {qty. 4}
7 356790 Adapter - Motor - EQ Series
8 075842 Washer, Flat ½" ID x 1¼" OD .125 Thk 300 s/s - {qty. 4}
9 350063 Washer Split Lock 1/2" 18-8 s/s - {qty. 4}
10 354290 Screw 3/8"-16 x 1" Hx Hd Cap 18-8 s/s
(EQ300, EQ500, EQ750–3PH) - {qty. 4}
10 075843 Screw 1/2"-13 x 1¼" Hx Hd Cap 18-8 s/s
(EQ750–1PH, EQ1000, EQ1500) - {qty. 4}
11 356710 Screw 5/8"-11 x 6½" Hx Hd Cap 18-8 s/s - {qty. 4}
12 356789 Washer, Flat 11/16" ID x 1-5/16" OD .078 Thk 300 s/s
{qty. 8}
13 356795 Seal Plate - EQ Series
14 071725 Seal Set
15 350030 Impeller Assy. - EQ500
15 350029 Impeller Assy. - EQ750
15 350028 Impeller Assy. - EQ1000
15 350027 Impeller Assy. - EQW300, EQ1500
15 350070 Impeller Assy. - EQW500
16 071037 Screw 3/8"-16 x 1" Sckt. Hd Cap 18-8 s/s
17 350032 Diffuser - EQ500
17 350033 Diffuser - EQ750, EQ1000
17 356735 Diffuser - EQW300, EQ1500
17 357273 Diffuser - EQW500
18 51008500 Washer, Flat 1/4" 300 s/s - {qty. 4}
19 072172 Washer Split Lock 1/4" 18-8 s/s - {qty. 4}
20 350035 Screw 1/4"-20 x 1½" Hx Hd Cap 18-8 s/s
(EQ500, EQ750, EQ1000) - {qty. 4}
20 356797 Screw 1/4"-20 x 1-¾" Hx Hd Cap 18-8 s/s
(EQW300, EQ1500) - {qty. 4}
21 350037 O-ring Diffuser 3/16" x 4-7/8"
22 356755 Housing - EQ Series
23 356776 Nut 5/8"-11 Hx Brass - {qty. 4}
24 154699 Drain Plug
25 192115 O-ring Drain Plug
26 350060 Pin Dowel 5/16" x 1¾" 18-8 s/s - {qty. 2}
27 350072 Label, Directional Arrow
28 356780 O-ring Seal Plate 3/8" x 11" dia.
29 340013 Strainer Pot, Complete EQ 6" x 6"
v
5 Qty. is only used on models: EQ750-1PH, EQ1000, EQ1500, EQK750, and EQK1000.
