EQ Series Pump Installation and User’s Guide
FASTENERS AND O-RING ARE INCLUDED WITH PENTAIR
POOL PRODUCTS EQ 6 X 6 STRAINER TO CONNECT STRAINER
DIRECTLY TO EQ SERIES PUMP. IF PUMP IS TO BE INSTALLED
WITHOUT STRAINER, MAKE BOTH CONNECTIONS PER NOTE 1.
USE ANSI CLASS 150 PLASTIC FLANGE
AND 1/8" THICK CLASS 150 FULL FLANGE GASKET
TO MAKE CONNECTION.
THIS DIAMETER FITS INSIDE 6" SCH 40 PIPE.
DO NOT USE SCH 80 PIPE AS FINAL PIPE
SIZE WHEN MAKING THIS FLANGE CONNECTION.
2
1
1
3
21
3
8 X 5/8-11 X 1" DP
FOR 6" STD FLANGE
14.0 MAX.
12.3
DIM C.
.50
5.75
16.35
5.94 REF.
10.60
4" STD
FLANGE
Ø .500 MOUNTING HOLES
DIM B.
DIM A.
3.50
+ .00
– .06
+ .05
– .05
+ .01
– .13
FASTENERS AND O-RING ARE INCLUDED WITH PENTAIR
POOL PRODUCTS EQ 6 X 6 STRAINER TO CONNECT STRAINER
DIRECTLY TO EQ SERIES PUMP. IF PUMP IS TO BE INSTALLED
WITHOUT STRAINER, MAKE BOTH CONNECTIONS PER NOTE 1.
USE ANSI CLASS 150 PLASTIC FLANGE
AND 1/8" THICK CLASS 150 FULL FLANGE GASKET
TO MAKE CONNECTION.
2
1
1
DIM C.
16.35
4" STD FLANGE
1
6" STD FLANGE
Ø .500 MOUNTING HOLES
DIM B.
DIM D.
20
3.50
+ .05
– .05
+ .01
– .13
± .05
11.62
21.5
19.00
+ .03
– .09

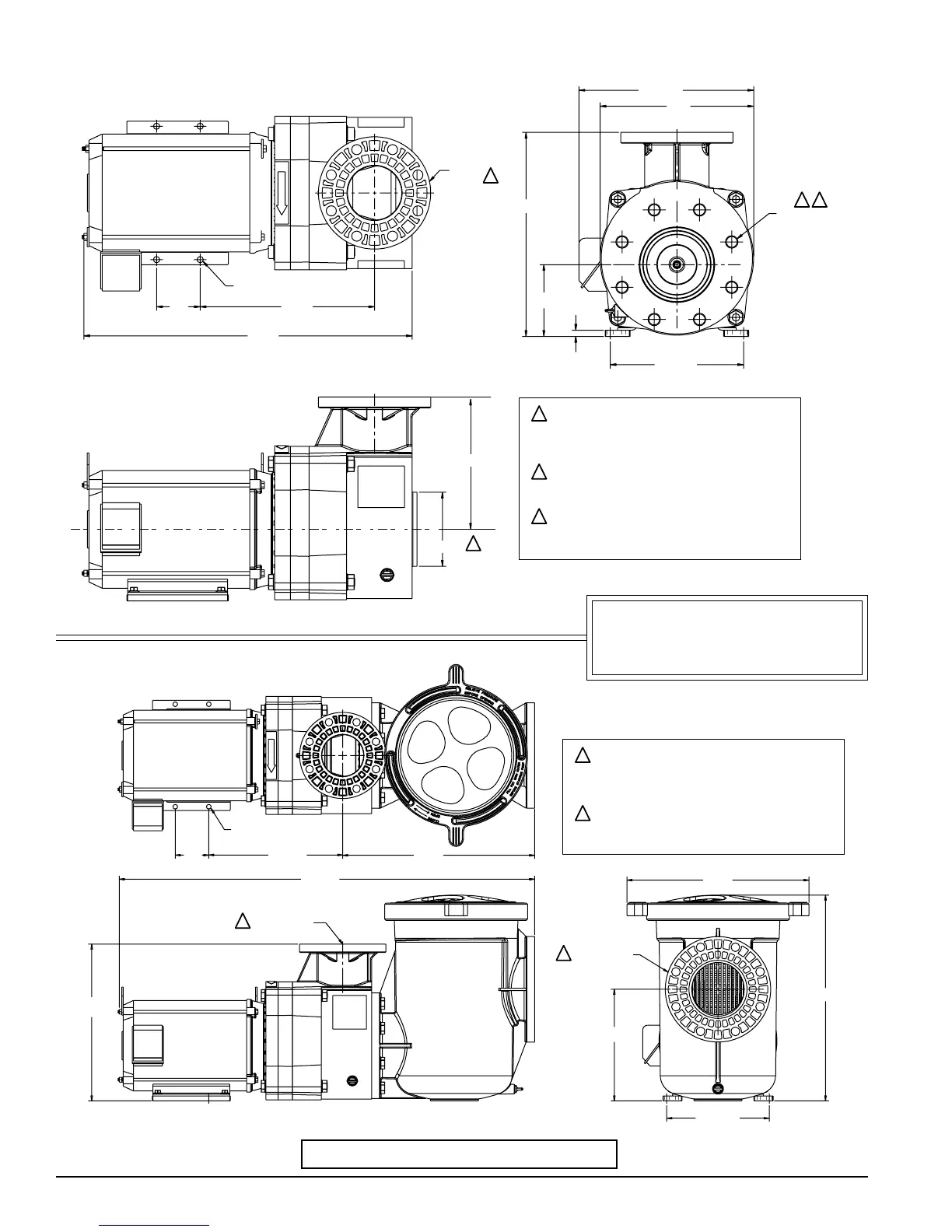

Dimensional Data
See, SECTION 9. PUMP TECHNICAL
DATA
“Engineering Specifications”
on page 19, for pump dimensions.
ALL DIMENSIONS ARE IN INCHES.

Pentair EQ SERIES Specifications

General

Brand	Pentair
Model	EQ SERIES
Category	Swimming Pool Pump
Language	English
