Tank Owner’s Manual Pg. 6 of 23
9/26/05 Rev. D
Model
"A"
(in.)
"B"
(in.)
"C-C"
(in.)
THS3461
THS3484
THS4272
THS4284
THS4296
46 1/4
66
39

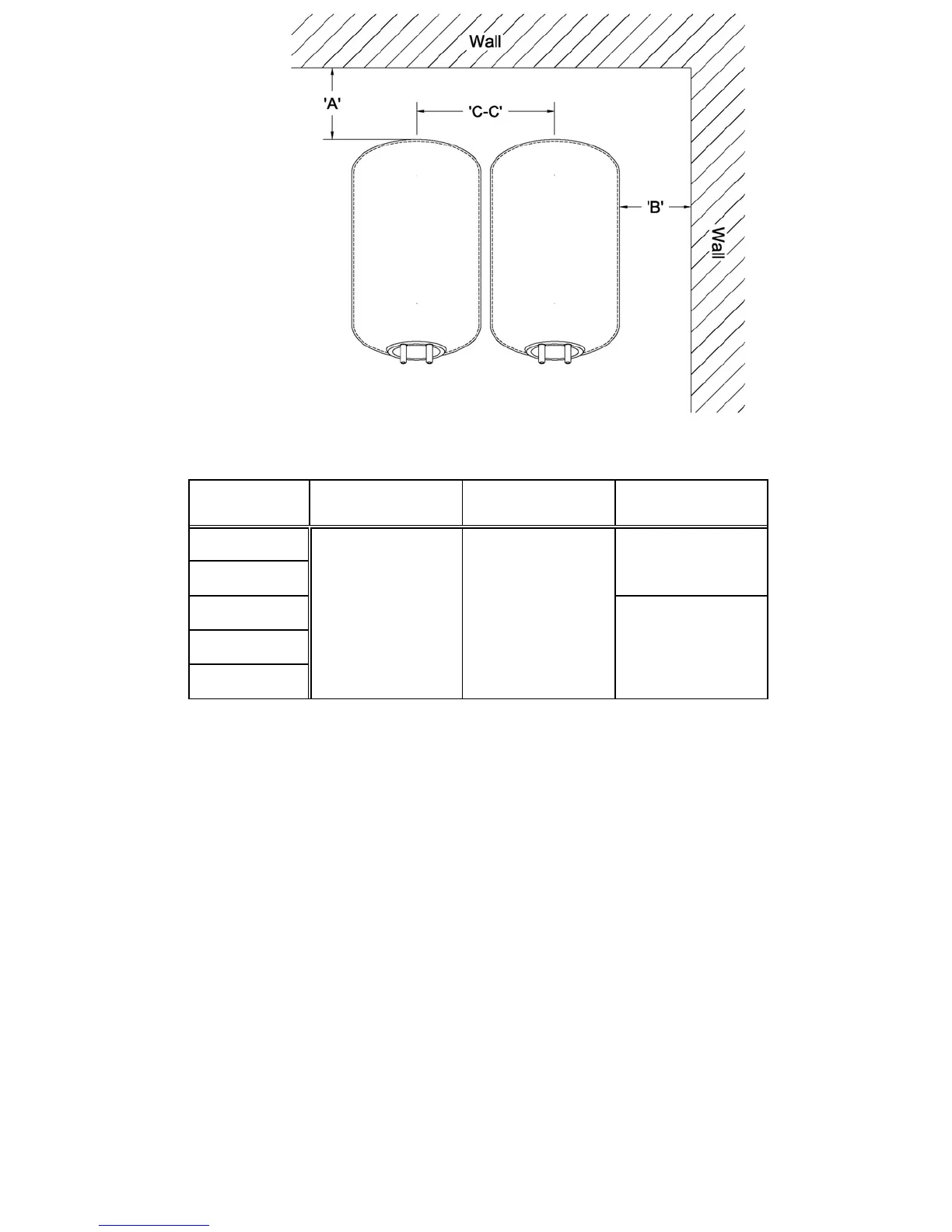

Figure 1
• Ensure that the tank(s) are level, both across each pipe connection and from the
influent pipe to the effluent pipe. For two tank systems, make sure the tanks are level
to each other. If adjustments need to be made, loosen the nut underneath the
saddles and adjust the saddle placement as needed. Be sure to tighten the nut after
adjustment. If shimming is required to raise one end of the tank, be sure to use a
non-compressible material placed under the bottom of the tank saddle.
2.3 Setting Anchor Bolts
NOTE: Local, county, and state codes may require that the tanks be
anchored in a specific way. Please verify before proceeding with anchor
installation.
• If the tanks are to be anchored to the slab, mark the holes when the tanks are in their
desired position on the slab. Install anchors per manufacturer’s specifications.
NOTE: Move the tanks aside before drilling for anchors. This may be
necessary in order to comply with the anchor manufacturer’s instructions,
and will avoid damage to the tanks and/or saddles during anchor
installation.
