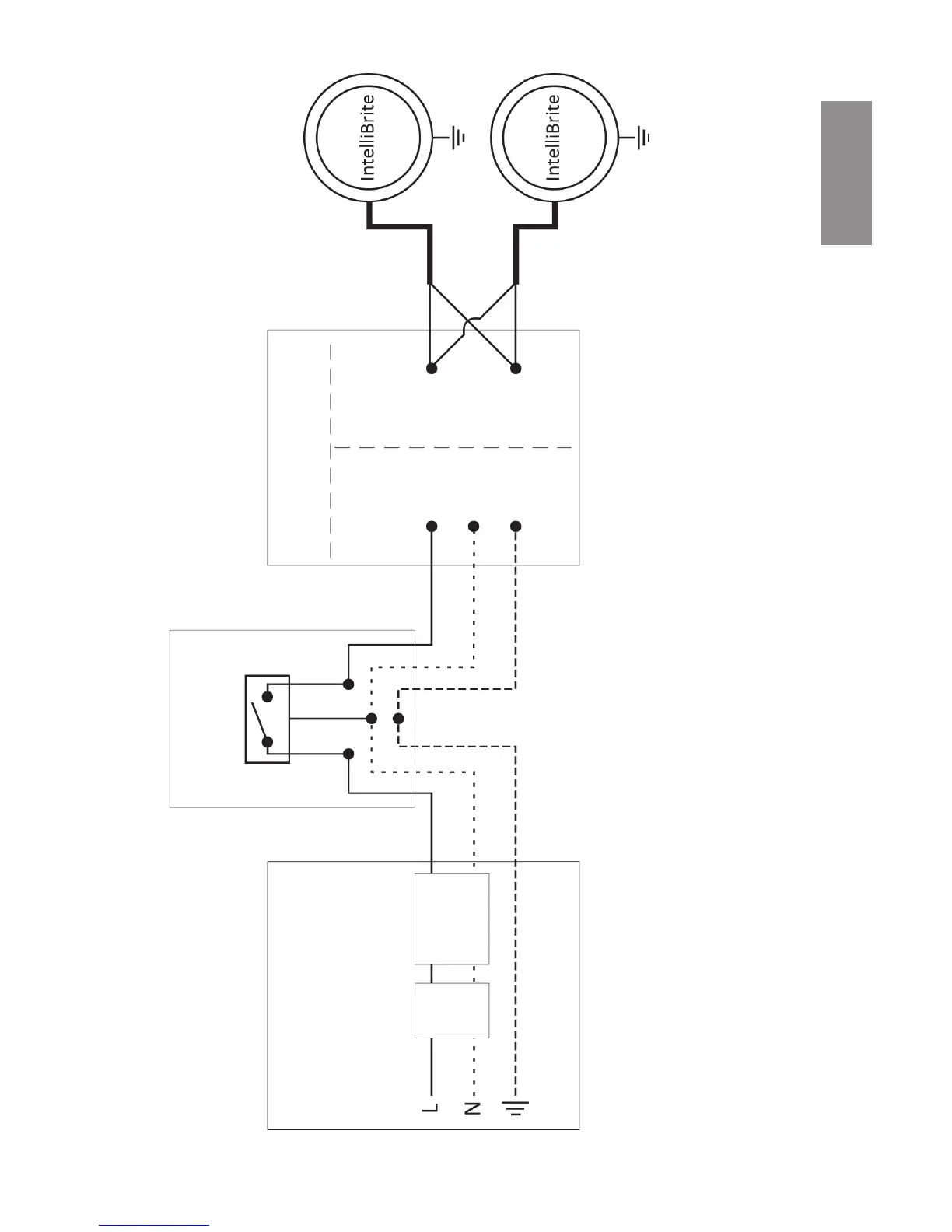

Bedradingsschema van het IntelliBrite
®
Controller-systeem
BELANGRIJK! Bij het installeren van 12 VAC IntelliBrite LED-verlichng sluit u de lampjes
aan op de secundaire 12 VAC-uitgang van de spanningsverlagende transformator.
Sluit vervolgens de IntelliBrite-controller aan op de primaire 230 VAC-ingang van de
spanningsverlagende transformator.
Elektriciteitskast
Stroomon-
derbreker
Zwart
Wit
Rood
Transformator
Primair
Secundair
Tot 6
IntelliBrites
230 V
IntelliBrite-
controller
230 VAC
GFCI
Nederlands
