45

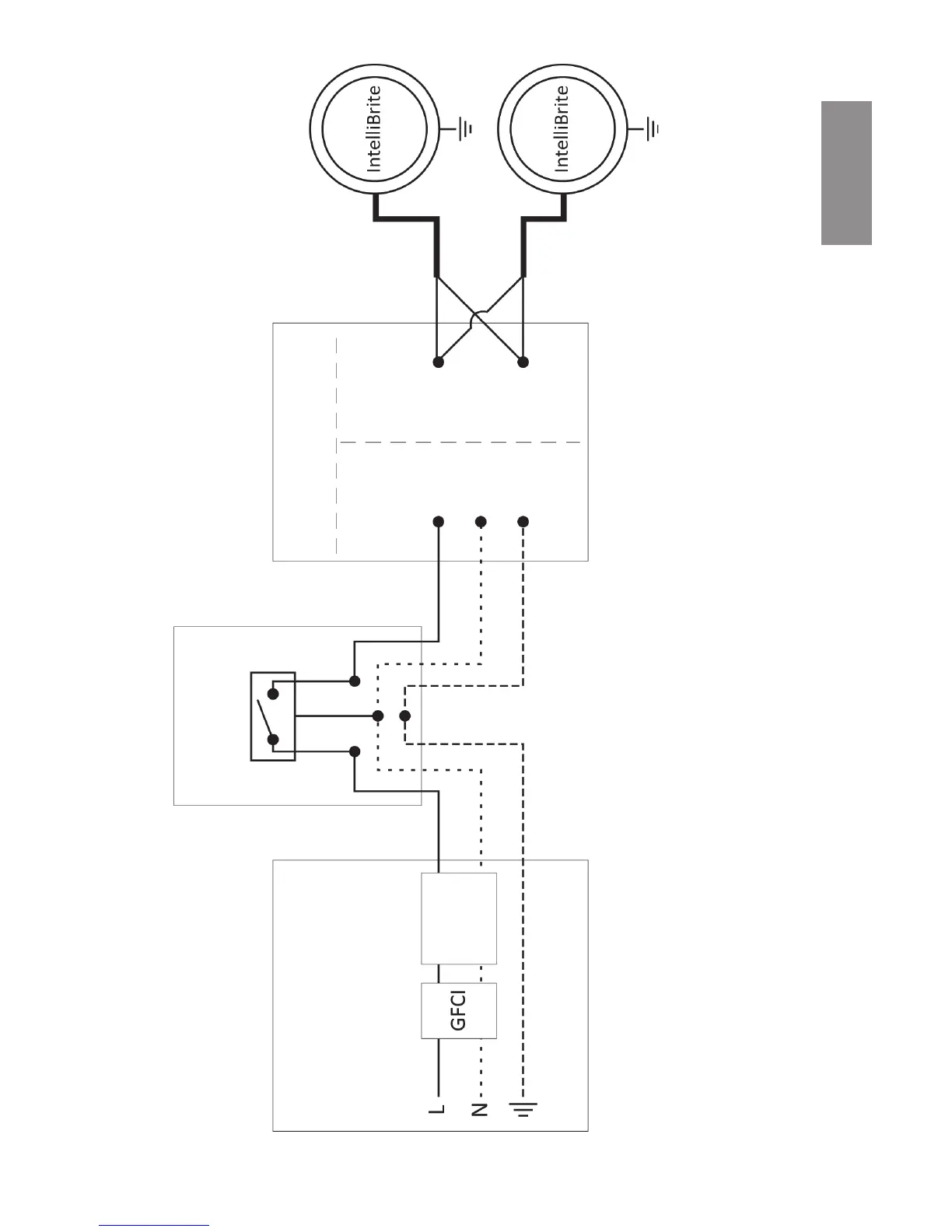

Diagrama de cableado del sistema del Controlador IntelliBrite
®
¡Importante! Cuando instale luces LED IntelliBrite de 12 VAC, conecte las luces a la toma de
salida secundaria de 12 VAC del transformador reductor y, después, conecte el Controlador
IntelliBrite a la toma de entrada principal de 230 VAC del transformador reductor.
Armario eléctrico
Disyuntor
Negro
Blanco
Rojo
Transformador
Primario
Secundario
Hasta 6
IntelliBrites
230 V
Controlador
IntelliBrite
230 VAC
Español
