Pentair IntelliBrite Installation And User Guide

7

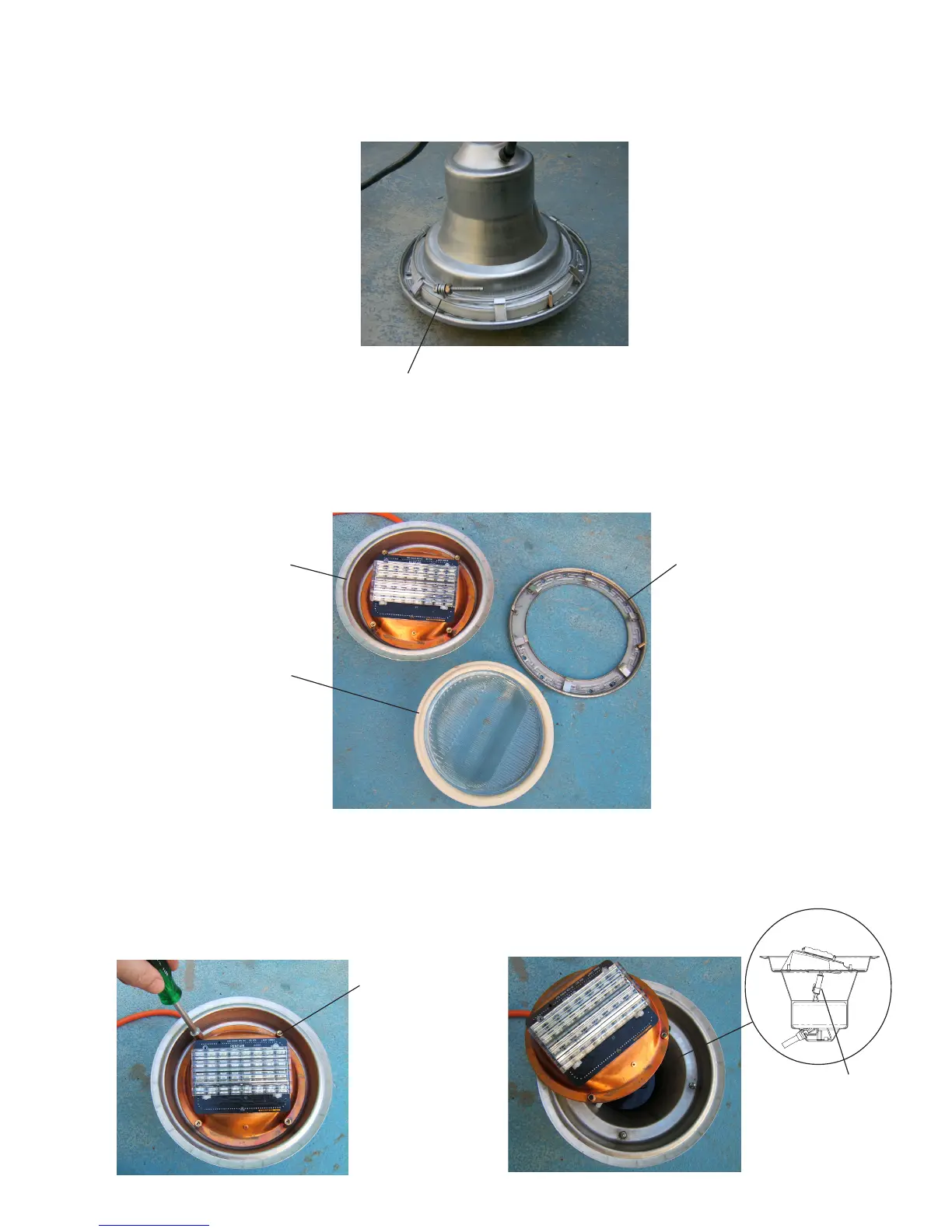

4. Using a ¼" nut driver and a #3 Phillips screwdriver, remove the nut uni-tension wire clamp. Place the nut aside
for reinstallation.
5. Remove the face ring and wire clamp from the light housing.
6. With the light resting on its base, carefully pry off the gasket to remove the lens. Discard the gasket. A NEW
LENS GASKET (P/N 79101600) MUST BE USED EACH TIME THE LIGHT IS REASSEMBLED. See page 10
for replacement kit part numbers.
7. Using a ¼" nut driver, carefully remove the four retainer nuts from the LED light assembly. Place the nuts
aside for reinstallation.
8. Unplug the LED light assembly connector and remove the assembly from the housing.
Retaining nut
(4x)
Face ring
Gasket and lens
Light housing
Unplug the LED
light assembly
connector to
remove the light
assembly from
its housing
Spring clamp: Remove nut and screw

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
