IntelliBrite
®
Underwater Pool LED Color-Changing Light
The IntelliBrite
®
underwater pool LED (light-emitting diode) light system gives you brilliant vivid multi-colors with
spectacular effects for your pool. The energy efficient colored LED array can cycle through colors at varying speeds
and in different sequences of color. The unique IntelliBrite lens geometry provides a wider beam for greater
underwater light reflection providing increased light intensity. Choose one of the seven pre-programmed color light
shows or select one of the five fixed colors to create virtually endless range of dramatic underwater lighting effects.
IntelliBrite LED lights are fully compatible with IntelliTouch
®
and EasyTouch
®
automation systems. For more
information about using IntelliBrite lights with IntelliTouch systems, refer to the IntelliTouch User’s Guide (P/N
520102) and the EasyTouch User’s Guide (P/N 520584).
Operating IntelliBrite LED lights using a wall switch
IntelliBrite LED lights can be controlled using a standard wall-mount light switch. Multiple IntelliBrite LED lights can
be connected via a junction box to a single switch so that all lights can be switched on and off together. IntelliBrite
LED lights are controlled by cycling AC power from a standard wall switch. By turning the switch on and off a
specific number of times, the light activates one of the seven light show modes, fixed colors, and enables the
“Hold” and “Recall” feature.
Selecting a light show mode or fixed color
Switch power on to the light. A white light will momentarily illuminate, followed by the previously selected color. To
select a color show mode (1-7) or fixed color (8-12), turn the wall switch off/on a specific number of times. Each
number (1-12) shown below corresponds to the number of times to power-cycle the switch to activate a color light
show or fixed color. For details about saving color effects while in “show” modes, see “Hold” and “Recall” feature
on page 2.
1. SAm
®
Mode: Cycles through white, magenta, blue and green colors (emulates the Pentair SAm light).
2. Party Mode: Rapid color changing building energy and excitement.
3. Romance Mode: Slow color transitions creating a mesmerizing and calming effect.
4. Caribbean Mode: Transitions between a variety of blues and greens.
5. American Mode: Patriotic red, white and blue transition.
6. California Sunset Mode: Dramatic transitions of orange, red and magenta tones.
7. Royal Mode: Richer, deeper color tones.
8. Blue: Fixed color.
9. Green: Fixed color.
10. Red: Fixed color.
11. White: Fixed color.
12. Magenta: Fixed color.
13. Hold: Save the current color effect during a color light show.
14. Recall: Activate the last saved color effect.

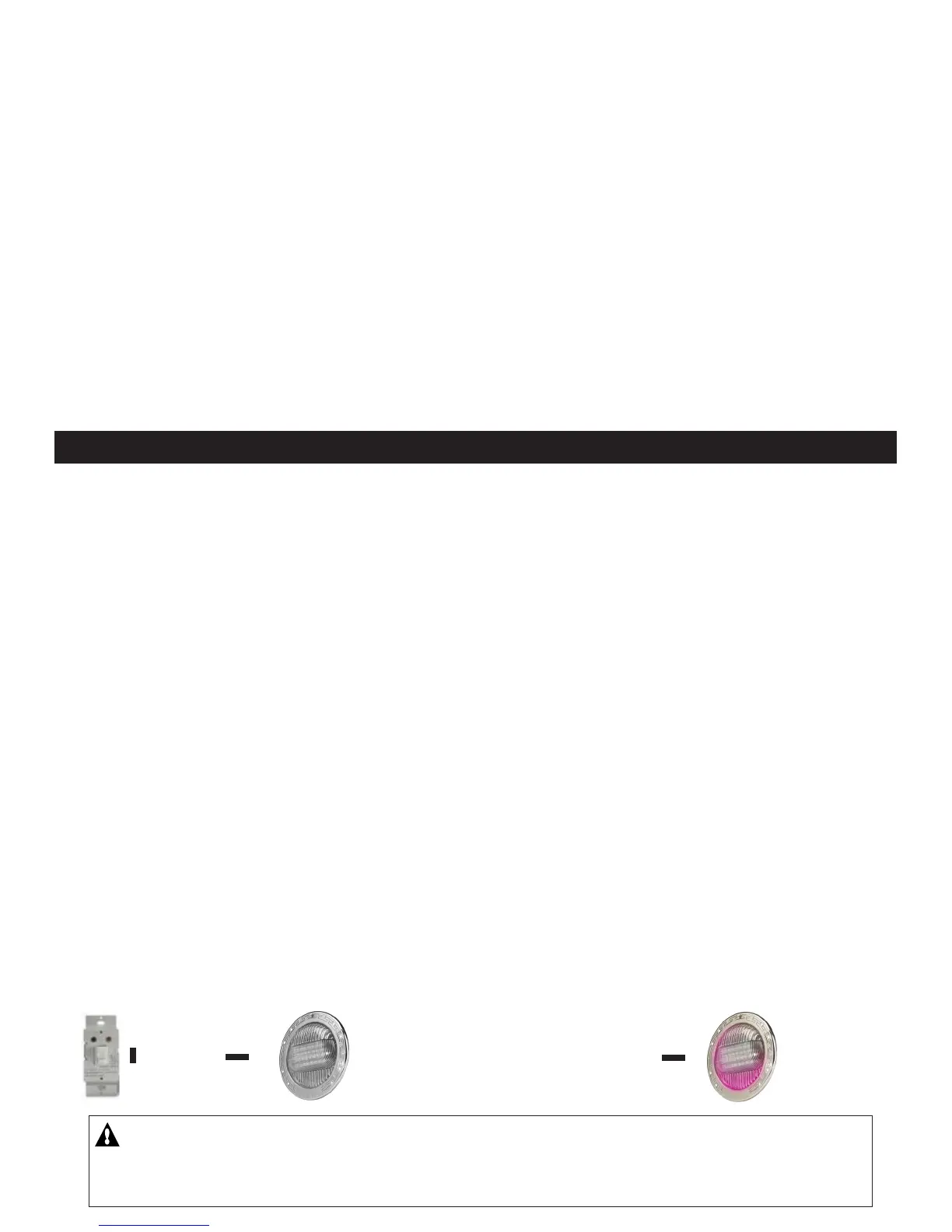

Example: To select California Sunset Mode; turn the switch off and on six successive times.
Tu r n
switch
Off/On
six times
▼
▼
During the off/on switching process, no
illumination will occur, then a white light will
momentarily illuminate.
Followed by the
selected
“California
Sunset Mode”
▼
▼
WARNING: During the off/on switching process, before the selected color is displayed, no illumination will
occur. This operating mode is normal during the switching process. During this period the pool and spa will be dark
and precautions should be taken to avoid unforeseen accidents. Failure to observe this warning may result in
serious injury or death to pool and spa users.
IntelliBrite Pool LED Light models
The two models of IntelliBrite Pool LED light are:
IntelliBrite Pool LED Light, 120 VAC, with integrated 12 VAC transformer, 50 ft. cord length* (P/N 600101)
IntelliBrite Pool LED Light, 12 VAC, (requires 120 VAC to 12 VAC transformer), 50 ft. cord length* (P/N 600104)
(*) cord length vary from 30 ft. to 100 ft.
Using an External Transformer for IntelliBrite 12 VAC Lights
For information about using multiple 12 VAC IntelliBrite lights on an external transformer, see page 10.
