Pentair IntelliBrite Installation And User Guide

10
Using an External Transformer for Multiple IntelliBrite 12 VAC Lights
When using multiple IntelliBrite 12 VAC LED lights on a 300 Watt transformer, it is recommended that no more than two (2)
IntelliBrite pool lights and one (1) IntelliBrite Spa light be used. It is also recommended not to exceed 100 feet of total cable

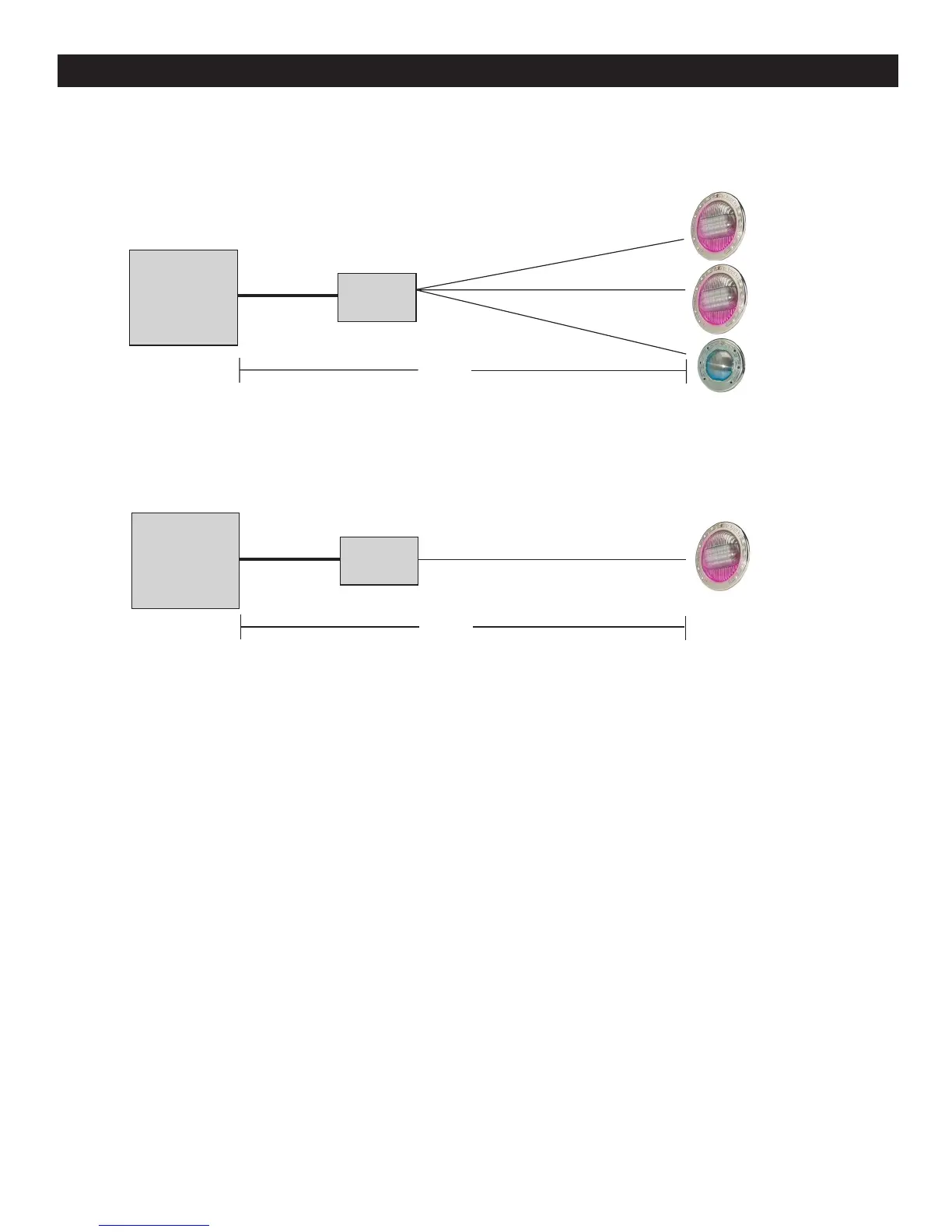

run between the transformer and light (see diagram below).
If a longer cable run is necessary, it is recommended that separate 100 Watt transformers be used for each light with no
more than 200 feet of total cable run between the transformer and light (see diagram below).
300 Watt
Transformer
J Box
12 Gauge
(minimum)
100 ft.
100 Watt
Transformer
J Box
12 Gauge
(minimum)
200 ft.

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
