15. With the hook ends of the circular uni-tension clamp pointing down, spread the clamp and place it in the “U”
recesses of the locking levers. Be sure the hook ends of the clamp are located between the pair of locking levers
as shown below and that the wire clamp is properly engaged with all of the lock levers.
16. Place a cloth on the ground to protect the lens. Turn the light over so the lens is resting on the cloth. Tighten the
bolt and nut until the distance between the ends of the clamp equals ¼-in or less.
17. Install the light assembly into the niche and tighten special pilot screw.
WARNING - Use only the special pilot screw provided with this underwater light. This screw mounts and
electrically grounds the housing securely to the mounting ring and wet niche. Failure to use the screw provided
could create an electrical hazard which could result in death or serious injury to pool users, installers or others
due to electrical shock.
18. Before powering on the IntelliBrite LED light, be sure the IntelliBrite LED light is completely submerged in the
water. The light should never be powered on out of the water for more than 10 seconds.
WARNING - Never operate the underwater light for more than 10 seconds unless it is totally
submerged in water. Without total submersion, the light assembly will get extremely hot and may result in
serious burns or in breakage of the lens. This may result in serious injury to pool users, installers, or
bystanders, or in damage to property.

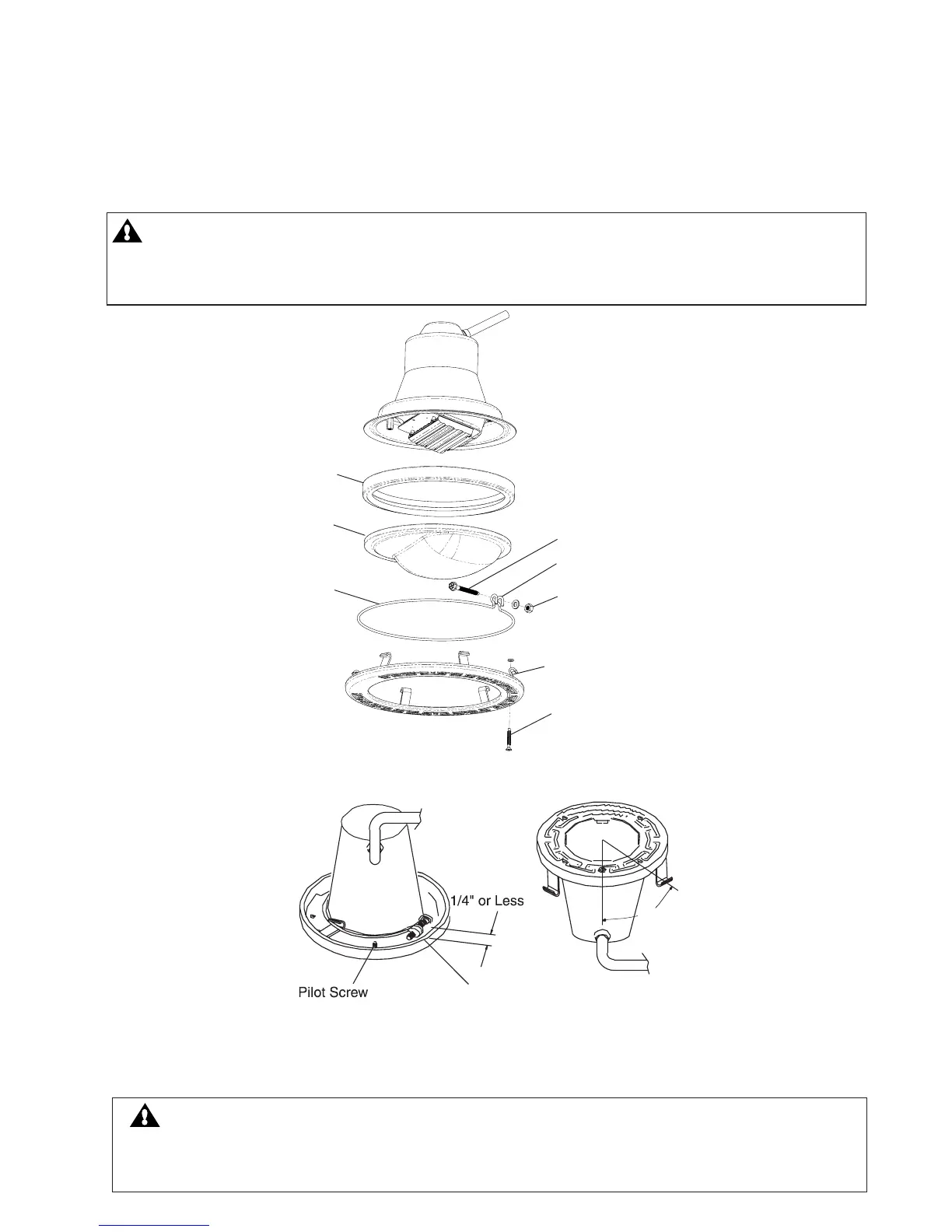

Tighten nut and bolt about 45˚ from
the Pilot Screw between the lock levers.
45˚
Nut
Hook ends
Uni-tension
wire clamp
Lock lever
(x6)
Pilot screw
Lens
Gasket
Bolt
To Next Page
