IntelliFlo Installation and User’s Guide
Manual Mode (Continued)
To change the Set Flow and Set Speed features:
1. Ensure that the green power LED is on.
2. Press the Manual button (LED is on).
3. Set Flow: Use the Up and Down arrow buttons to select Set Flow, then press the Select button to
edit the setting.
4. To change the setting, press the Left and Right arrows to select which digit to modify, then use the
Up and Down arrows to change the selected digit. The preset flow values can be set to 15 to 130
GPM (default 50 GPM).
5. When you are done, press the Enter button to save the changes. To cancel any changes, press the
Escape button to exit edit mode without saving.
6. Set Speed: Use the Up and Down arrows to select Set Speed, then press the Select button to edit
the setting. The preset speed can be set to 400 to 3450 RPM maximum (default 1000 RPM).
7. To change the setting, press the Left and Right arrows to select which digit to modify, then use the
Up and Down arrows to change the selected digit.
8. When you are done, press the Enter button to save the changes. To cancel any changes, press the
Escape button to exit edit mode without saving.
Filter Vacuum
Back
Wash
Manual
Enter
Enter
Select
Start
Stop
Start
Stop
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
MANUAL
12:15
Set SPEED
STOPPED
Filter Vacuum
Back
Wash
Manual
Enter
Select
Start
Stop
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
MANUAL
12:15
Set SPEED
STOPPED
Filter Vacuum
Back
Wash
Manual
Enter
Select
Select
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
MANUAL
12:15
Set SPEED
STOPPED
0010.RPM 1010.RPM0010.RPM

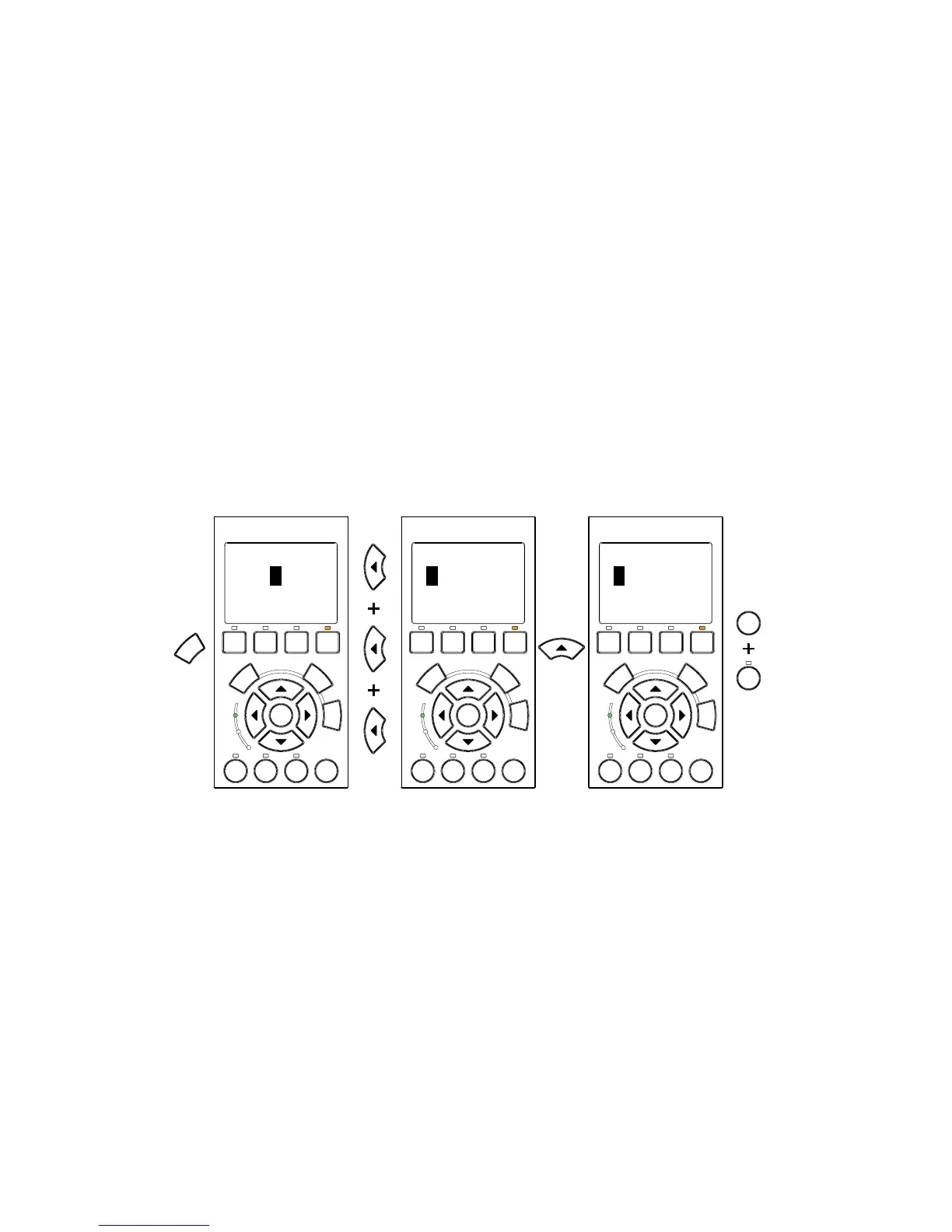

Cursor Hi-lights
in Black
Arrow Keys to
change Values
Hit Enter and
Start/Stop
Start
Stop
Cursor hi-lights in
black
Left/Right arrow
buttons to change
digit
Press the Enter
button to save.
Press Start/Stop
