Pentair IntelliComm User Manual

12
IntelliFlo Installation and User’s Guide

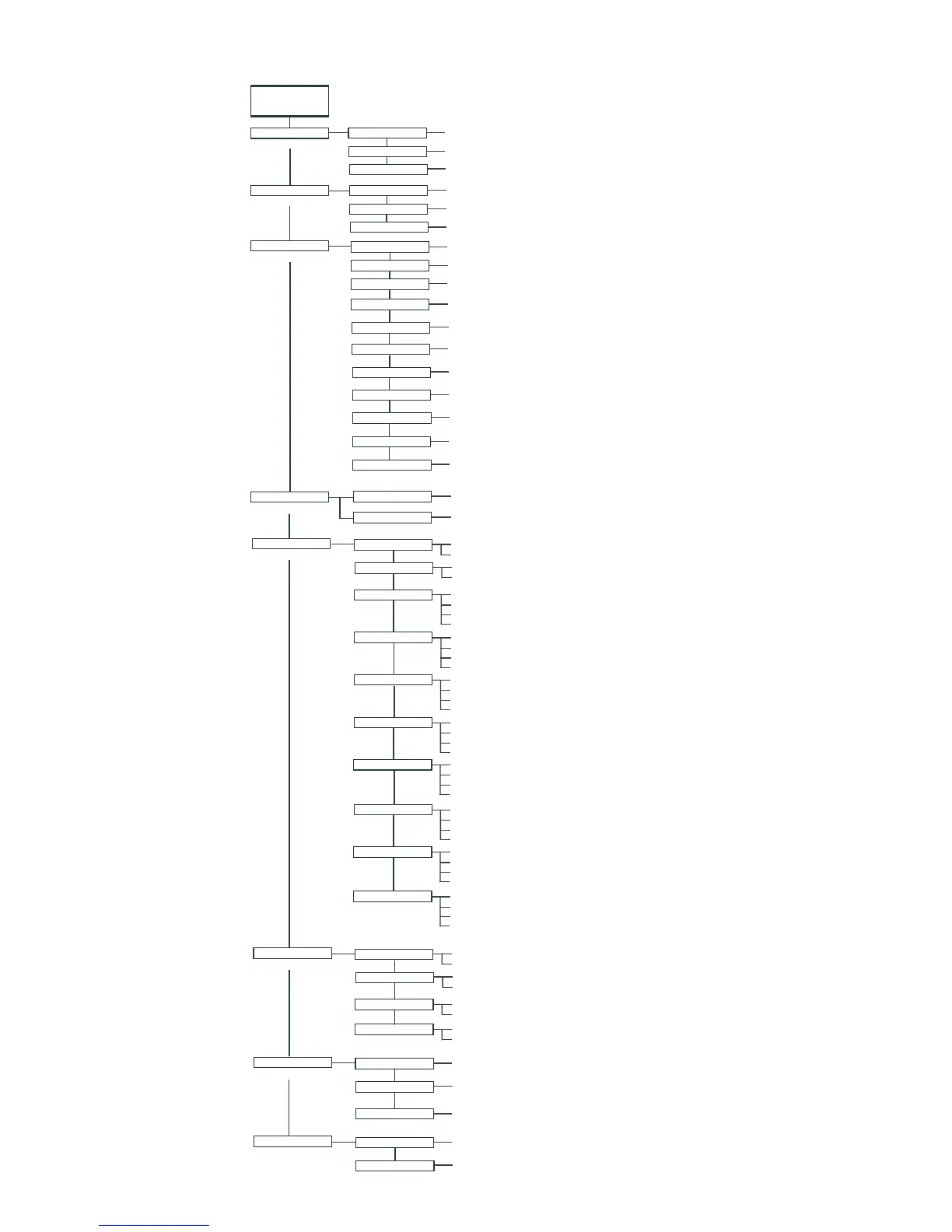

Main Structure
POOL DATA
PRIMING
FILTER
TIME / CONTR
FEATURES
Clock
(hr:min - AM/PM)
Set Flow (15 - 130 gpm)
Features 1
Features 2
Features 3
Features 4
Features 5
Set Duration (0:01 - 10:00)
Set Flow (15 - 130 gpm)
Set Duration (0:01 - 10:00)
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Contrast Level
(0 - 9)
(1 - 50 min.)
Clean Filter Pressure
Cycles per Day
(1 - 4 counts)
(hr:mm - AM/PM)
Start Cycle 1
Stop Cycle 1
Start Cycle 2
Stop Cycle 2
Start Cycle 3
Stop Cycle 3
Start Cycle 4
Stop Cycle 4
(1 - 8 counts)
Turnovers per Day
Address
(1 - 16) [Note: 1-8 when connected to IntelliTouch]
(68˚ - 104˚ F)
Water Temp
Pool Volume
(1 - 1000 Kgal)
Max Priming Flow
(30 - 160 gpm)
(1 - 15 min.)
Max Priming Time
Sys Priming Time
(0 - 5 min.)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
(hr:mm - AM/PM)
Features 6
Features 7
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Features 8
Features 9
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
Set Flow (15 - 130 gpm)
Set Start Time (hr:mm AM/PM)
Set Stop Time (hr:mm AM/PM)
Disable/Enable
M.O Flow
Set Flow (15 - 130 gpm)
Set Run Time (0:01 - 00:59)
Set Interval Time (0:02 - 4:15)
Disable/Enable
EXT. CONTROL
Disable/Enable
Program 1
Program 2
Program 3
Program 4
Set Flow (15 130 gpm) / Time Delay Stop (hr:mn) (0:00 - 0:10)
Disable/Enable (15 - 130 gpm)
Set Flow (15 130 gpm) / Time Delay Stop (hr:mn) (0:00 - 0:10)
Set Flow (15 130 gpm) / Time Delay Stop (hr:mn) (0:00 - 0:10)
Disable/Enable
Disable/Enable
BACKWASH
(15 - 130 gpm)
Backwash Flow
Backwash Duration
Rinse Time
(0:01 - 1:00)
(0:01 - 1:00)
VACUUM
(15 - 130 gpm)
Vacuum Flow
Vacuum Duration
(0:01 - 10:00)
Press MENU button to access menu items
MAIN SCREEN
(page 13)
(page 14)
(page 16)
(page 22)
(page 23)
(page 29)
(page 33)
(page 35)
Set Flow (15 130 gpm) / Time Delay Stop (hr:mn) (0:00 - 0:10)
