IntelliFlo Installation and User’s Guide
3. To enable Feature 3: Press the Select button then the Down arrow button to select Enabled if not
already selected. Press the Enter button to save the setting.
4. To set the flow rate for Feature 3: Press the Down arrow button to select “Set Flow” setting. Press
the Select button to access the setting. To edit the flow rate (GPM) setting, see step 6.
5. To set the start and stop time for Feature 3: Press the Down arrow button to select “Start Time” or
Stop Time” setting. Press the Select button to access the setting. To edit the start and stop time, see
step 6.
6. Press the Select button to change the current value.
7. To change the value, press the Left and Right arrows to select which digit to modify, then use the Up
and Down arrows to change the selected digit.
8. When you are done, press the Enter button to save the changes. To cancel any changes, press the
Escape button to exit edit mode without saving.

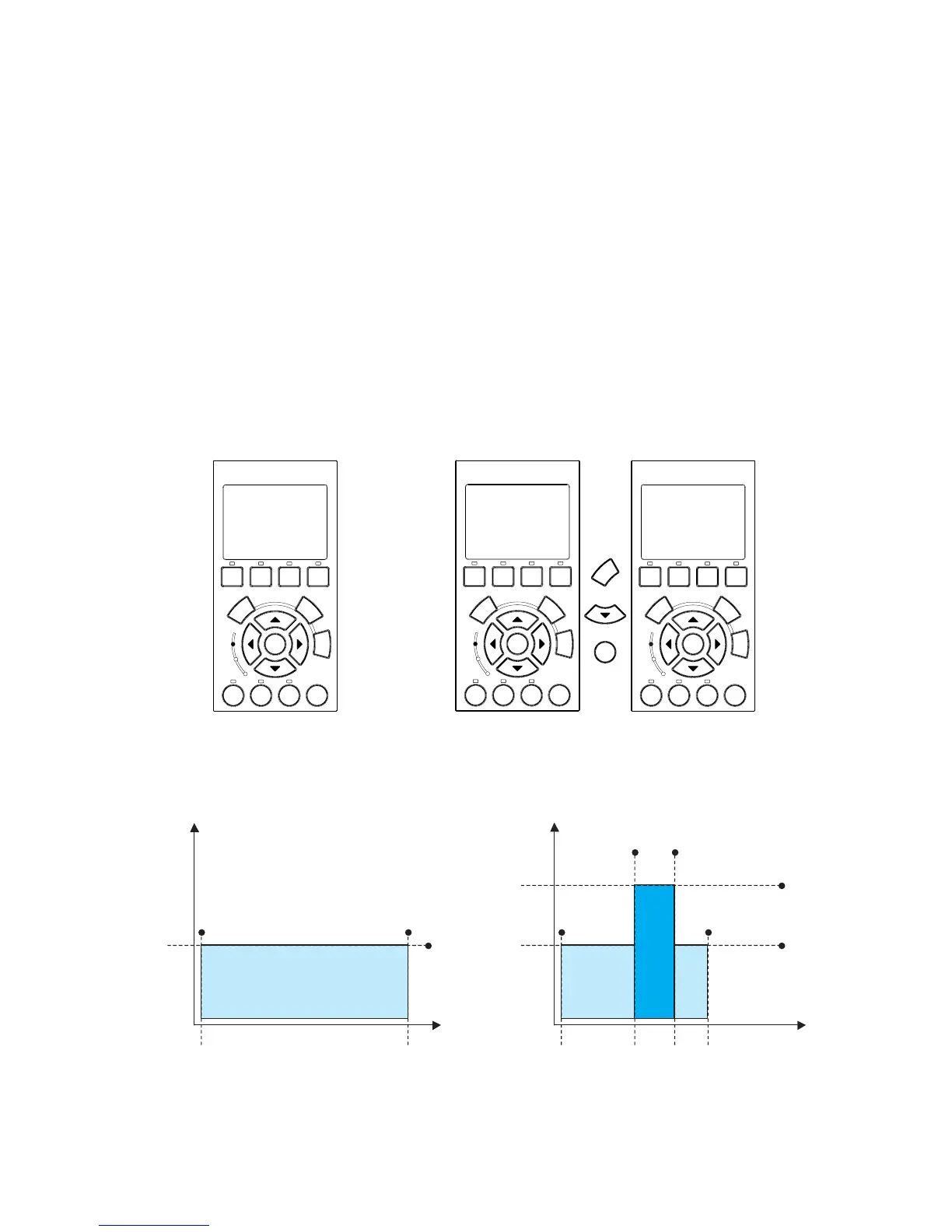

Filter Cycle Examples
Filter
Cycle
Flow
Time
Flow
Time
20 gpm
8:00 am
10:00 PM
Original Filter Cycle w/No Timed Feature
Filter
Cycle
Feature 3
8:00 am
20
gpm
50 gpm
9:45 pm
6:10 pm6:00 pm
New Flow/Time Optimized Filter Cycle
Filter Vacuum
Back
Wash
Manual
Enter
Select
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
Feature 3
4:50
Disabled
Feature 3
Enabled
Start
Stop
Select
Filter Vacuum
Back
Wash
Manual
Enter
Select
Start
Stop
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
5:18
ActivationActivation
Enter
+
+
Filter Vacuum
Back
Wash
Manual
Enter
Select
Reset
Feature
2
Feature
1
Menu
Escape
On
Warn.
Alarm
IntelliFlo
®
Features
5:22
Feature 3
Start
Stop
Note: Refer to page 20 for further explaination.
