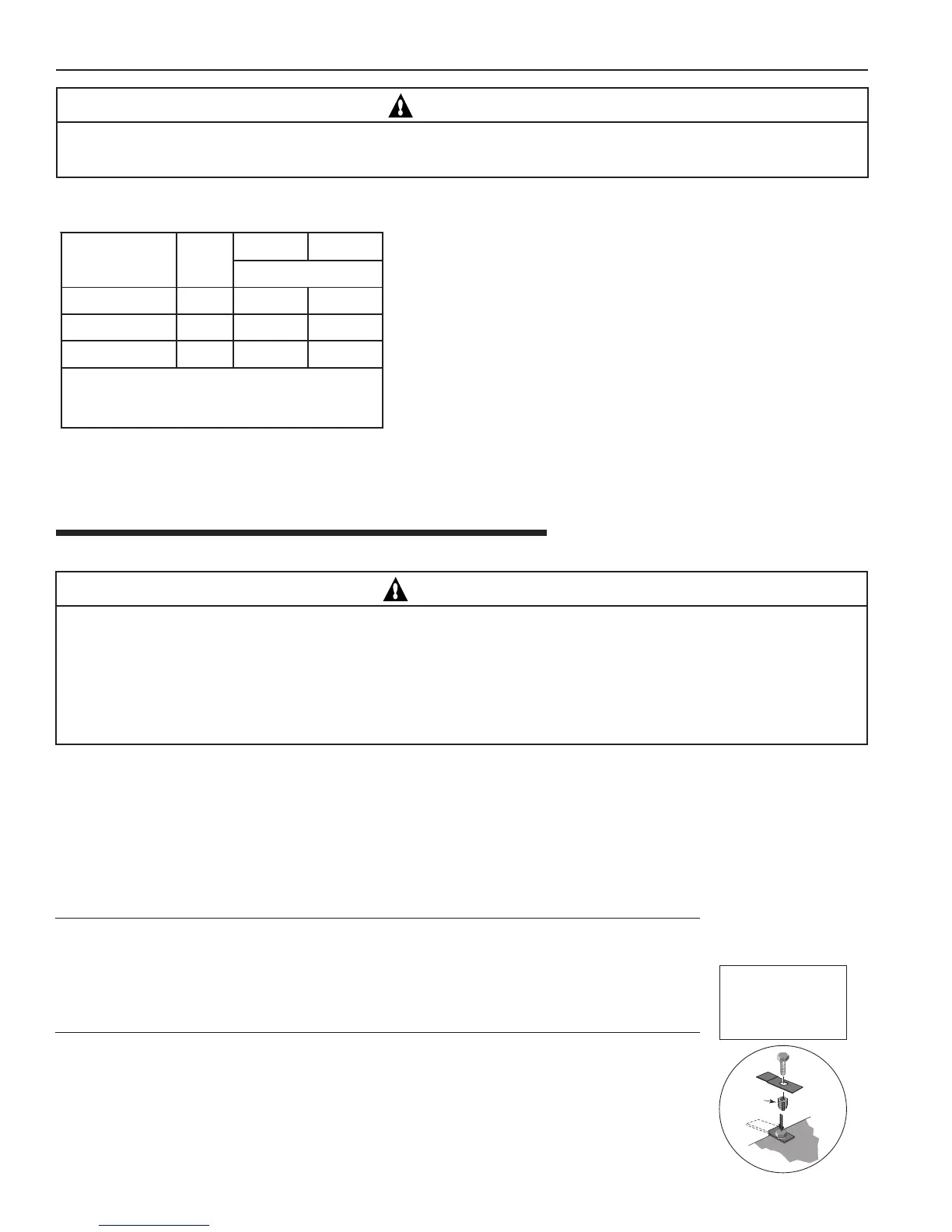

MASTERTEMP Pool and Spa Heater Installation and User’s Guide Rev. N 10/2018
16
OUTDOOR INSTALLATION LOCATED OUTDOORS, USING THE
BUILT-IN STACKLESS VENTING SYSTEM.
WARNING
Risk of explosion if a unit burning propane gas is installed in a pit or other low spot. Propane is heavier than air. Do not install
the heater using propane in pits or other locations where gas might collect. Consult your local building code officials to determine
installation requirements and specific installation restrictions of the heater relative to propane storage tanks and filling equipment.
Installation must meet the requirements for the Standard for the Storage and Handling of Liquid Petroleum Gases, ANSI/NFPA 58
(latest edition) in the U.S., or CAN/CSA B149.2 (latest edition) in Canada. Consult local codes and fire protection authorities about
specific installation restrictions.
Locate the heater on a level surface in an open area that is protected from drainage or run-off. Install the heater in an area
where leaves or other debris will not collect on or around the heater.
To avoid damage to the electronic components in the heater, take care to prevent prolonged exposure to driving sources
of water (such as lawn sprinklers, heavy roof runoff, hoses, etc.). Avoid operation in persistent, extreme, moist or salty
environments. In extreme weather, shut down the heater and disconnect the power to it until the weather has moderated.
In areas subject to hurricanes or very high winds, purchase the Bolt Down Bracket Kit, P/N 460738.
HEATER CLEARANCES – OUTDOOR
IMPORTANT!
• In an outdoor installation it is important to ensure water is diverted from overhanging
eves with a proper gutter/drainage system. The heater must be set on a level foundation
for proper drainage.
• This unit shall not be operated outdoors at temperatures below -20
o
F.
If the heater is located under a roof overhang, there must be at least three (3) feet (1m) of
clearance between the bottom of the overhang and the top of the heater exhaust vent, see Figure
8. If the heater is under a roof overhang, the space around the heater must be open on three sides.
DO NOT, under any circumstances, install the heater under ANY deck.
Lead
Anchor
For Heater mounting
bolts and clamps,
purchase separately
Bolt Down Bracket Kit,
Part No.
460738.
Section 3. Installation Instructions
Table 3.
CAUTION
The use of Flexible Connectors (FLEX) is NOT recommended unless they are properly sized according to the supplier
recommendations for the heater rating.
GAS PRESSURE REQUIREMENTS
erusserPsaGledoM
larutaNenaporP
.C.WsehcnI
telnImumixaM
TM4141
telnImuminiM
TM4 4
dlofinaM
TM1.0±2.0-1.0±2.0-
:ETON .gnitareposiretaehelihwnekatebtsumsgnidaerllA
lliwffosiretaehelihwedamsgnidaerrostnemtsujdaynA
.smelborpecnamrofrepnitluser
