Pentair MASTERTEMP 400 HD - MasterTemp Replacement Parts Overview; Electrical System Component Diagrams; Burner System Component Diagrams; Water System Component Diagrams

MASTERTEMP
™
Pool and Spa Heater Installation and User’s Guide P/N 475106 Rev. A 2/2014
40 | Section

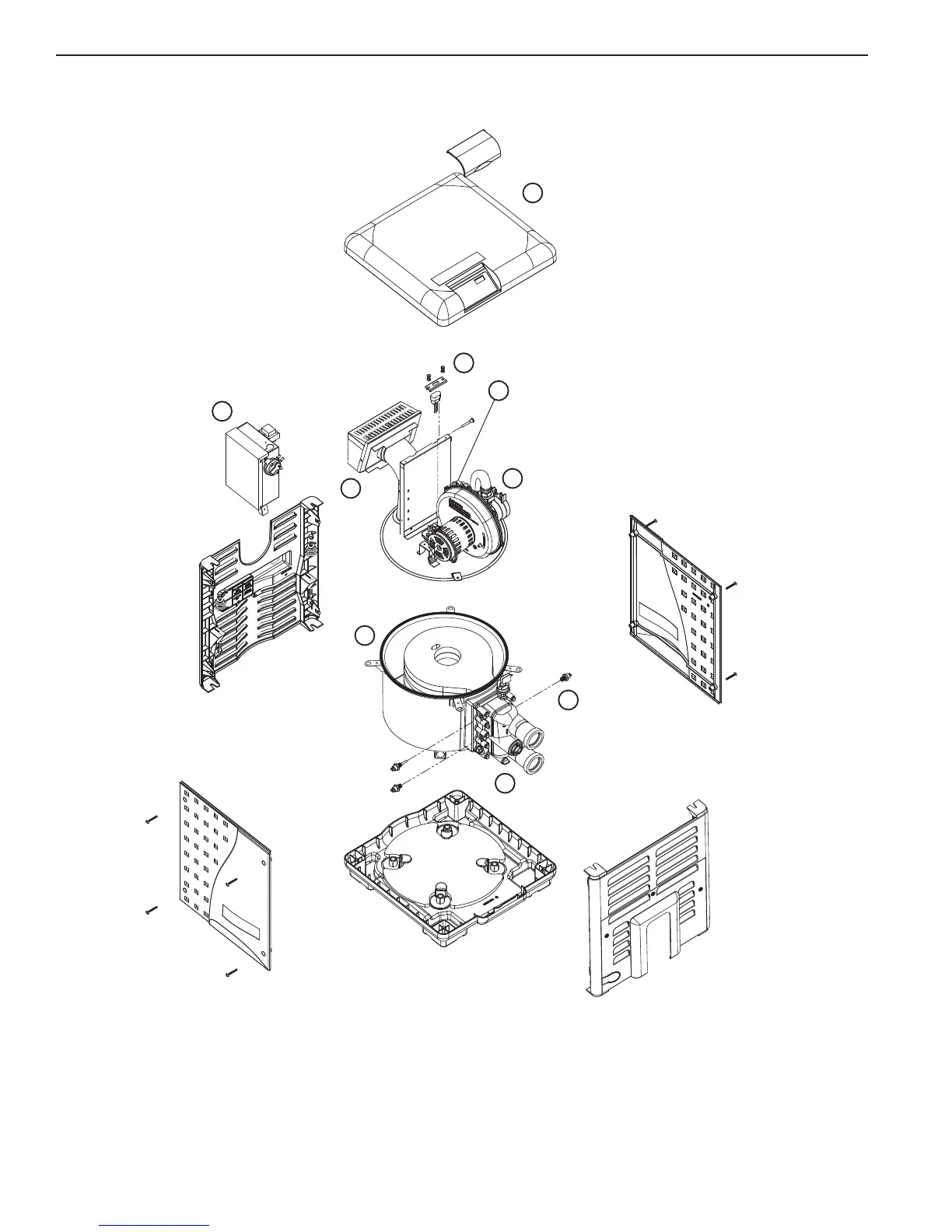

MASTERTEMP REPLACEMENT PARTS
Repair Parts are available from your Pentair dealer.
If your dealer cannot supply you, call Customer Support
For complete
Electrical System
parts breakdown
(Key Nos. 1 through 4),
see Page 44.
For complete
Burner System
parts breakdown
(Key Nos. 5 through 7),
see Page 42.
For complete
Water System
parts breakdown
(Key Nos. 8 through 9),
see Page 43.
1
2
3
5
6
4
8
9
7
5. Replacement Parts
