Pentair MASTERTEMP User Manual

P/N 472592 Rev. C 10-5-07
10
Section 3. Installation
These installation instructions are designed for use by qualified personnel only, trained especially for installation of this
type of heating equipment and related components. Some states require installation and repair by licensed personnel. If
this applies in your state, be sure your contractor bears the appropriate license. See Figure 2 for Outdoor and Indoor
Installations.

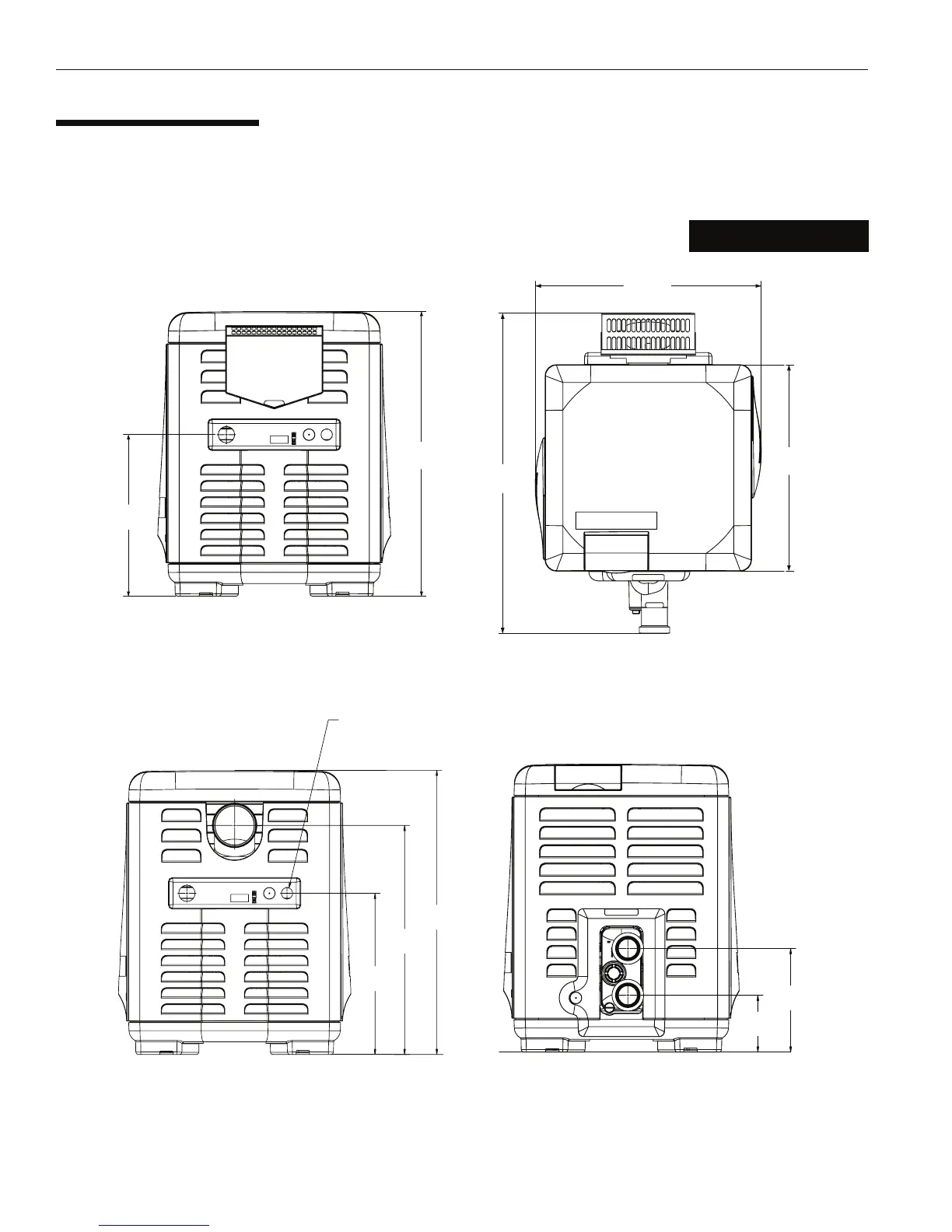

SPECIFICATIONS
DIMENSIONS IN INCHES
Figure 2.
21.0"
(53.3 cm)
32.61"
(82.8 cm)
23.02"
(58.5 cm)
28.15"
(71.5 cm)
16"
(40.6 cm)
TOPFRONT
EXHAUST SIDE
PLUMBING SIDE
10.13"
(25.7 cm)
5.6"
(14.2 cm)
ELECTRICAL
CONDUIT PORT
28.2"
(71.6 cm)
22.7"
(57.7 cm)
16.0"
(40.6 cm)

Pentair MASTERTEMP Specifications

General

Model	MASTERTEMP
Category	Swimming Pool Heater
Brand	Pentair
BTU Ratings	125, 000 - 400, 000 BTU/hr
Fuel Type	Natural Gas or Propane
Display	Digital display
Water Flow Rate	20-120 GPM
Efficiency	82% (Thermal Efficiency)
Ignition	Electronic
Voltage	120V or 240V
Operating Pressure	50 PSI (Maximum)
Temperature Range	104°F
Dimensions	Varies by model
Weight	Varies by model
Warranty	Limited Warranty
