Section 3. Installation

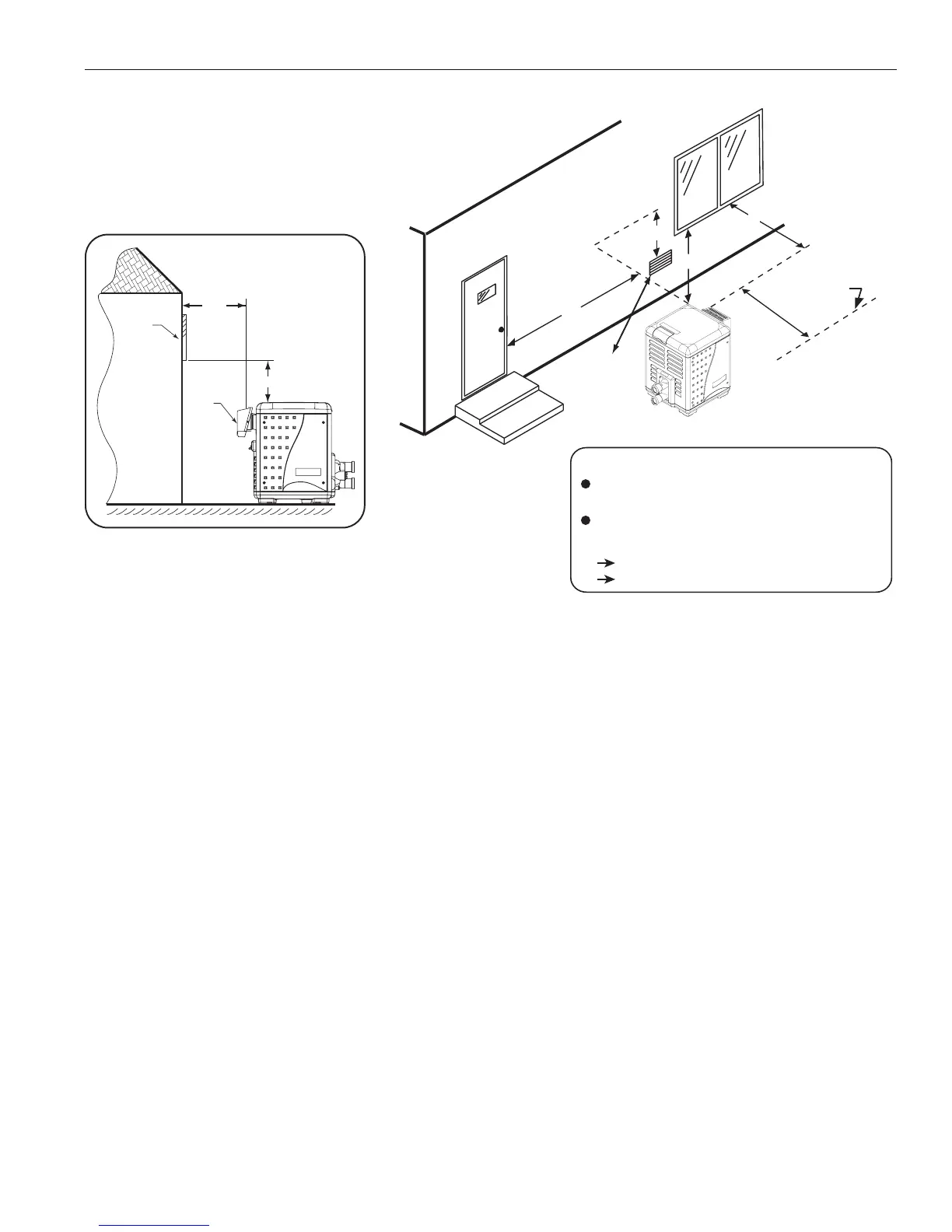

Figure 9.
VENTING GUIDELINES
OUTDOOR INSTALLATION
Must be at least 3 ft. above any forced
air inlet located within a 10 ft. radius.
Vent Termination:
Must be located 4 feet away from the building wall
openings, and at the following distances away from
any door, window, or gravity air inlet:
4 ft. below,
4 ft. horizontally
Check local building codes
for setback requirements.
Force
Air Inlet
Property Line
4'
4'
4'
3'
SIDE VIEW
Building
Window
Exhaust Grill
(Vent)
4 ft.
4 ft.
To Next Page
