6
P/N 38033 Rev. C 12-1-00

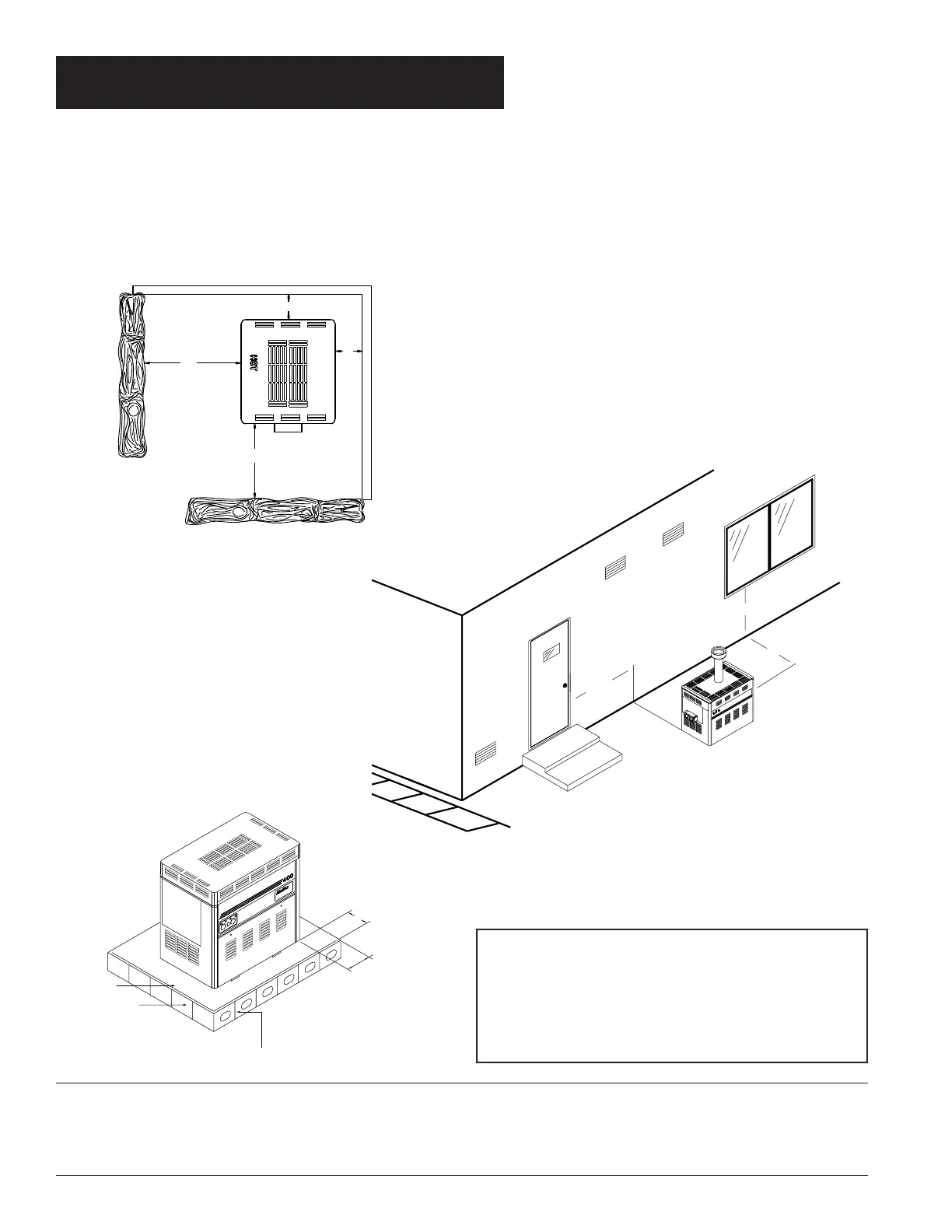

Installation - Outdoors
The heater should not be installed closer than 6 inches to
any fences, walls or shrubs at any side or back, nor
closer than 18 inches at the plumbing side. A minimum
clearance of 24 inches must be maintained at the front of
the heater.
Heater must be installed on a non-
combustible floor and at least six inches
from any combustible material or wall.
IMPORTANT!
When installing the heater, consider that high winds can roll over or deflect off adjacent buildings
and walls. Normally, placing the heater at least three (3) feet from any wall will minimize downdraft.
If it must be installed next to a wall, you should consider installing an outdoor vent kit.
Do not install the heater in locations which will permit
the accumulation of leaves or other combustible material
around the base of the heater.
Do not install the heater in a location that will allow
sprinklers to operate near the heater equipment since the
water may cause damage to the controls and/or
electronics.
Do not install the heater under an overhang of less than
three (3) feet from the top of the heater. The area under
the overhang must be open on three sides. Overhangs
must be such that flue products are not diverted into
living spaces. Heaters installed under overhangs must be
protected from direct roof water drainage by gutters and
the like.
NOTE
From the point where the flue products leave the
heater, that point MUST be a minimum of (4)
feet below, and (4) feet horizontally from or (1)
foot above any door, window or gravity inlet to a
building.
24"
DOOR
18"
6"
6"
SHEET METAL
BLOCKS
(LAID WITH ENDS UNSEALED AND JOINTS MATCHED
HOLLOW MASONARY BLOCKS, NOT LESS THAN 4" THICK
HIGH PERFORM
ANCE HEATER
24 GA. (MIN.) GALVANIZED SHEET METAL.
FOR AIR CIRCULATION). COVER BLOCKS WITH
6" Min.
6" Min.
TM
BASE FOR USE ON
COMBUSTIBLE FLOORS
HOT
POW
ER
POOL TEM
PERATURE
SPA/AUXILIARY TEMPERATURE
POOL
SPA
HOT
COLD
POW
ER
PRESSURE
HOT
OFF
COLD
HEAT
HI-LIM
IT
VENTING GUIDELINES
OUTDOOR INSTALLATION
4' Min.
4' Min.(HORIZ.) CLEARANCE
4' Min.(BELOW)
