9
Rev. C 12-1-00 P/N 38033
Air Requirements
Vent Requirements
A vent pipe extension of the same size must be
connected to the draft hood and extended at least
two (2) feet above any obstacle within a 10 foot radius
of the vent. The vent should then be capped with an
approved weather cap.
NOTE
Do not alter the heater draft hood in any way; it
has been designed by the manufacturer and
approved by A.G.A. for maximum efficiency.
To insure efficient venting, use a 45° elbow for
horizontal installation when attaching the vent pipe
to the draft hood.
ledoM
noitsubmoCrofriA
.nI.qS
noitalitneVriA
.nI.qS
051051051
002002002
052052052
003003003
053053053
004004004
Air Requirements
When a heater is installed indoors, two air openings
must be provided. Ideally one opening should be
placed at the bottom and one at the top of the room
to allow for a free flow of air. If other gas
appliances are installed in the same room, you must
check to see that they have been provided with the
proper size openings, otherwise they may use the air
intended for your pool heater.

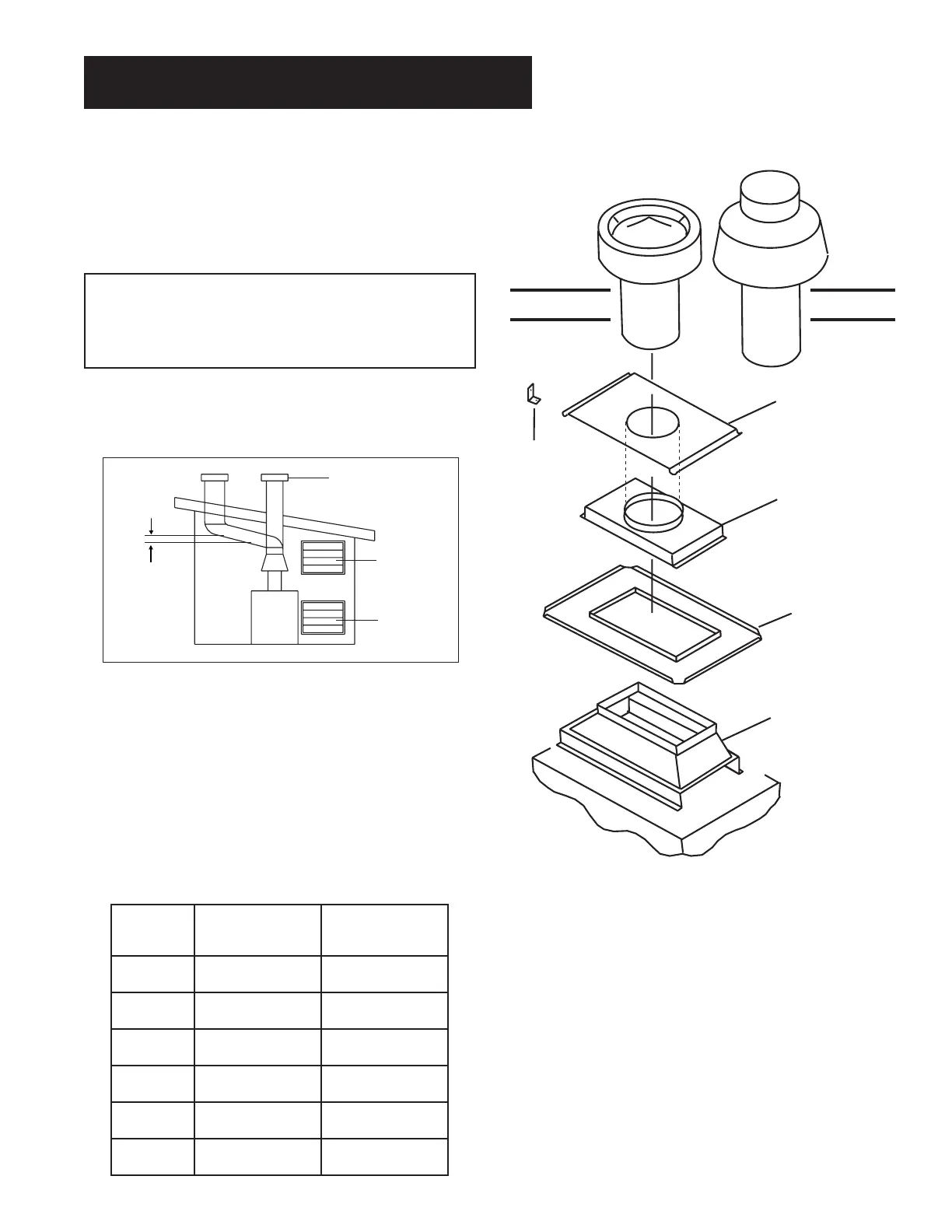

Vent Installation
The MiniMax heater is shipped standard as
an outdoor stackless unit. To install the
outdoor vent, or the indoor draft hood:
1. Remove the stackless top.
2. Install adapter (with screws).
3. Install the top cover.
4. Install the vent.
5. Use the screws to secure the vent assembly.
Heater
Front
Front
Flue
Collector
Flue
Adaptor
Inner
Panel
Top
Cover
"L"
Bracket
1/4” Rise
per Foot
Air Supply
Gas Combustion
Air Supply
Ventilation
Vent Cap and Pipe
Furnished by Installer
To Next Page
