38 39

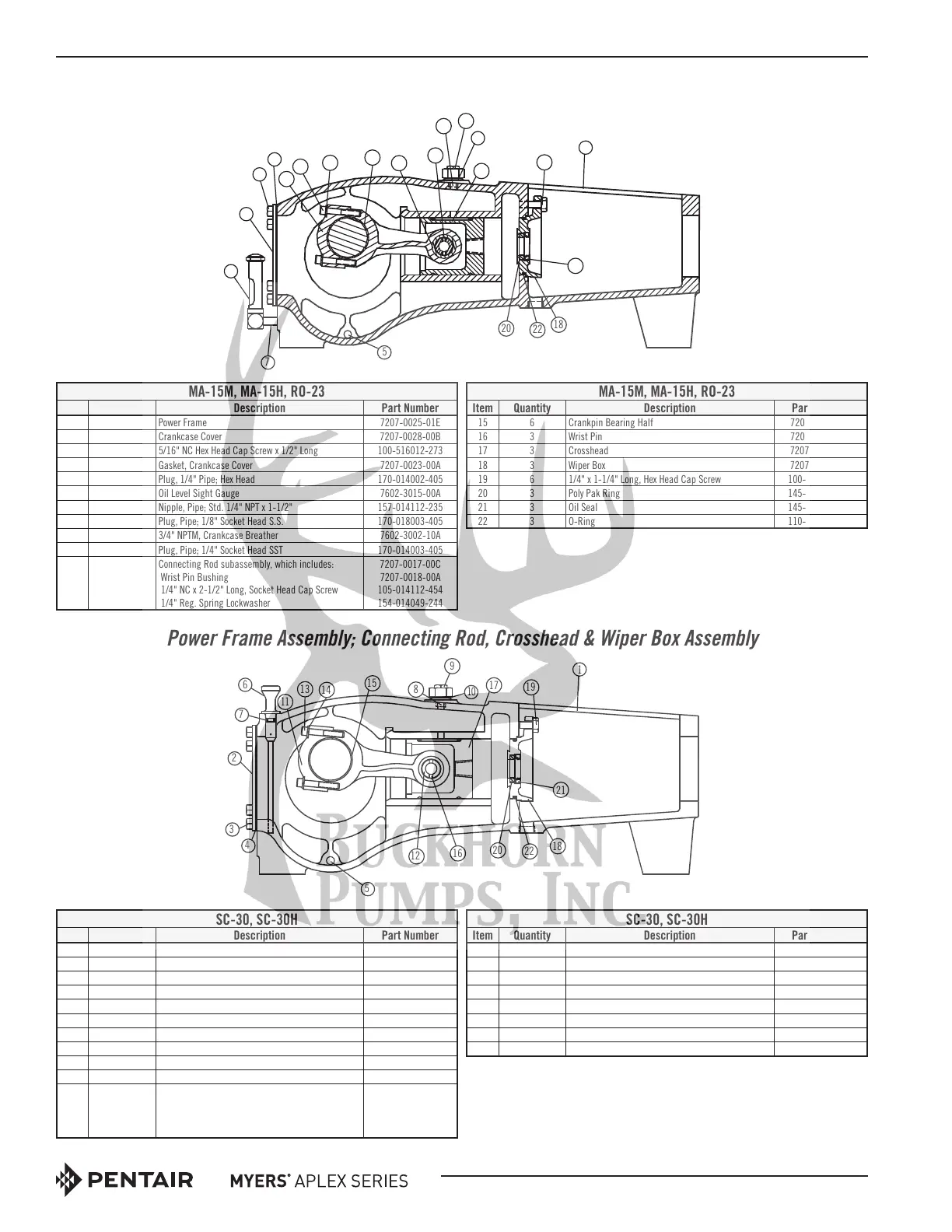

Power Frame Assembly; Connecting Rod, Crosshead & Wiper Box Assembly
MA-15M, MA-15H, RO-23
Item Quantity Description Part Number
1 1 Power Frame 7207-0025-01E
2 1 Crankcase Cover 7207-0028-00B
3 8 5/16" NC Hex Head Cap Screw x 1/2" Long 100-516012-273
4 1 Gasket, Crankcase Cover 7207-0023-00A
5 2 Plug, 1/4" Pipe; Hex Head 170-014002-405
6 1 Oil Level Sight Gauge 7602-3015-00A
7 1 Nipple, Pipe; Std. 1/4" NPT x 1-1/2" 157-014112-235
8 3 Plug, Pipe; 1/8" Socket Head S.S. 170-018003-405
9 1 3/4" NPTM, Crankcase Breather 7602-3002-10A
10 1 Plug, Pipe; 1/4" Socket Head SST 170-014003-405
11
12
13
14
3
1
2
2
Connecting Rod subassembly, which includes:
Wrist Pin Bushing
1/4" NC x 2-1/2" Long, Socket Head Cap Screw
1/4" Reg. Spring Lockwasher
7207-0017-00C
7207-0018-00A
105-014112-454
154-014049-244
MA-15M, MA-15H, RO-23
Item Quantity Description Part Number
15 6 Crankpin Bearing Half 7207-0024-00K
16 3 Wrist Pin 7207-0019-00A
17 3 Crosshead 7207-0010-00C
18 3 Wiper Box 7207-0012-00B
19 6 1/4" x 1-1/4" Long, Hex Head Cap Screw 100-014114-273
20 3 Poly Pak Ring 145-034114-999
21 3 Oil Seal 145-034138-999
22 3 O-Ring 110-000229-201
11
13
14
15
12
17
19
1
16
20
22
18
21
2
3
4
5
6
7
10
8
9
11
13
14
15
12
17
19
1
16
20
22
18
21
2
3
4
5
6
7
10
8
9
Power Frame Assembly; Connecting Rod, Crosshead & Wiper Box Assembly
SC-30, SC-30H
Item Quantity Description Part Number
1 1 Power Frame 7207-0025-01K
2 1 Crankcase Cover 7207-0220-00B
3 8 5/16" NC Hex Head Cap Screw x 1/2" Long 100-516012-273
4 1 Gasket, Crankcase Cover 7207-0023-00A
5 2 Plug, 1/4" Pipe; Hex Head 170-014002-405
6 1 Oil Level Dipstick 7207-0050-00A
7 1 O-Ring 110-000110-201
8 3 1/8" Pipe Plug, Socket Head 170-018003-405
9 1 3/4" NPTM, Crankcase Breather 7602-3002-10A
10 1 1/4" Pipe Plug, Socket Head, Steel 170-014003-405
11
12
13
14
3
1
2
2
Connecting Rod subassembly, which includes:
Wrist Pin Bushing
Connecting Rod Bolts
1/2" Spring Lockwasher
7207-0017-00C
7207-0018-01A
105-14112-454
154-014049-244
SC-30, SC-30H
Item Quantity Description Part Number
15 3 Crankpin Bearing Pair 7207-0024-00K
16 3 Wrist Pin 7207-0019-00A
17 3 Crosshead 7207-0010-00C
18 3 Wiper Box 7207-0012-00B
19 6 1/4" x 1-1/4" Long, Hex Head Cap Screw 100-014114-273
20 3 Poly Pak Ring 145-034114-999
21 3 Oil Seal 145-034138-999
22 3 O-Ring 110-000229-201
