Pentair myers aplex Series User Manual

40 41

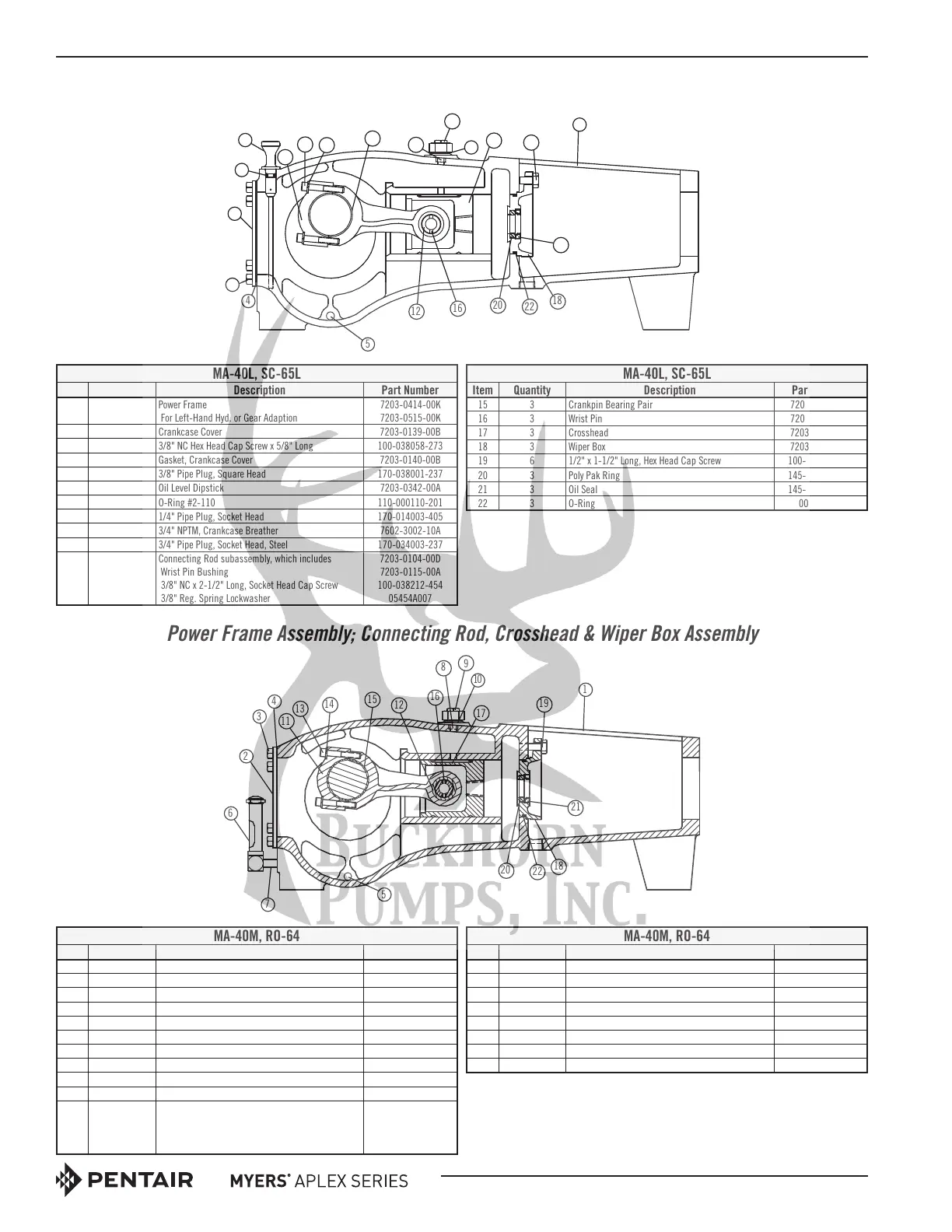

Power Frame Assembly; Connecting Rod, Crosshead & Wiper Box Assembly
MA-40L, SC-65L
Item Quantity Description Part Number
1 1
1
Power Frame
For Left-Hand Hyd. or Gear Adaption
7203-0414-00K
7203-0515-00K
2 1 Crankcase Cover 7203-0139-00B
3 8 3/8" NC Hex Head Cap Screw x 5/8" Long 100-038058-273
4 1 Gasket, Crankcase Cover 7203-0140-00B
5 2 3/8" Pipe Plug, Square Head 170-038001-237
6 1 Oil Level Dipstick 7203-0342-00A
7 1 O-Ring #2-110 110-000110-201
8 3 1/4" Pipe Plug, Socket Head 170-014003-405
9 1 3/4" NPTM, Crankcase Breather 7602-3002-10A
10 1 3/4" Pipe Plug, Socket Head, Steel 170-034003-237
11
12
13
14
3
1
2
2
Connecting Rod subassembly, which includes
Wrist Pin Bushing
3/8" NC x 2-1/2" Long, Socket Head Cap Screw
3/8" Reg. Spring Lockwasher
7203-0104-00D
7203-0115-00A
100-038212-454
05454A007
MA-40L, SC-65L
Item Quantity Description Part Number
15 3 Crankpin Bearing Pair 7203-0160-00K
16 3 Wrist Pin 7203-0116-00A
17 3 Crosshead 7203-0105-00C
18 3 Wiper Box 7203-0108-00C
19 6 1/2" x 1-1/2" Long, Hex Head Cap Screw 100-012112-273
20 3 Poly Pak Ring 145-114178-999
21 3 Oil Seal 145-114206-999
22 3 O-Ring 001500121
11
13
14
15
12
17
19
1
16
20
22
18
21
2
3
4
5
6
7
10
8
9
11
13
14
15
12
17
19
1
16
20
22
18
21
2
3
4
5
6
7
10
8
9
Power Frame Assembly; Connecting Rod, Crosshead & Wiper Box Assembly
MA-40M, RO-64
Item Quantity Description Part Number
1 1 Power Frame 7203-0103-50K
2 1 Crankcase Cover 7203-0139-00B
3 8 3/8" NC Hex Head Cap Screw x 5/8" Long 100-038058-273
4 1 Gasket, Crankcase Cover 7203-0140-00B
5 2 3/8" Pipe Plug, Square Head 170-038001-237
6 1 Oil Level Sight Gauge 7602-3000-00A
7 1 1/4" Pipe Nipple, Std. Wt. – 2" Long 157-014112-235
8 3 1/4" Pipe Plug, Socket Head 170-014003-405
9 1 3/4" NPTM, Crankcase Breather 7602-3002-10A
10 1 3/4" Pipe Plug, Socket Head, Steel 170-034003-237
11
12
13
14
3
1
2
2
Connecting Rod subassembly, which includes:
Wrist Pin Bushing
3/8" NC x 2-1/2" Long, Socket Head Cap Screw
3/8" Reg. Spring Lockwasher
7203-0104-00D
7203-0115-00A
100-038212-454
05454A007
MA-40M, RO-64
Item Quantity Description Part Number
15 3 Crankpin Bearing Pair 7203-0160-00K
16 3 Wrist Pin 7203-0116-00A
17 3 Crosshead 7203-0105-00C
18 3 Wiper Box 7203-0108-00C
19 6 1/2" x 1-1/2" Long, Hex Head Cap Screw 100-012112-273
20 3 Poly Pak Ring 145-114178-999
21 3 Oil Seal 145-114206-999
22 3 O-Ring 001500121
