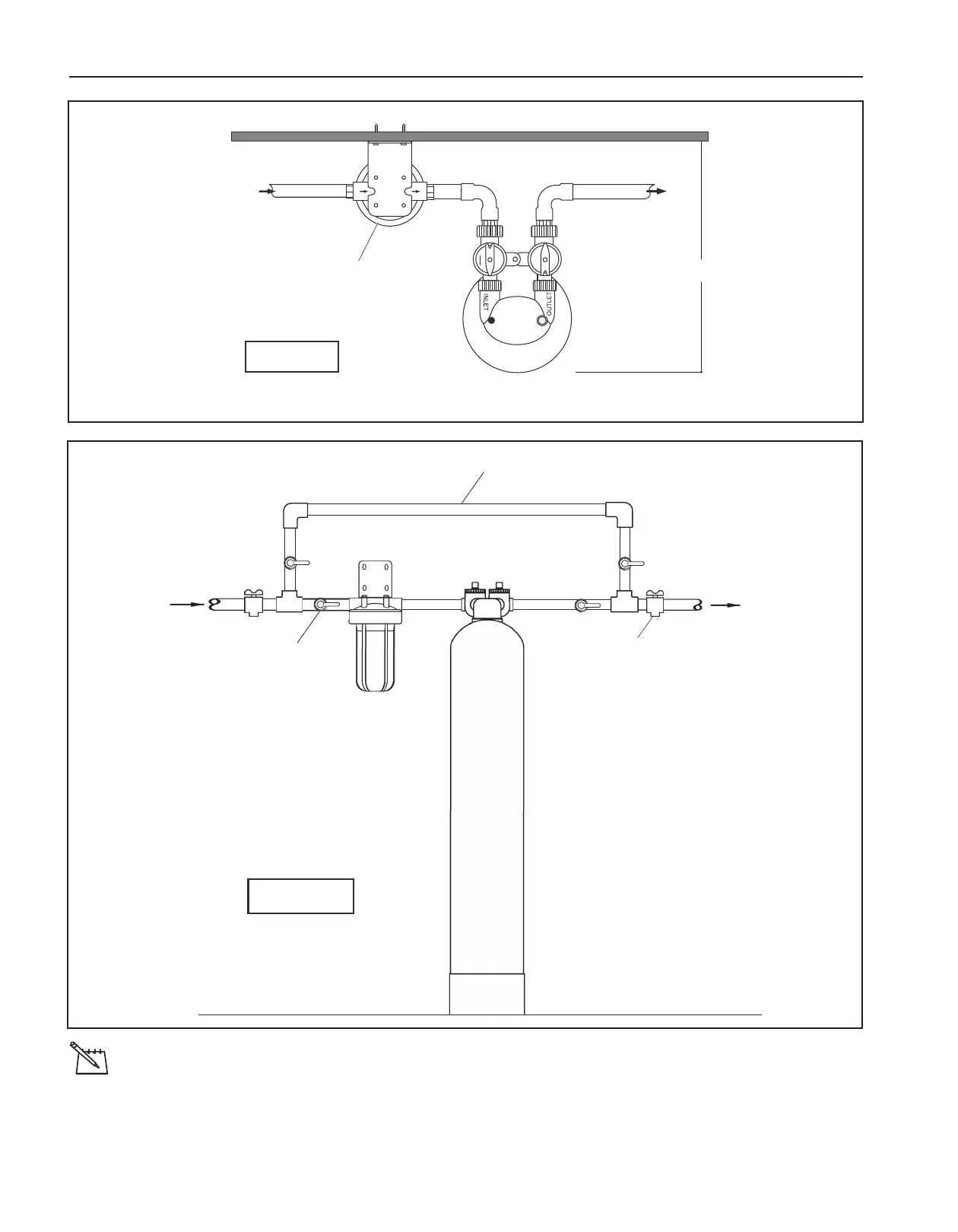

INSTALLATION OVERVIEW
IN
OUT
Wall Wall
Incoming
Water
Supply
Sediment Filter
Carbon Water
Filter System
Top View
19”
Front View
Shut Off Valves
Sediment Filter
Water to Home
Water
Filter
Bypass
Outgoing
Water to
House
IN
OUT
Wall Wall
Incoming
Water
Supply
Sediment Filter
Carbon Water
Filter System
Top View
19”
Front View
Shut Off Valves
Sediment Filter
Water to Home
Water
Filter
Bypass
Outgoing
Water to
House
Sediment lter position is at the discretion of your professional installer. As a general guideline, the sediment prelter is
typically installed in the "pre" position (as shown above) for well water applications. For city water applications, the sediment
lter is typically installed in the "post" position after the Carbon Water Filter System.
Note
4 • Whole House Water Filter System
