Pentair Sta-Rite DMC Series User Manual

10
Key DMC-2-100 DMC-2-150 DMC-2-200
No. Description Qty. 1 HP 1-1/2 HP 2 HP
1 Motor 1 77026 77145 77024*
2 Slinger 1 17351-0009 17351-0009 17359-0009
3 3/8-16x1” Capscrew 8 † † †
4 Seal Plate/Bracket 1 27433 27433 27433
5 Gasket 1 26360 26360 26360
6 Shaft Seal 1 17038 17038 17038
7 Rear Impeller 1 31290 31289 31290
8 Rear Diffuser 1 26322 26322 26322
9 Shaft Extension 1 34834 34834 34834
10 Front Diffuser 1 86807 86807 86807
11 Front Impeller 1 27387 27387 27387
12 Pump Body 1 27369 27369 27369
13 1/4” -18 Square Head Pipe Plug 2 † † †
14 1”–11-1/2 Square Head Pipe Plug 1 † † †
15 Motor Base 1 34867 34867 34867*

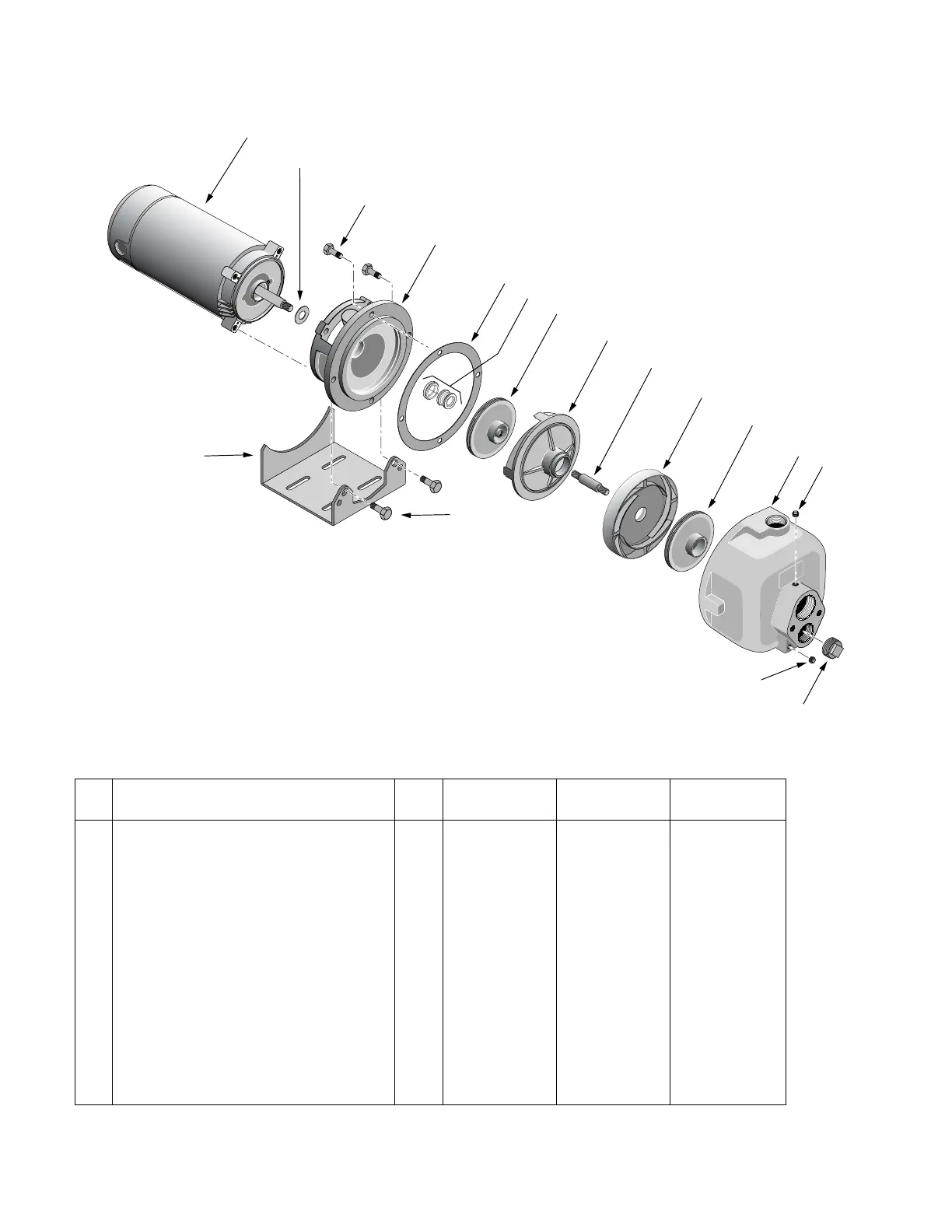

Repair Parts
† Purchase locally.
* 3HP DMC-2-200-3 uses 3-phase motor 76909 and motor base 35004.
REPAIR PARTS
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
4286 1202
