3. Removing top cover (0-A301)

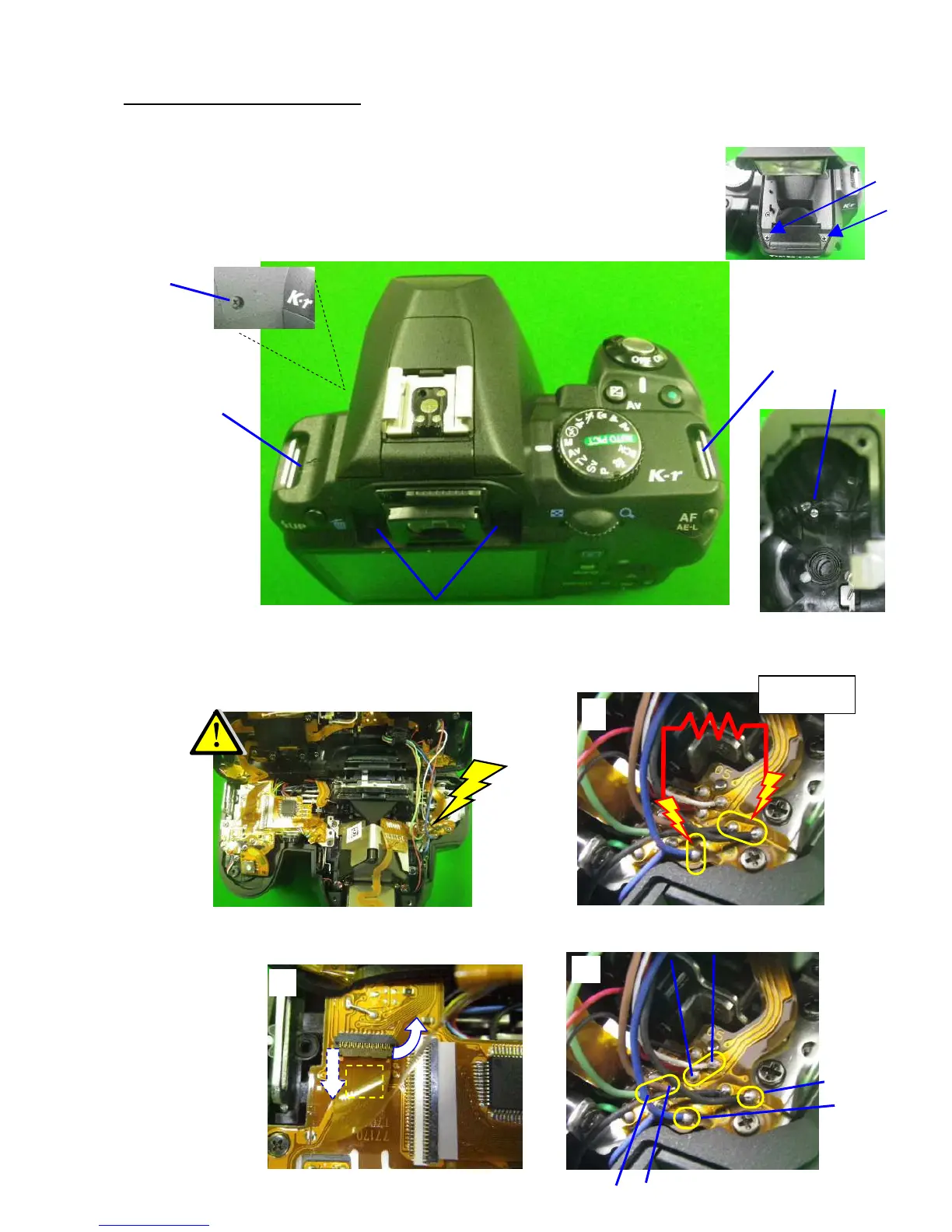

① Unscrew A68 x2 (1.7x6.0)
② Unscrew A196 (1.7x8.0)
③ Unscrew A255 (1.7x4.5)
④ Unscrew A187 (1.7x5.0)
⑤ Unscrew TY-CNL-D1.7x4.5 Ni（In the battery box）
[CAUTION] Be careful the electric shock where flash circuit board is inside the cover.
⑥ Discharge the main capacitor.
*Rift up the A301 and discharge the main capacitor by using 100Ω-1kΩ resistor.
(Discharge between Blue and Black soldering land on T750.)
⑦ Disconnect T50 (Flip lock) and peel off the double-stick tape.
⑧ Unsolder lead wire x6
⑨ A301
⑦
