77420 - 11/107 -

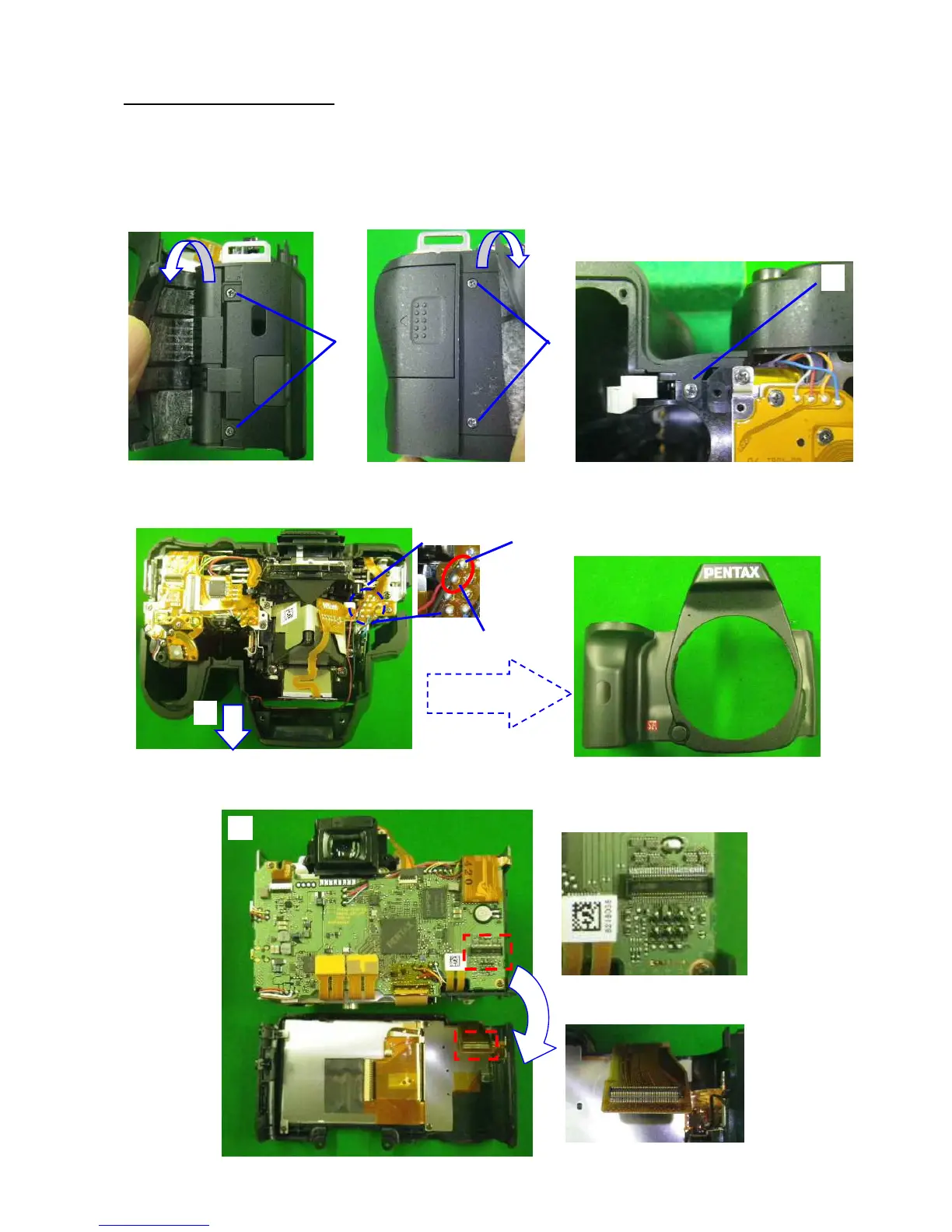

4. Removing A150 and A201
①Set the AF mode lever to [AF]
②Peel off the G rubber (A161) and unscrew (CNL-D 1.7x4.0 x2)
③Peel off the G rubber (A151) and unscrew (TY-CNL-D 1.7x4.5 x2)
④The bottom side of camera, unscrew (TY-CNL-D 1.7x4.0)
⑤Unsolder lead wire x2 (Red, Black）
⑥A150 --- Remove A150 while lifting side of grip part as shown in figure below.
⑦A201 --- Remove A201 while lifting side of both as shown in figure below.
⑧Disconnect T920 (Plug-in)
④
To Next Page
