77420 - 12/107 -
⑨Unscrew CNL-D1.7x3.0 x2
⑩M311

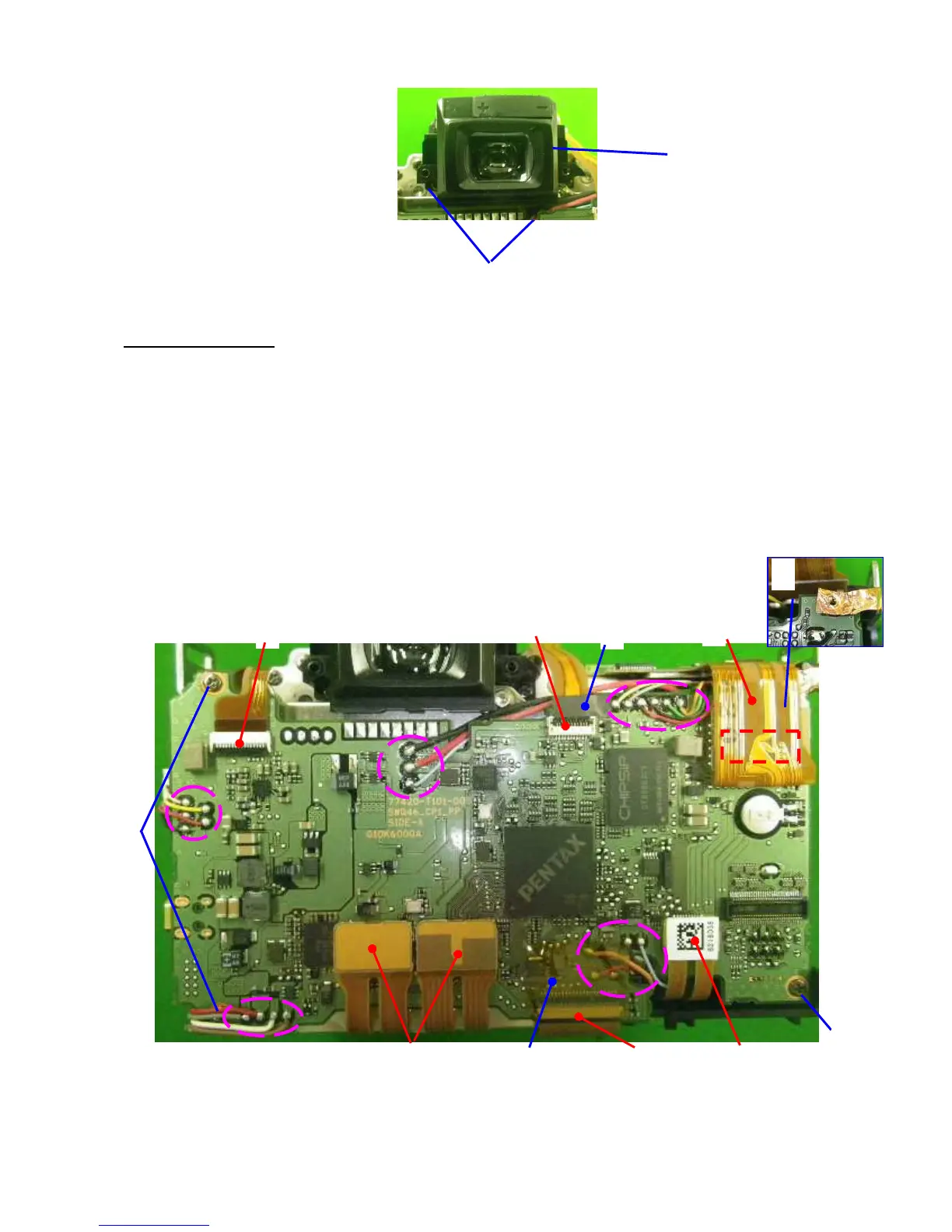

5. Removing 0-T100
① Peel off PI tape (U3 (13x17))
② Peel off PVF tape (A38 (3.8x10))
③ Disconnect flexible board (2 positions Flip lock）
④ Disconnect flexible board (4 positions Plug-in）
[CAUTION] The flex from CCD block should be taken care (no stress, no bend), otherwise it will affect
the performance of CCD.
⑤ Unsolder lead wire x24
⑥ Unscrew CNL-D 1.7x2.5 x3
⑦ Unscrew TY-CNL-D 1.7x3.5
⑧ T100
⑩

⑨
①

②

③

③

③

④

④

④

⑥

⑦

⑥

