77420 - 13/107 -

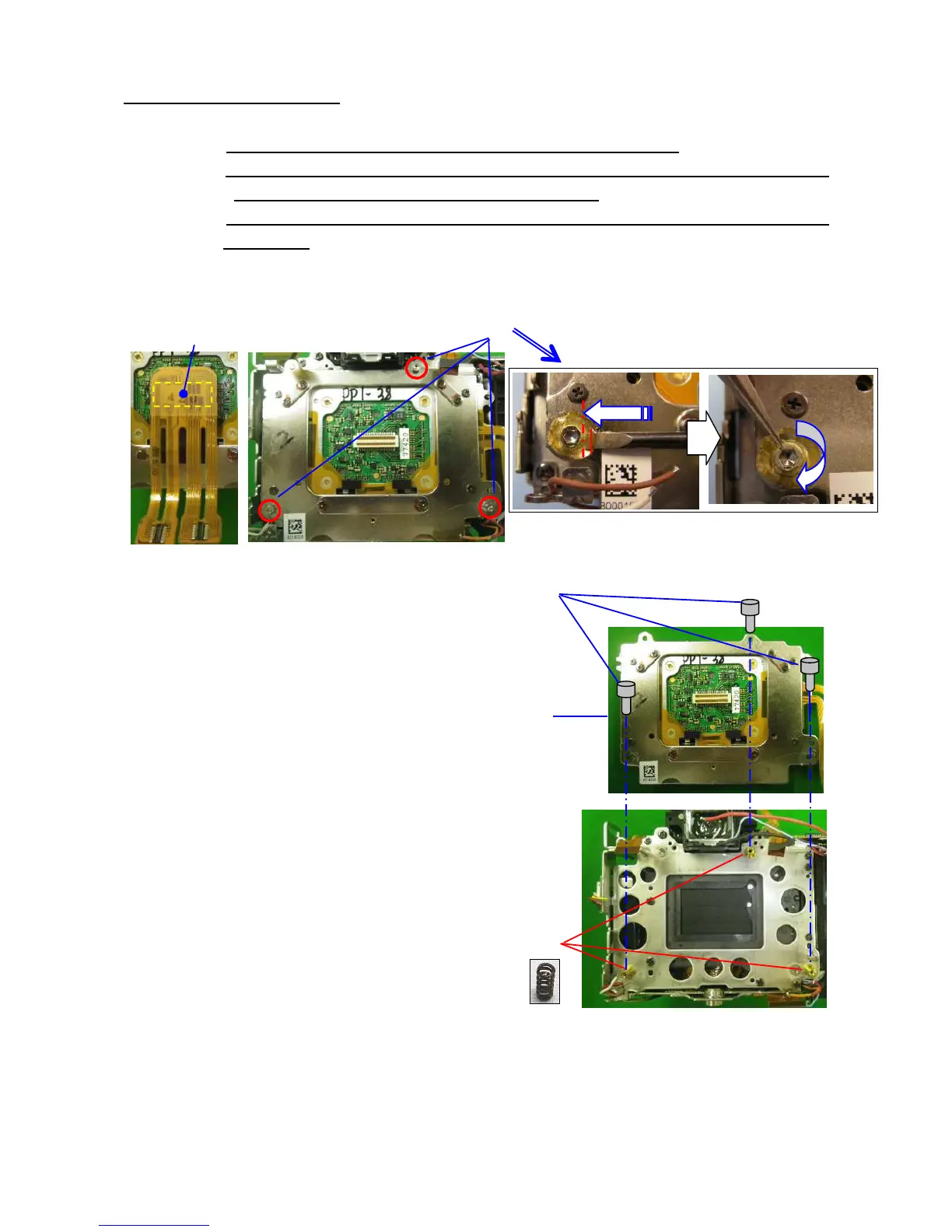

6. Removing 0-C000 (SR block)
[Requires equipment] Hexagon wrench 1.5mm
[CAUTION 1] Pay attention, there is powerful magnet is carried in the SR block.
[CAUTION 2] Since performance can be damaged, the SR block cannot be disassembled and also
don’t apply the external pressure to a movable part.
[CAUTION 3] The flex from SR block should be taken care, otherwise it will affect the performance of
SR function.
①Disconnect T640 with care. (Plug-in) *Do not damage on T640.
②Remove the glue with using tools. (3 Points) --- Peel off part of glue by tool then turn screw.
③A31 Adjusting screws x3 by using Hexagon wrench 1.5mm.
④0-C000 --- Do not scratch on surface of sensor.
⑤A22 Coil springs x3.
①
To Next Page
