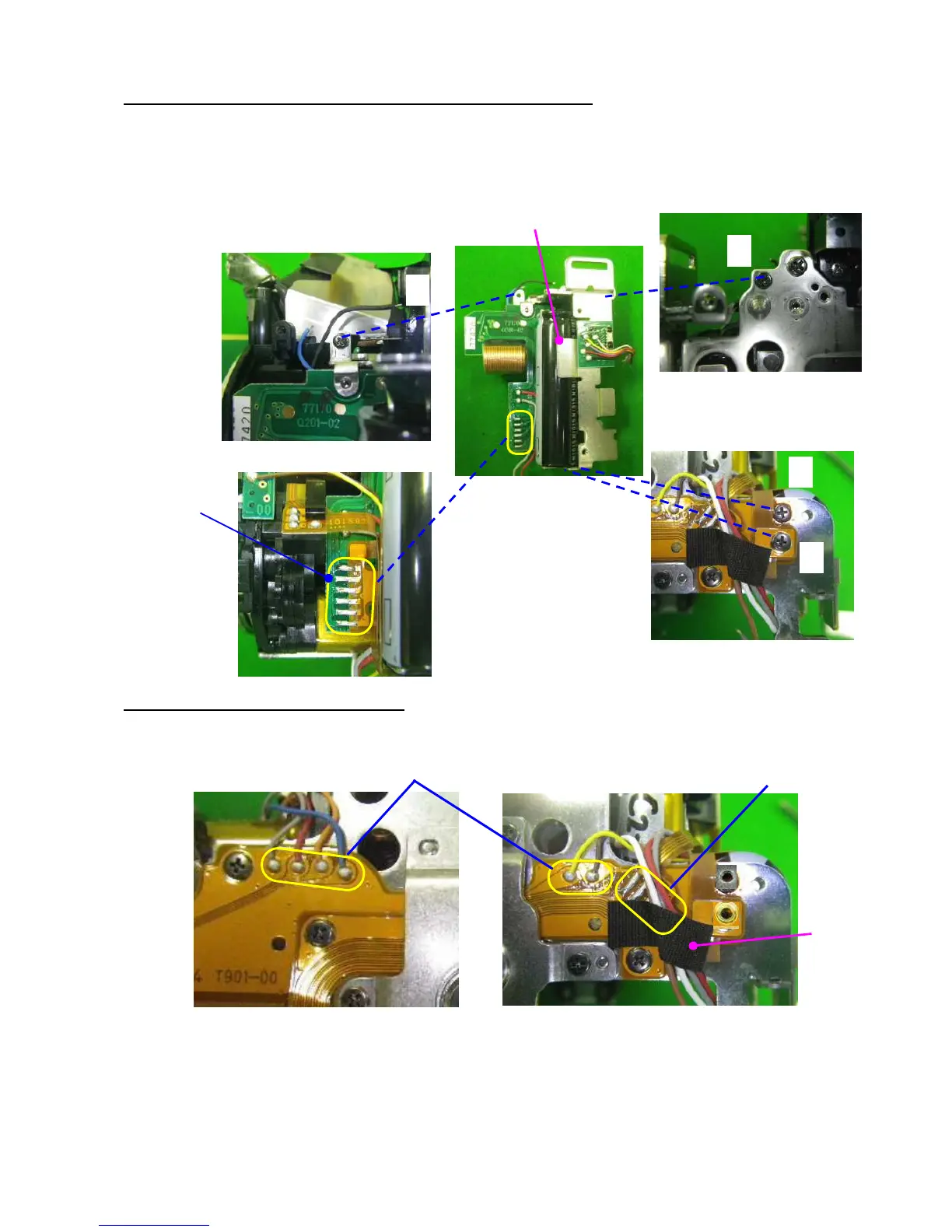

10. Removing A4,Q200 (Right front plate, Strobe circuit block)
①Unscrew TY-CNL-D1.7x4.0
②Unscrew CNL-D1.7x2.5
③Unscrew CNL-D 1.7x1.6
④Unscrew CNL-D 1.7x2.2
⑤Unsolder flex 6 lands
⑥Q200
11. Unsolder lead wires (Bottom side)
①Peel off BT
②Unsolder lead wires x6
③Unsolder flex 4 lands
②
①
③
⑤
①
③
②
④
⑥
