77420 - 17/107 -

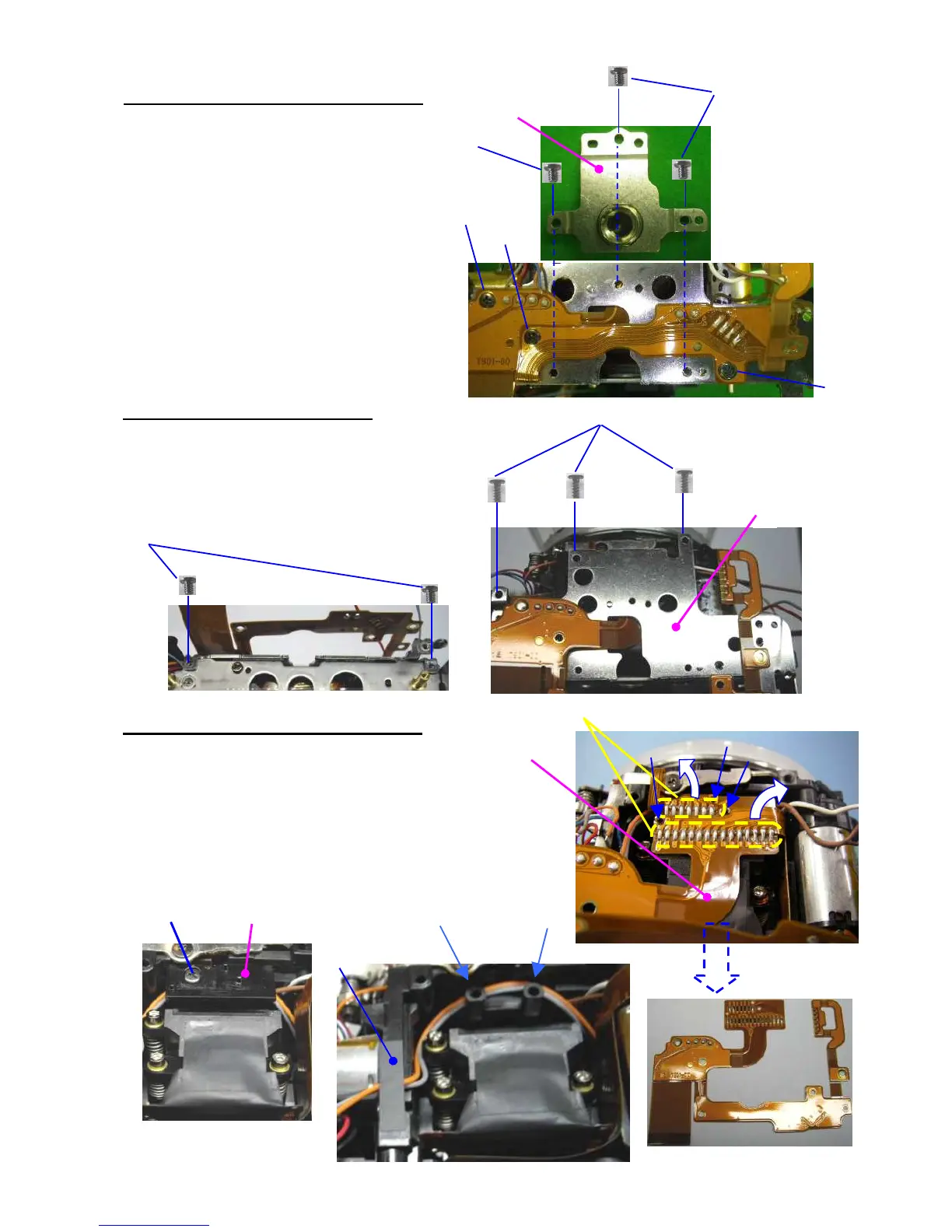

12. Removing 0-A51 (Tripod plate assy.)
①Unscrew CNL-D1.7x2.2 x3
②0-A51
③Unscrew CNL-D1.7x1.6 x3
13．Removing A3 (Bottom plate)
①Unscrew CNL-D1.7x2.5 x2
②Unscrew TY-CNL-D1.7x4.0 x3
③A3
14．Removing T901 (Lower flex board)
①Unsolder flex 22 lands (T301, M100)
②T901
③Unscrew TY-CNL-D1.7x3.5
④A141
⑤X58
To Next Page
