77420 - 26/107 -

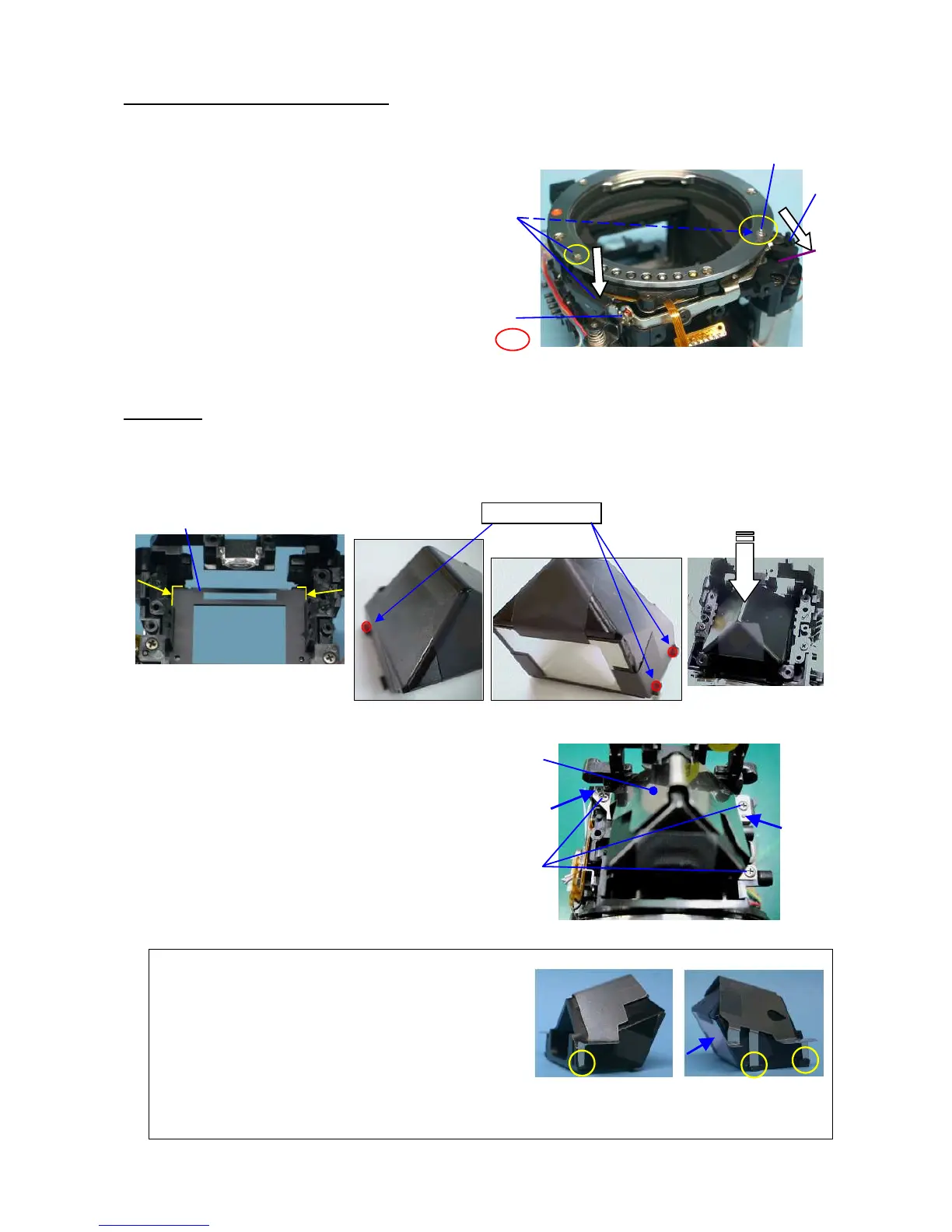

9. [Adjustment] AF Joint stroke.
[Required equipment] Vernier calipers
①Set the AF lever (0-A115) to the AF.C position.
②AF coupler (0-S300) must be projected from the mount
surface by 1.2mm or more.
③When the mount lock pin comes to the mount surface
with pressing the mount lock lever, the AF coupler
must not be projected out of the mount surface.
④Adjust 0-A121 by turning an eccentric screw,
and apply the screw lock.
10. 0-L101
[CAUTION] Confirm there is neither dust nor scratch on 0-L101
① M3
② 0-L101 --- Apply Super X (black) to three places.
③ M9 (M12 x2)
[CAUTION] Confirm that three legs are not bent
④ TY-CNL-D1.7x3.0 (x3)
[Note of Disassembly]
1. Three screws which hold M9 (Penta cover)
are removed.
2. The glue between M9, and three leg tips and
Penta sheets is removed, and is removed
together with penta mirror.
[CAUTION] Confirm there is neither scratch on front of pentamirror.
①
To Next Page
