11. L2

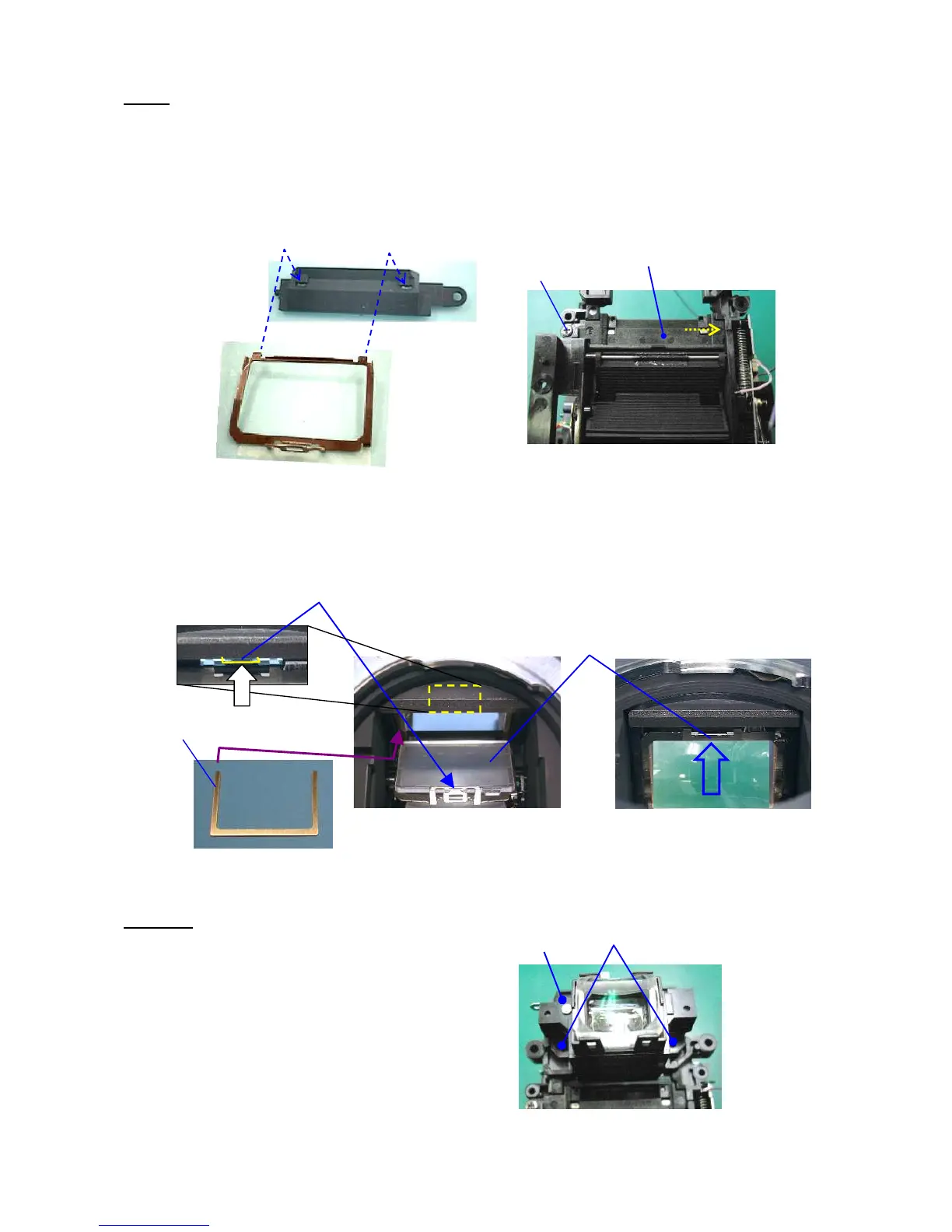

[CAUTION] Confirm there is neither dust nor scratch on L2.
① Install M21 to M4.
② Install ① to front housing block with avoiding scratch on mirror.
(M21 --- In first, put positioning post in the Front housing block.)
③ TY-CNL-D1.7x3.5
④Unlock of M4.
⑤M22 --- In the case of temporary adjustment, using with the M22-010E (0.35)
⑥Put the focusing screen (L2) on the frame and then push it back until it locks in place.
12. M301
① Eyepiece (M301, L7 and other)
② TY-CNL-D1.7x4.0 (x2)
①
To Next Page
